Spinneret Web Server

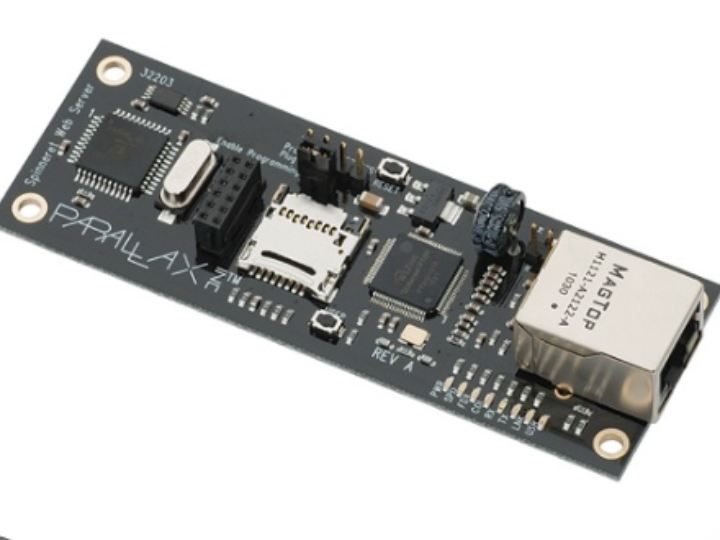

The Spinneret Web Server combines the Parallax Propeller microcontroller with the WIZnet W5100 Ethernet controller.

Aimee0

Published August 05, 2024

120 UCC

25 WCC

29 VAR

Original source (new tab)

Spinneret Web Server

Components

Hardware components
W5100

WIZnet - W5100

x 1

Project description

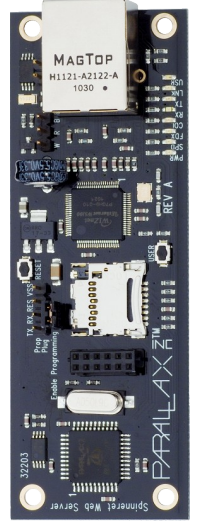

Features Propeller microcontroller W5100 MicroSD card socket RTC controller with backup capacitor Specifications Power requirements : 3.0 to 3.6 or 4 to 9 VDC, 175mA 10BaseT/100BaseTX Ethernet 3.3 to 5 volt asynchronous serial Operating temperature : -40 to +85 Β°C Description The Spinneret Web Server combines the Parallax Propeller microcontroller with the WIZnet W5100 Ethernet controller for cost-effective, low-power embedded Ethernet applications. It features a multicore architecture and hardware Ethernet stack for enhanced parallelism and data throughput. Despite its small size, it…
