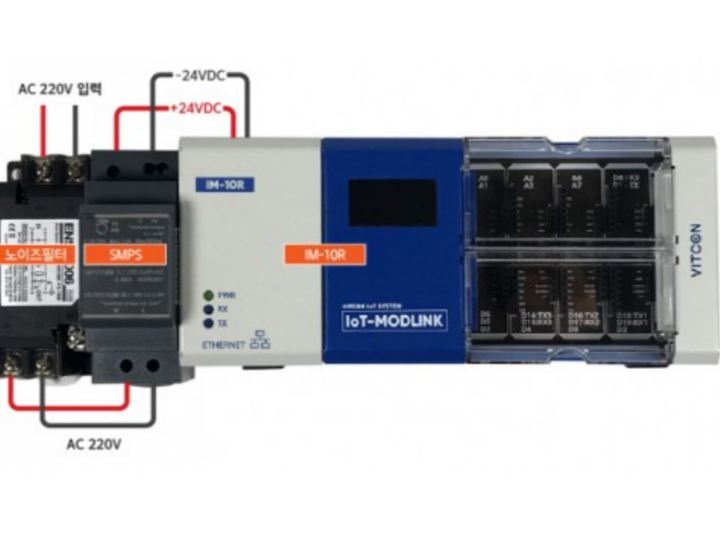

VITCON IM-10R

Serial type ETHERNET communication module.
adopted DC-DC convertor to supply input +24VDC, output +5VDC DC-DC

WIZnet

Published October 31, 2022 · © MIT license (MIT)

Original author: VITCON · South KoreaOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

Software Apps and online services

Arduino - Arduino IDE

x 1

WIZnet parts

W5500 Datasheet

Project description

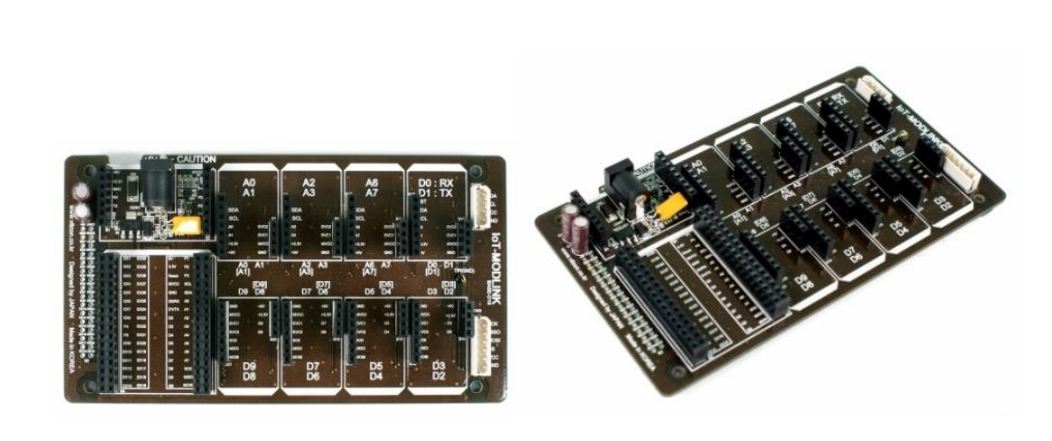

Module Spec. - Power Supply input voltage : 24VDC - Power Supply output voltage : 5VDC / 2A - Ethernet controller : W5500 - Connection speed : 10/100 Mbps - TCP, UDP - Connection with Arduino on SPI port - Operating ambient temperature: -20 ~ +50℃ Base Baord

Keep reading with a free account

Guests can read 15 projects per visit. Log in or create a free account to read the full description, open the documents and join the comments.
