Arduino W5500 Smart Factory Monitor for ThingsBoard
Two Arduino UNO nodes use W5500 Ethernet to send factory sensor data to ThingsBoard over HTTP.
0
Components
Hardware components
WIZnet - W5500
x 1
Arduino - Arduino UNO
x 1
Adafruit - DHT22 temperature-humidity sensor
x 1
Arduino - Arduino IDE
x 1
Project description

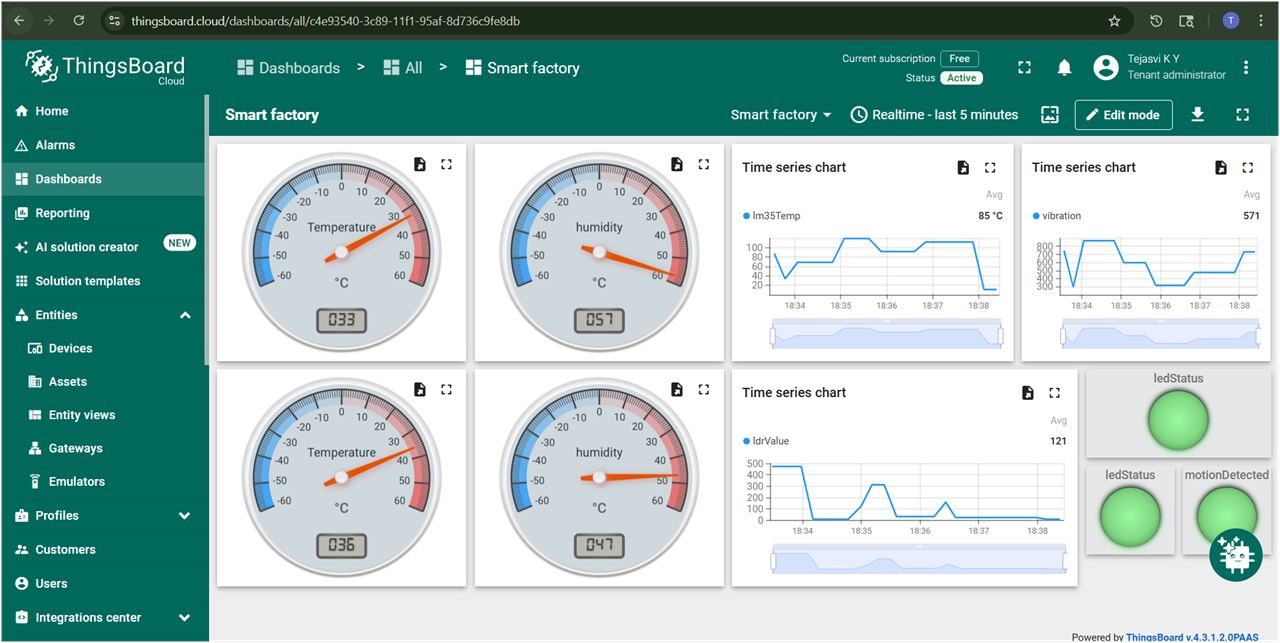

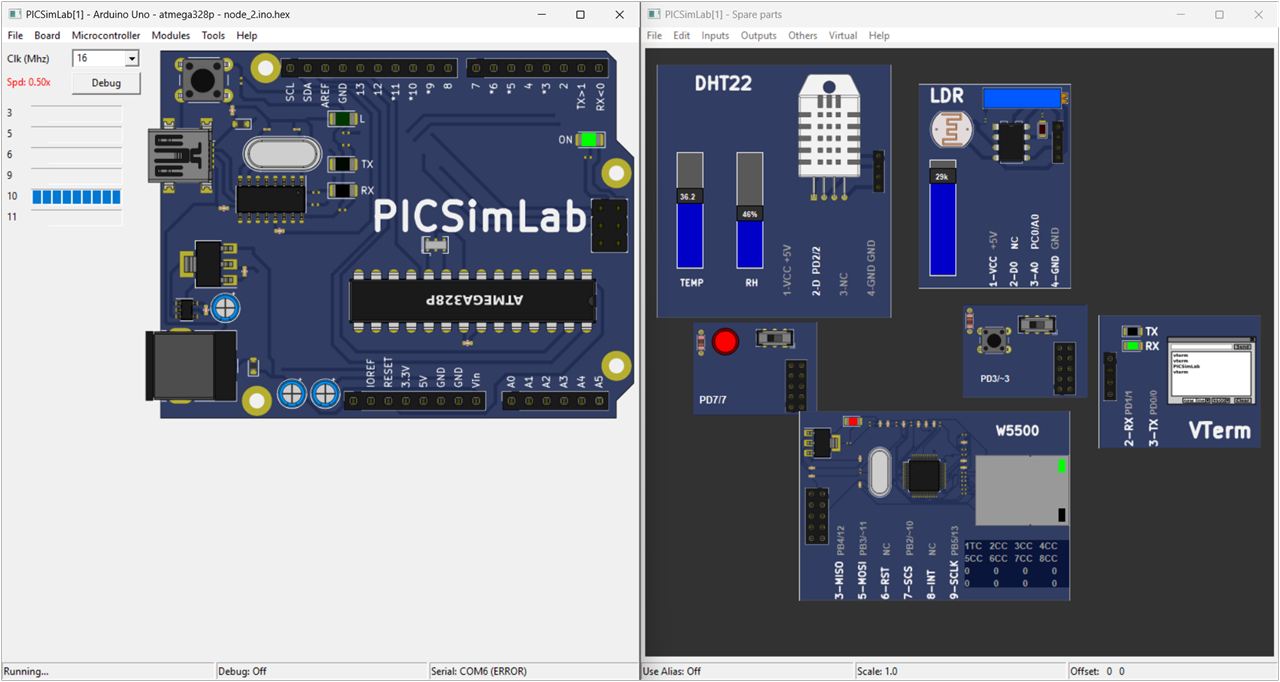

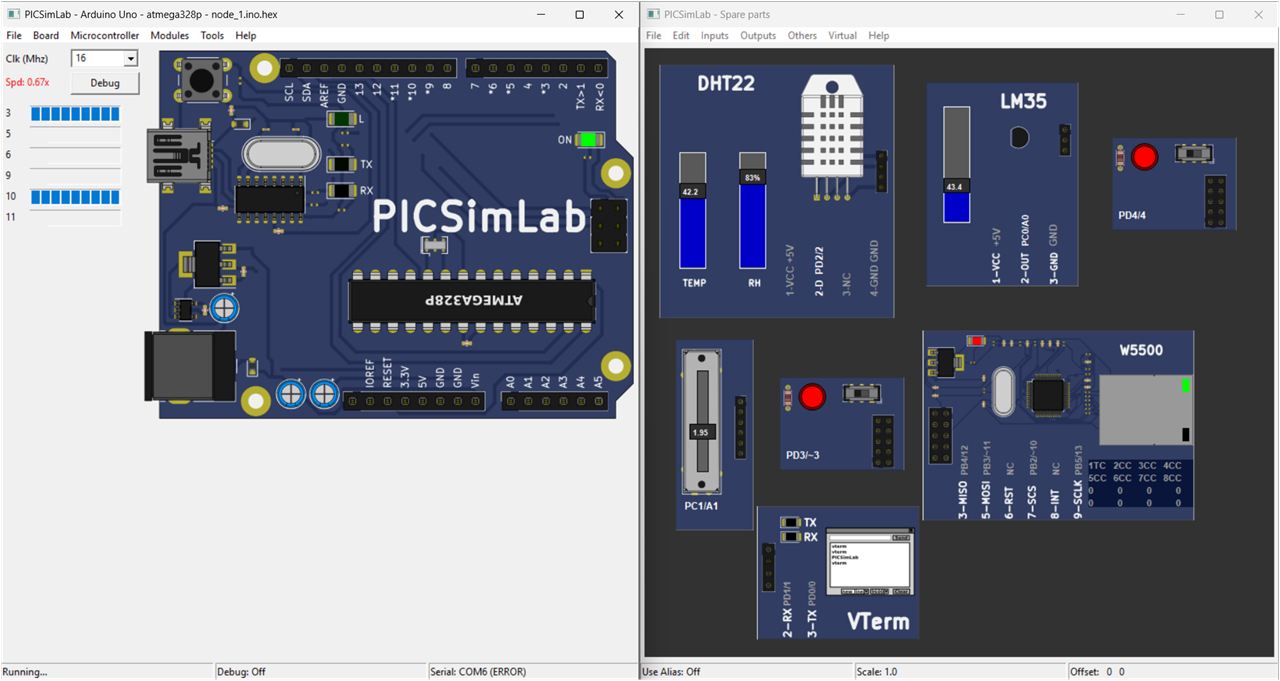

Two Arduino Ethernet Nodes for Factory Telemetry Tejaswhi K Y's Smart Factory Monitoring System is a recent educational IoT project that uses two Arduino UNO nodes and WIZnet W5500 Ethernet modules to send factory sensor data to ThingsBoard Cloud. Node 1 represents a production line monitor. Node 2 represents a warehouse monitor. Each node reads local sensors, builds a JSON telemetry payload, and sends it through wired Ethernet using HTTP. The value of the project is its clarity. It does not try to hide the network path behind a large framework. The Arduino sketch shows the basic flow from…
