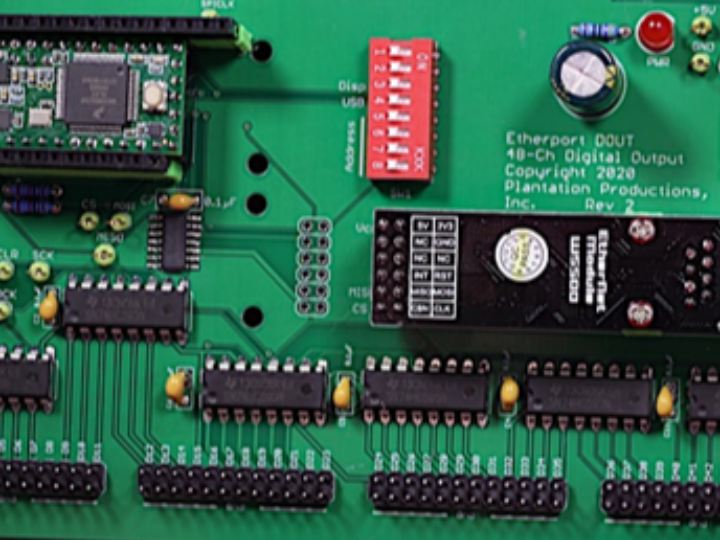

EtherPort Data Acquisition & Control System EtherPort DOUT 48-Channel
with Robotdyn W5500 Ethernet module
4
Project description
The EtherPort DOUT board is a 48-channel digital input board. The EtherPort DOUT offers the following features:
- Open Source/Open Hardware design (Creative Commons 4.0 license)
- Single 5V power supply
- LED indicates when power is applied
- 48 independent output bits (TTL 5v outputs)
- 48 output pins divided up into 4 banks of 12 bits each
- Optional DIN rail brackets allow installation on 35mm DIN rails
- DIN rail brackets are available in .STL format for 3D-printing
- Full documentation including System Requirements Specifications (SyRS), Hardware Requirements Specifications (HRS), Hardware Inspection list (HI), Hardware Test Cases (HTC), Hardware Test Procedures (HTP), Hardware Design Description (HDD), and (reverse) Traceability Matrix (RTM) are available for the EtherPort system, including this board.
Bill Of Materials
Bill of Materials (BOM) for the EtherPort DOUT board:
- (1) 5mm LED
- (1) 470 Ω 1/4-watt 1% resistor
- (2) 10 kΩ 1/4-watt 1% resistor
- (7) 0.1 µF decoupling capacitors
- (1) 1000 µF electrolytic capacitor
- (1) 2-pin screw terminal (5mm/0.2" centers) or (1) 5.5mm Barrel Jack for power
- (4) 24-pin (2x12) male headers (ribbon cable connectors)
- (1) 74HC125 4-ch tri-state buffer (SOIC-14)
- (6) 74HC595 serial-in parallel-out shift registers (DIP)
- (1) 8-position DIP switch
- (1) 1x12 female header with long pins (Feather bus)
- (1) 1x16 female header with long pins (Feather bus)
- (1) Teensy 3.2 with (full) headers
- (1) EtherPort PCB
- (1) Adafruit Ethernet Featherwing -or- Robotdyn W5500 Ethernet module (if Ethernet connection is desired)
- (1) 2x6 female header with long pins (if using Robotdyn W5500 Ethernet module)
- Optional: (10) test pins
- Optional: (1) set of female headers for use as a Teensy socket
- Optional: one set of horizontal 35mm DIN rail mounts for EtherPort/DAQ boards
- Optional: one EtherPort DOUT vertical 35mm DIN rail mount
- Optional: 1 set of 3D-printed Featherwing shrouds for the Featherwing headers (STL files here and here)
PCB Availability and Files
Note: If you only want a few EtherPort DOUT PCBs, contact Plantation Productions (randy@plantation-productions.com) to see if there are any in stock. Bare boards are $20 each plus shipping; fully assembled and tested boards are $499 each. If you need more than a couple PCBs and you're not in a huge hurry, it costs about $50 (plus about 4-6 weeks) plus shipping to have a set of 10 manufactured and shipped to you from China. I use Seeed Studio Fusion PCD service (https://www.seeedstudio.com/fusion.html). The EtherPort DOUT PCBs are two-layer boards.
| Description | Link |
|---|---|
| Gerber files for PCB (provide these files to Seeed Studio or your personal PCB manufacturer) | EtherPort DOUT Gerber Files for PCB |
| Eagle schematic capture and PCB layout files. Use these if you want to modify or enhance the EtherPort DOUT design, or re-layout the PCB using Eagle | EtherPort DOUT Eagle files (Schematic and board layout) |
| On-line schematic (PDF format) | EtherPort DOUT Schematic (PDF) |
| PP Standard DIN rails (STL format for 3D printer) | PP Standard DIN Rail Brackets 3D printer files |
| Adjustable DIN rail bracket (STL format for 3D printer) | Adjustable DIN Rail Bracket 3D printer file |
| Vertical DIN rail bracket (STL format for 3D printer) | EtherPort DOUT Vertical DIN Rail Bracket |
