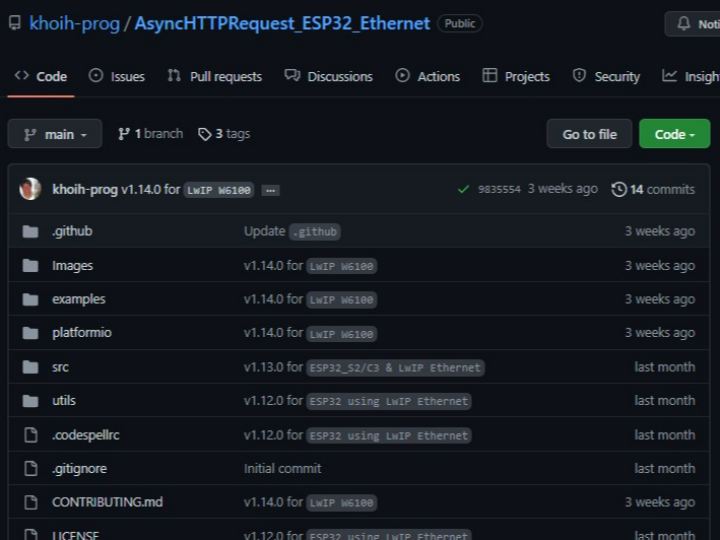

W6100 khoih-prog / AsyncHTTPRequest_ESP32_Ethernet

Providing a subset of HTTP.
Relying on AsyncTCP
Methods similar in format and usage to XmlHTTPrequest in Javascript.

WIZnet

Published February 01, 2023

Original author: khoih prog · CanadaOriginal source (new tab)

2

Components

Hardware components

WIZnet - W6100

x 1

Project description

Supports

GET, POST, PUT, PATCH, DELETE and HEAD
Request and response headers
Chunked response
Single String response for short (<~5K) responses (heap permitting).
Optional onData callback.
Optional onReadyStatechange callback.W6100

Example AsyncHTTPRequest_ESP32_SC_W5500

AsyncHTTPRequest_ESP32_Ethernet/examples/ESP32_SC_W5500/AsyncHTTPRequest_ESP32_SC_W5500/AsyncHTTPRequest_ESP32_SC_W5500.ino

Lines 43 to 284 in 3272f5f

	#if !( defined(ESP32) )
	#error This code is intended to run on the ESP32 platform! Please check your Tools->Board setting.
	#endif

	// Level from 0-4
	#define ASYNC_HTTP_DEBUG_PORT Serial
	#define _ASYNC_HTTP_LOGLEVEL_ 1
	#define _ETHERNET_WEBSERVER_LOGLEVEL_ 1

	// 300s = 5 minutes to not flooding
	#define HTTP_REQUEST_INTERVAL 60 //300

	// 10s
	#define HEARTBEAT_INTERVAL 10

	//////////////////////////////////////////////////////////

	// For ESP32-S3
	// Optional values to override default settings
	//#define ETH_SPI_HOST SPI2_HOST
	//#define SPI_CLOCK_MHZ 8

	// Must connect INT to GPIOxx or not working
	//#define INT_GPIO 4

	//#define MISO_GPIO 13
	//#define MOSI_GPIO 11
	//#define SCK_GPIO 12
	//#define CS_GPIO 10

	// For ESP32_C3
	// Optional values to override default settings
	// Don't change unless you know what you're doing
	//#define ETH_SPI_HOST SPI2_HOST
	//#define SPI_CLOCK_MHZ 8

	// Must connect INT to GPIOxx or not working
	//#define INT_GPIO 10

	//#define MISO_GPIO 5
	//#define MOSI_GPIO 6
	//#define SCK_GPIO 4
	//#define CS_GPIO 7

	//////////////////////////////////////////////////////////

	#include <WebServer_ESP32_SC_W5500.h> // https://github.com/khoih-prog/WebServer_ESP32_SC_W5500

	#define ASYNC_HTTP_REQUEST_ESP32_ETHERNET_VERSION_MIN_TARGET "AsyncHTTPRequest_ESP32_Ethernet v1.14.0"
	#define ASYNC_HTTP_REQUEST_ESP32_ETHERNET_VERSION_MIN 1014000

	// Uncomment for certain HTTP site to optimize
	//#define NOT_SEND_HEADER_AFTER_CONNECTED true

	// To be included only in main(), .ino with setup() to avoid `Multiple Definitions` Linker Error
	#include <AsyncHTTPRequest_ESP32_Ethernet.h> // https://github.com/khoih-prog/AsyncHTTPRequest_ESP32_Ethernet

	#include <Ticker.h>

	AsyncHTTPRequest request;
	Ticker ticker;
	Ticker ticker1;

	/////////////////////////////////////////////

	// Enter a MAC address and IP address for your controller below.
	#define NUMBER_OF_MAC 20

	byte mac[][NUMBER_OF_MAC] =
	{
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x01 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x02 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x03 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x04 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x05 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x06 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x07 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x08 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x09 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x0A },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x0B },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x0C },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x0D },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x0E },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x0F },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x10 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x11 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x12 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x13 },
	{ 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x14 },
	};

	// Select the IP address according to your local network
	IPAddress myIP(192, 168, 2, 232);
	IPAddress myGW(192, 168, 2, 1);
	IPAddress mySN(255, 255, 255, 0);

	// Google DNS Server IP
	IPAddress myDNS(8, 8, 8, 8);

	/////////////////////////////////////////////

	void heartBeatPrint(void)
	{
	static int num = 1;

	if (ESP32_W5500_isConnected())
	Serial.print(F("H")); // H means connected
	else
	Serial.print(F("F")); // F means not connected

	if (num == 80)
	{
	Serial.println();
	num = 1;
	}
	else if (num++ % 10 == 0)
	{
	Serial.print(F(" "));
	}
	}

	void sendRequest()
	{
	static bool requestOpenResult;

	if (request.readyState() == readyStateUnsent \|\| request.readyState() == readyStateDone)
	{
	//requestOpenResult = request.open("GET", "http://worldtimeapi.org/api/timezone/Europe/London.txt");
	requestOpenResult = request.open("GET", "http://worldtimeapi.org/api/timezone/America/Toronto.txt");

	if (requestOpenResult)
	{
	// Only send() if open() returns true, or crash
	request.send();
	}
	else
	{
	Serial.println("Can't send bad request");
	}
	}
	else
	{
	Serial.println("Can't send request");
	}
	}

	void requestCB(void optParm, AsyncHTTPRequest request, int readyState)
	{
	(void) optParm;

	if (readyState == readyStateDone)
	{
	AHTTP_LOGDEBUG(F("\n**************************************"));
	AHTTP_LOGDEBUG1(F("Response Code = "), request->responseHTTPString());

	if (request->responseHTTPcode() == 200)
	{
	Serial.println(F("\n**************************************"));
	Serial.println(request->responseText());
	Serial.println(F("**************************************"));
	}
	}
	}

	void setup()
	{
	// put your setup code here, to run once:
	Serial.begin(115200);

	while (!Serial && millis() < 5000);

	delay(500);

	Serial.print("\nStart AsyncHTTPRequest_ESP32_SC_W5500 on ");
	Serial.print(ARDUINO_BOARD);
	Serial.print(" with ");
	Serial.println(SHIELD_TYPE);
	Serial.println(WEBSERVER_ESP32_SC_W5500_VERSION);
	Serial.println(ASYNC_HTTP_REQUEST_ESP32_ETHERNET_VERSION);

	Serial.setDebugOutput(true);

	#if defined(ASYNC_HTTP_REQUEST_ESP32_ETHERNET_VERSION_MIN)

	if (ASYNC_HTTP_REQUEST_ESP32_ETHERNET_VERSION_INT < ASYNC_HTTP_REQUEST_ESP32_ETHERNET_VERSION_MIN)
	{
	Serial.print("Warning. Must use this example on Version equal or later than : ");
	Serial.println(ASYNC_HTTP_REQUEST_ESP32_ETHERNET_VERSION_MIN_TARGET);
	}

	#endif

	AHTTP_LOGWARN(F("Default SPI pinout:"));
	AHTTP_LOGWARN1(F("SPI_HOST:"), ETH_SPI_HOST);
	AHTTP_LOGWARN1(F("MOSI:"), MOSI_GPIO);
	AHTTP_LOGWARN1(F("MISO:"), MISO_GPIO);
	AHTTP_LOGWARN1(F("SCK:"), SCK_GPIO);
	AHTTP_LOGWARN1(F("CS:"), CS_GPIO);
	AHTTP_LOGWARN1(F("INT:"), INT_GPIO);
	AHTTP_LOGWARN1(F("SPI Clock (MHz):"), SPI_CLOCK_MHZ);
	AHTTP_LOGWARN(F("========================="));

	///////////////////////////////////

	// To be called before ETH.begin()
	ESP32_W5500_onEvent();

	// start the ethernet connection and the server:
	// Use DHCP dynamic IP and random mac
	uint16_t index = millis() % NUMBER_OF_MAC;

	//bool begin(int MISO_GPIO, int MOSI_GPIO, int SCLK_GPIO, int CS_GPIO, int INT_GPIO, int SPI_CLOCK_MHZ,
	// int SPI_HOST, uint8_t *W5500_Mac = W5500_Default_Mac);
	//ETH.begin( MISO_GPIO, MOSI_GPIO, SCK_GPIO, CS_GPIO, INT_GPIO, SPI_CLOCK_MHZ, ETH_SPI_HOST );
	ETH.begin( MISO_GPIO, MOSI_GPIO, SCK_GPIO, CS_GPIO, INT_GPIO, SPI_CLOCK_MHZ, ETH_SPI_HOST, mac[index] );

	// Static IP, leave without this line to get IP via DHCP
	//bool config(IPAddress local_ip, IPAddress gateway, IPAddress subnet, IPAddress dns1 = 0, IPAddress dns2 = 0);
	//ETH.config(myIP, myGW, mySN, myDNS);

	ESP32_W5500_waitForConnect();

	///////////////////////////////////

	Serial.print(F("\nHTTP WebClient is @ IP : "));
	Serial.println(ETH.localIP());

	request.setDebug(false);

	request.onReadyStateChange(requestCB);
	ticker.attach(HTTP_REQUEST_INTERVAL, sendRequest);

	ticker1.attach(HEARTBEAT_INTERVAL, heartBeatPrint);

	// Send first request now
	sendRequest();
	}

	void loop()
	{
	}

FULL_DUPLEX, 100Mbps

W5500

FULL_DUPLEX, 100Mbps
