What Does ESPHome Support for W6100 and W6300 Ethernet Add on RP2040 and RP2350?
Native ethernet: config for WIZnet W6100 SPI and W6300 PIO QSPI on RP2040/RP2350, merged by Home Assistant developer bdraco and shipped in ESPHome 2026.4.0.
0
Components
Hardware components
WIZnet - W6100
New ESPHome ethernet type since 2026.4.0, driven over remappable 4-wire SPI on the RP2040-based W6100-EVB-Pico; runs in MACRAW mode under the arduino-pico lwIP stack.

WIZnet - W6300
New ESPHome ethernet type since 2026.4.0, driven over PIO QSPI with fixed pins on the RP2350-based W6300-EVB-Pico2; runs in MACRAW mode under the arduino-pico lwIP stack.
Project description

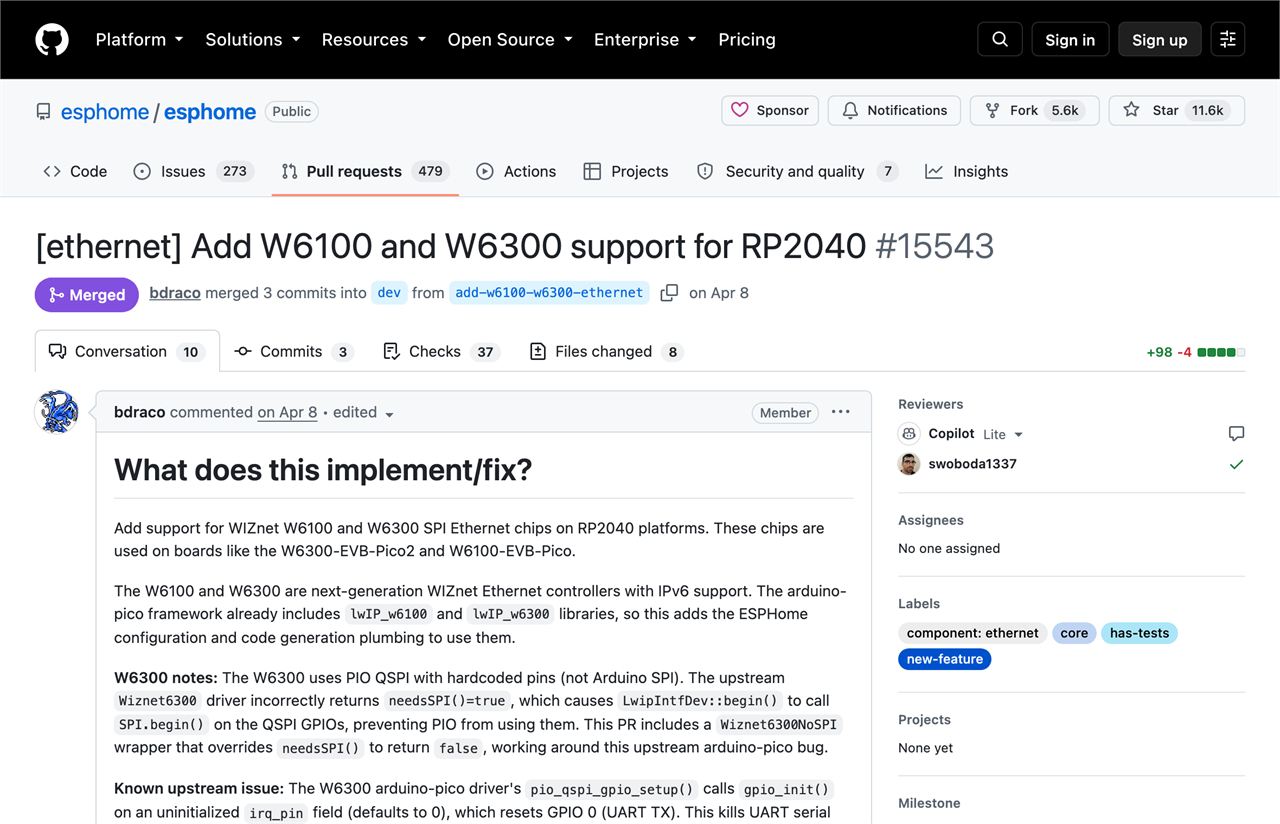

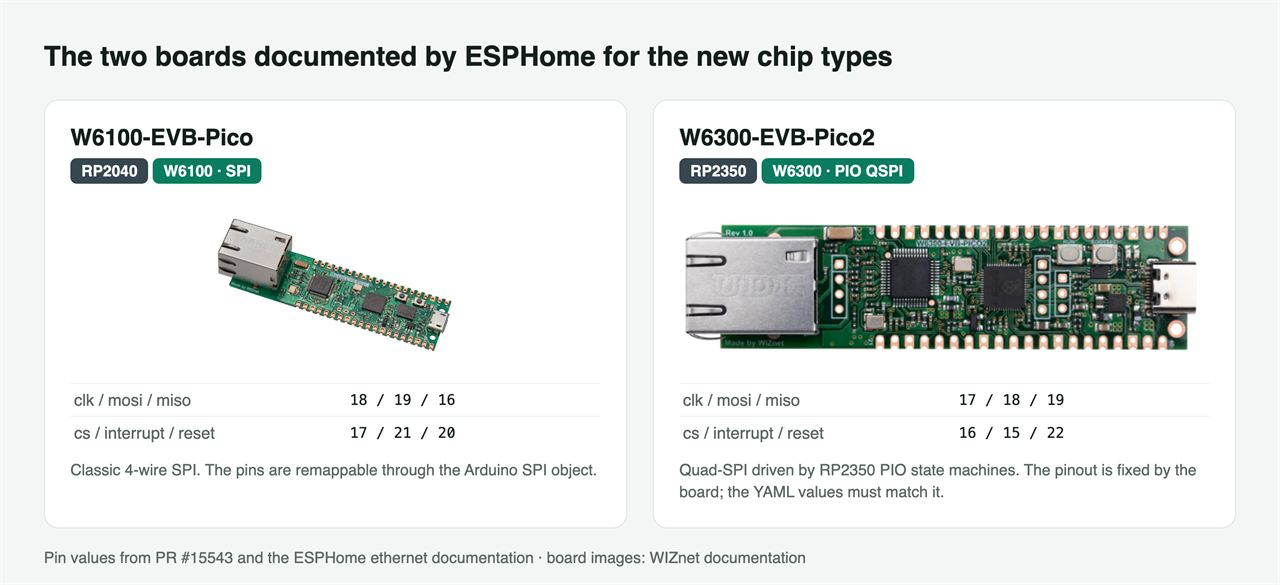

W6100 and W6300 Become Native ESPHome Ethernet Types J. Nick Koston, known on GitHub as bdraco, is a Home Assistant core developer based in Houston, Texas, with 517 public repositories and 2,087 followers as of 2026-08-28. On 2026-04-07 he opened pull request #15543 against the ESPHome firmware project, and it was merged the next day: the WIZnet W6100 and W6300 became configurable ethernet types on Raspberry Pi RP2040 and RP2350 boards, with no custom component and no external driver work. The two chips and their documented target boards. Board image: WIZnet documentation. Generated…
