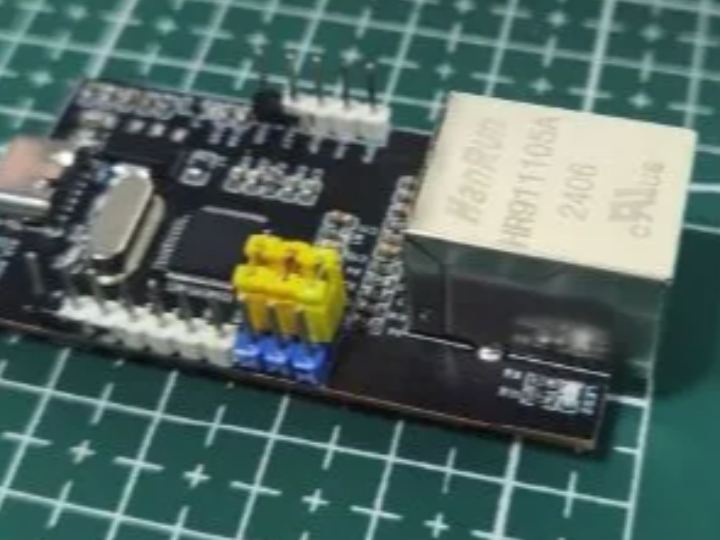

W5500 Ethernet Module
0
A network port module based on the W5500 design. Verified to work. On my end, all three mode interfaces are pulled high.
