Arduino nano + W5500 development issues
This blog article introduces the development issues of Arduino nano using W5500 module.
4
Components
Hardware components Software Apps and online servicesProject description

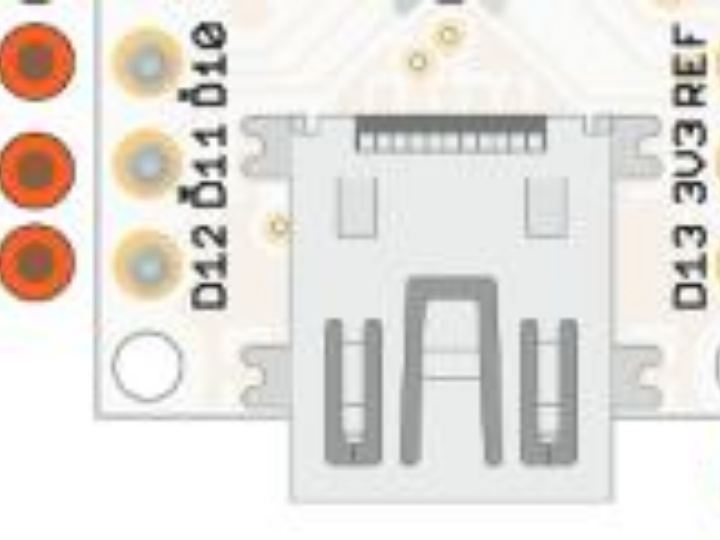

引言 最近接触到Arduino模块的开发,并且模块的主要使用场景是机房,因此选择使用以太网W5500模组使得数据能够通过网线稳定而快速地将数据上传到外网。在开发的过程中发现,Arduino模块的库示例代码配套使用的是W5100模块。 网上的教程依然五花八门,有的说W5500的API与W5100的是一样的,也有的说官方WIZ550io与国内W5500模组的设计区别,导致W5500模组不能自动写入MAC地址,以驱动其获取IP与联网。在这里,我分享一下我的项目经验,以供相关领域同志参考。 模块清单 1、Arduino Nano模块 2、泥人W5500以太网模组 3、网线与数据线 4、路由器 接线介绍 因为Arduino与W5500使用的是快速SPI连接,因此我们首先要知道Arduino-Nano模块的SPI接口以及工作原理: 这里借用一篇详细的博客说明:Arduino-Nano各个接口的博客: Arduino Nano 引脚分配图及定义详解 (图片也是借用的) 因此详细的接线应该为: Arduino W5500 D10 SCS D11 MOSI D12 MISO D13 SCLK 至于INT、RST这两个引脚,要根据自己的需求去接,我这次开发没有用到可以置空 关于VCC的话,建议使用5V供电,个人测试,3V3供电会发现W5500工作不正常 Arduino代码操作…
