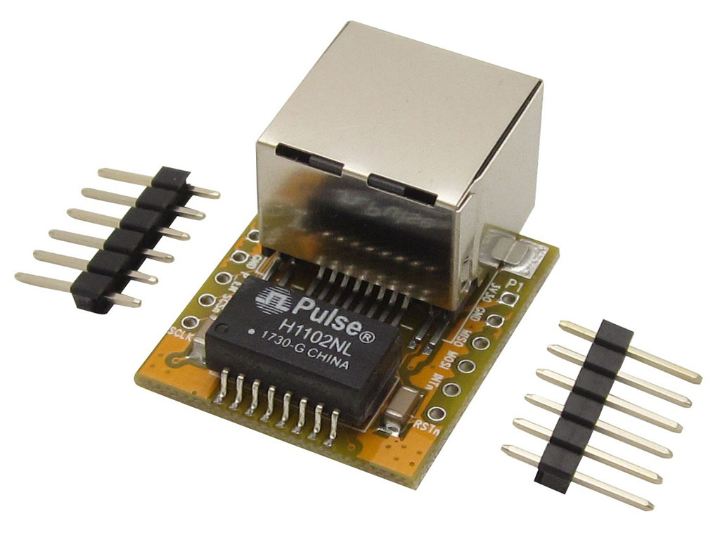

W5500 Nano Ethernet Network Module
W5500 Nano Ethernet Network Module
3
Project description
- Supports following Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Supports 8 independent sockets simultaneously
- Supports Power down mode
- Supports Wake on LAN over UDP
- Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)
- Internal 32Kbytes Memory for Tx/Rx Buffers
- 10BaseT/100BaseTX Ethernet PHY embedded
- Support Auto Negotiation (Full and half duplex, 10 and 100-based)
- Not support IP Fragmentation
- 3.3V operation with 5V I/O signal tolerance
- LED outputs (Full/Half duplex, Link, Speed, Active)
- Module size: 23mm x 26mm
- Power supply: 3.3v or 5v - 12v, When use 3.3V voltage input(P1 PIN1),5v input pin must floating (P2 PIN1).
- SPI clock frequency(MAX): 80M
- Work current(typ): 130mA
- W5500 does not support auto-MDIX feature. Thus, user should use straight-through cables to connect to other switches or routers and crossover cables to connect to devices such as servers, workstations or another W5500. However, user can use either type of cable to connect to other devices with auto-MDIX enabled, and the interface automatically corrects for any incorrect cabling.
- For example, W5500 connect PC, must use crossover cables, PC close auto-MDIX switch to 100MBPS full duplex.
