YD-pyboard netPYB V1.1 STM32F405RG+W5500 Micro+Python

Micro+Python evaluation board : YD-pyboard netPYB V1.1 based on STM32F405RG+W5500

WIZnet

Published February 10, 2023

Original author: 智微远见物联网工作室Original source (new tab)

Project description

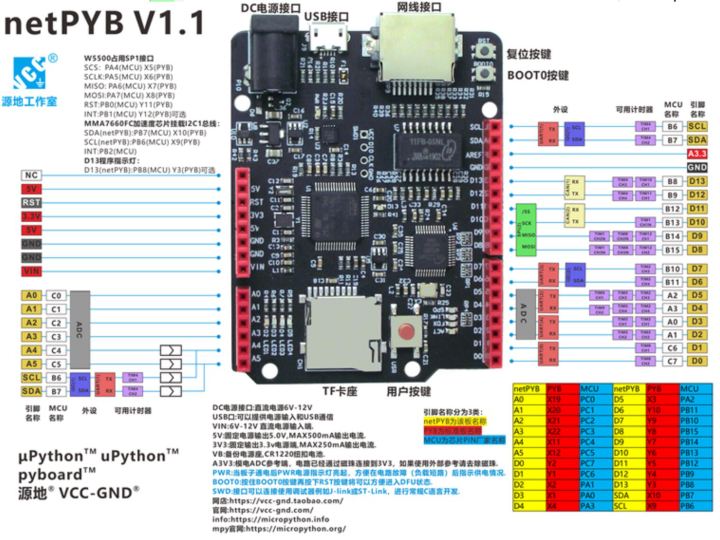

HW: STM32F405RGT6 is minimum HW for standard Micro+Python development W5500 Ethernet interface MM7660 Acceleration chip RTC USB TF interface
