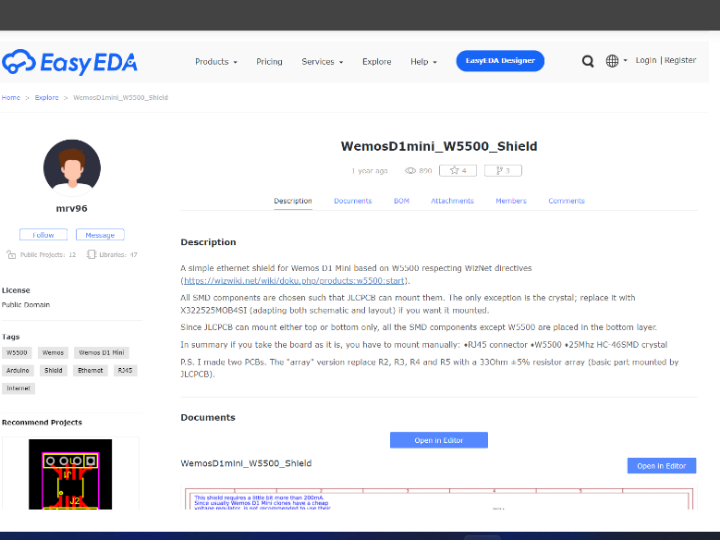

WemosD1mini_W5500_Shield
A simple ethernet shield for Wemos D1 Mini based on W5500 respecting WizNet directives.
2
Project description
DETAILS Original : https://easyeda.com/mrv96/esp8266_enc28j60_shield_copy Description A simple ethernet shield for Wemos D1 Mini based on W5500 respecting WizNet directives (https://wizwiki.net/wiki/doku.php/products:w5500:start). All SMD components are chosen such that JLCPCB can mount them. The only exception is the crystal; replace it with X322525MOB4SI (adapting both schematic and layout) if you want it mounted. Since JLCPCB can mount either top or bottom only, all the SMD components except W5500 are placed in the bottom layer. In summary if you take the board as it is, you have to mount…
