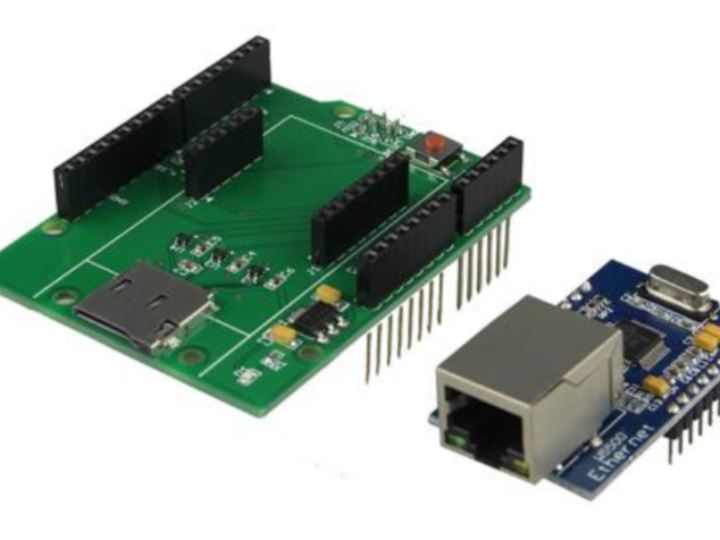

W5500 Ethernet Module / SPI to Ethernet TCP/IP for UNO R3 / MEGA2560

Project description

Specifications Beyond W5100; Features: High-speed SPI interface, easy to connect with any MCU; Support TCP / IP protocols: TCP, UDP, ICMP, IGMP, IPv4, ARP, PPPoE; Built-in 10 / 100Mbps Ethernet Physical Layer; Supports automatic response (full / half duplex mode); Multiple indicator signal output; It supports eight independent ports (Socket) simultaneous connections; 32K bytes of internal memory for TX / RX cache; Support sleep mode and wake from LAN; 3.3V operating voltage, I / O port can bear 5V; Very small 48 Pin LQFP lead-free package; 0.13µm CMOS process; Lower power consumption and…
