IoT W5500 Arduino Ethernet development board
.
3
Project description

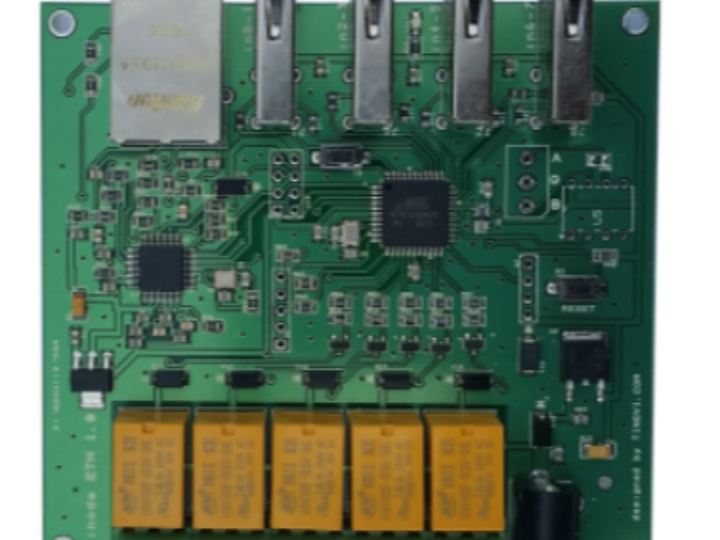

IoT Arduino Ethernet development board based on Atmel ATMEGA644 and WIZnet W5500 with Tinovi.io demo firmware. This development board has everything you need to start your ethernet based IoT project and Ethernet is still most reliable from low-cost connections to the internet today. Tinovi ethernet board has total 8 analog/digital inputs accessible vai 4 connectors 2 inputs each and 5 relay outputs. It is based on ATMEGA644PA-AU MCU and WIZnet W5500 ethernet chip. Inputs have USB-A type connector male socket each having access to 2 ATMEGA644PA-AU analog IO pins (PA0-PA7) and +5V power and…
