FPGA interface board : W5500 + CYPRESS USB2.0 GF interface

Project description

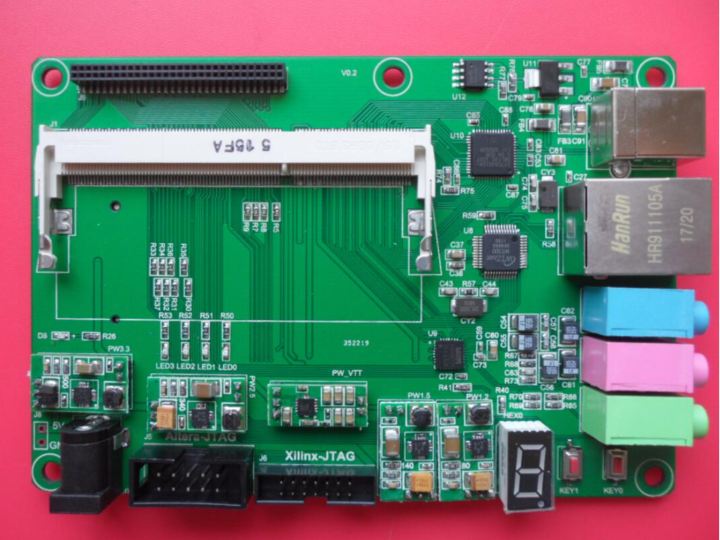

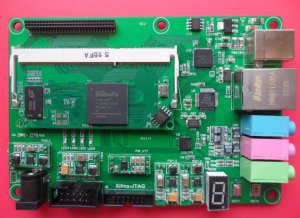

HW: SO-DIMM-204PIN socket TI power module TPS62130,3.3V/2.5V/1.5V/1.2V TI power module TPS51200,DDR refer voltage,current Sink and Source Support Altera and Xilinx standard JTAG interface USB2.0 chip CY7C68013A, support 480Mbps high speed mode, GPIF interface Ethernet chip W5500, support 100Mbps, support TCP/IP/UDP protocol, SPI interface Audio chip WM8731, 24bit ADC/DAC, 96Kbps, IIS interface User IO external socket 2*30PIN 1*SD socket, 1* Nixie tube, 2* press button, 4* LED
