How Does W5500 Fit an AI-Enabled IoT Box Substation?
CN120262698A places W5500 Ethernet beside STM32H743 edge diagnosis, adaptive sensing, wireless failover, and cloud-trained fault models.
0
Components
Hardware components
WIZnet - W5500
x 1

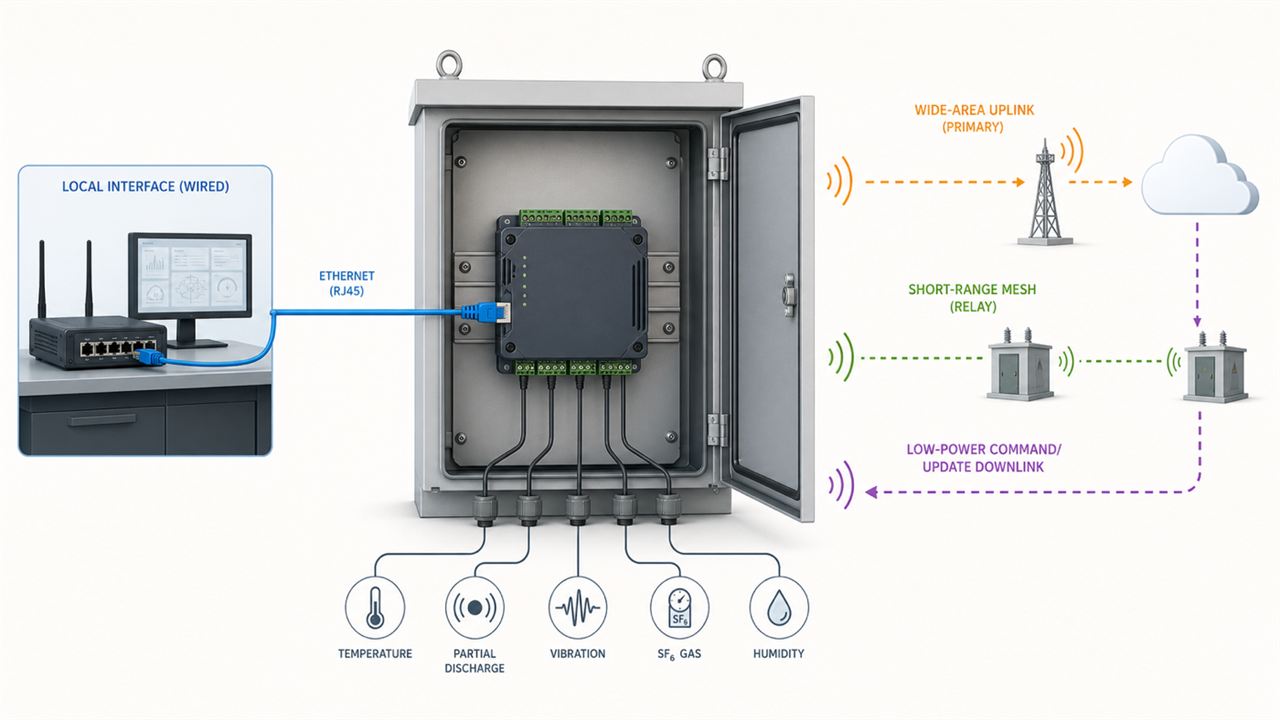

WIZnet W5500 Ethernet controller with RJ45 and stated 100 Mbps support on the patent's STM32H743 edge node.
Project description

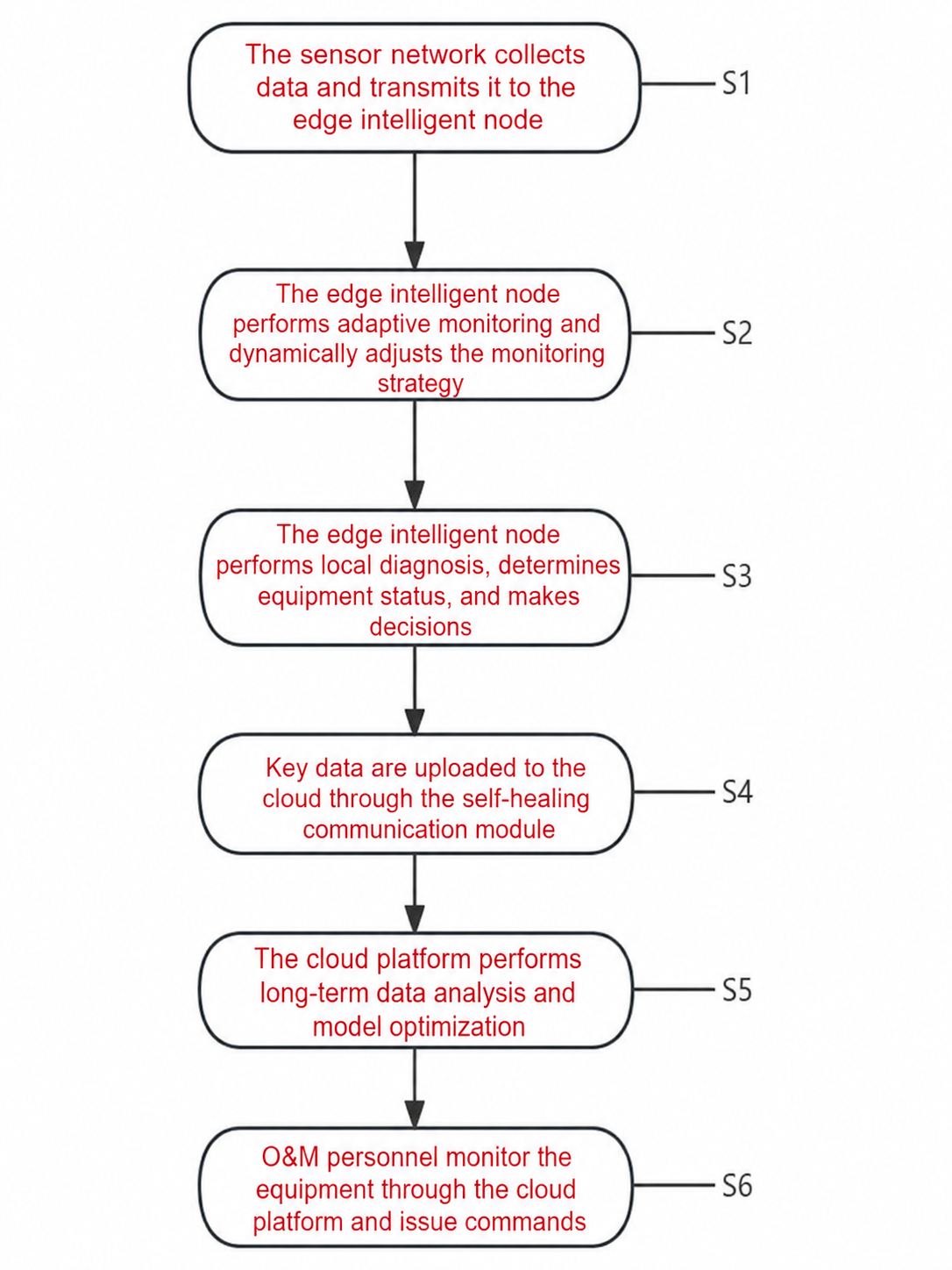

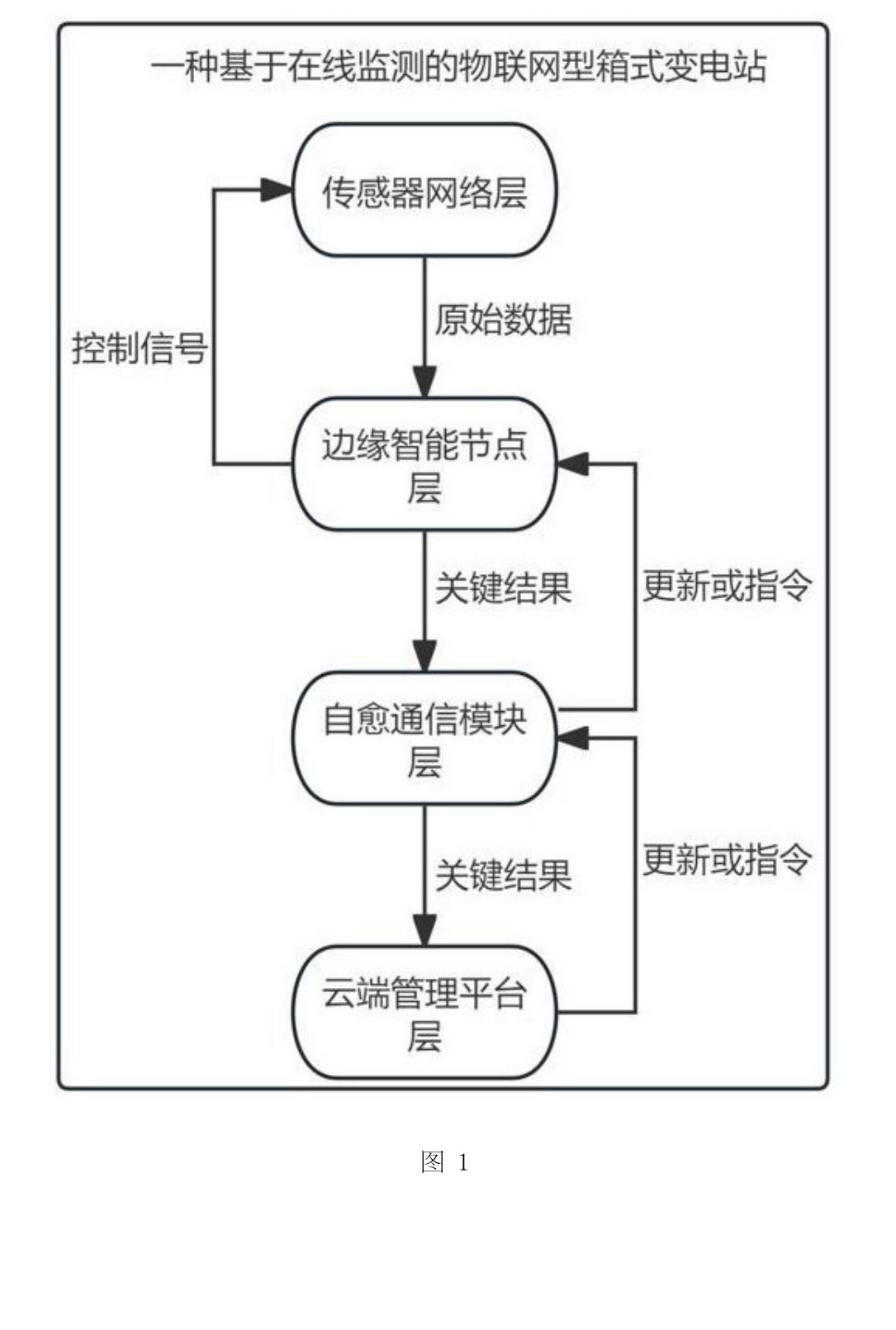

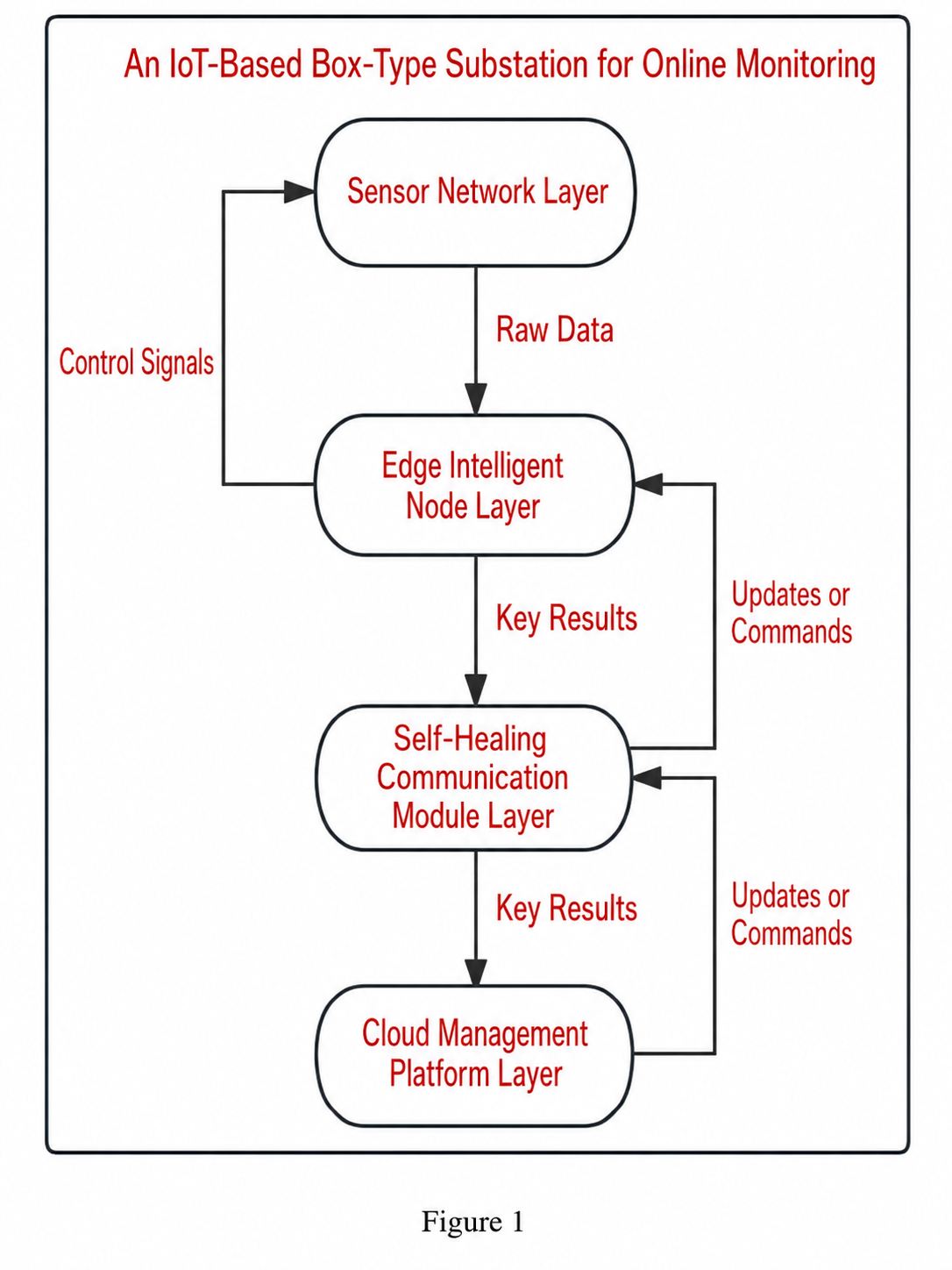

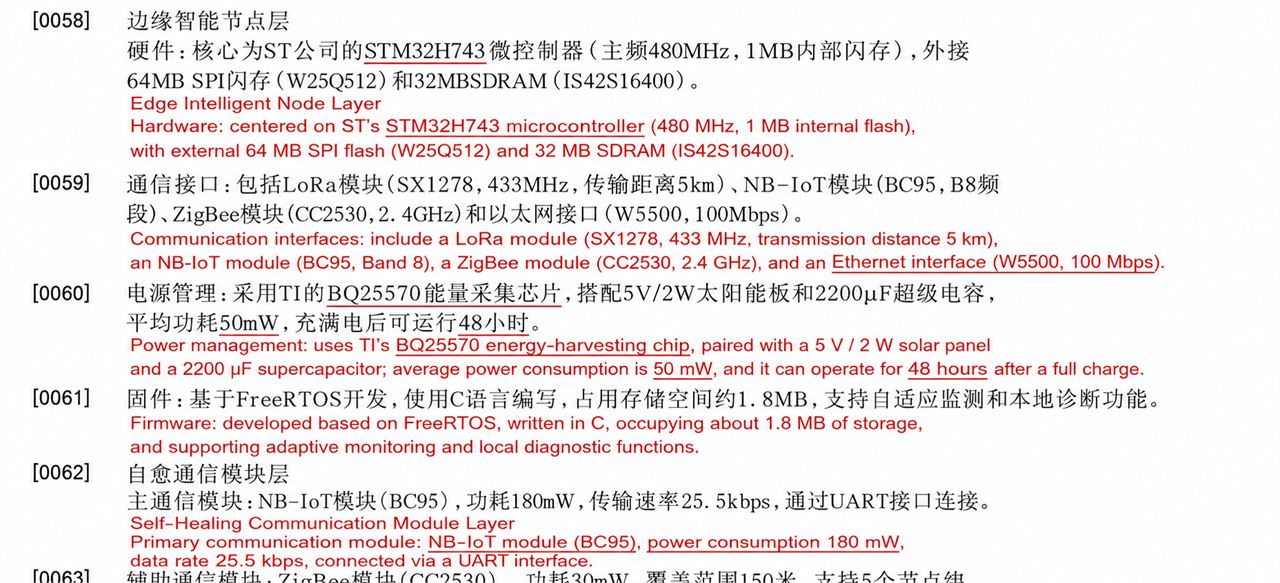

Overview CN120262698A is a Chinese invention-patent application from Inode Power Group for online monitoring of a box-type substation. Published in July 2025, it divides the system into a sensor network, an intelligent edge node, a self-healing communication layer, and a cloud management platform. The direct WIZnet answer appears in the detailed embodiment: an STM32H743 edge board includes a WIZnet W5500 Ethernet interface with an RJ45 socket and stated 100 Mbps support. That board also carries LoRa, NB-IoT, and ZigBee interfaces. The distinction matters because the patent's worked sequence…
