ESP32 T-Lite ESP32 W5500 0.96 Inch OLED Type-C USB Development Board TTGO

Project description

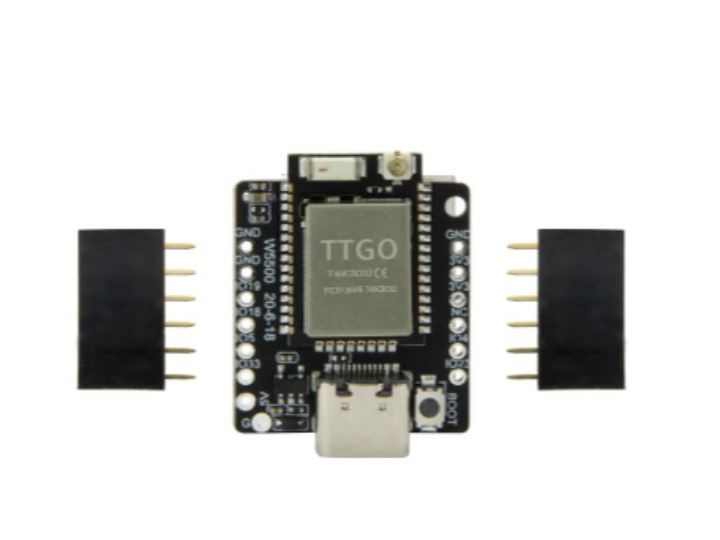

Description The TTGO T-Lite W5500 development board used the ESP32 and comes with a built-in OLED, and female headers to connect an Ethernet add-on board called W5500 Gateway Module. Specifications: SoC – Espressif System ESP32 dual-core WiFi and Bluetooth SoC with 520KB SRAM Storage – 4MB flash Display – 0.96-inch OLED display (SSD1306 driver) Connectivity 802.11 b/g/n WiFi 4 up to 150 Mbps, and Bluetooth via ESP32 SoC, onboard ceramic antenna or external antenna (selectable with a resistor?) Optional Ethernet via SPI Ethernet board based on Wiznet W5500 USB – 1x USB Type-C port for power…
