Project description

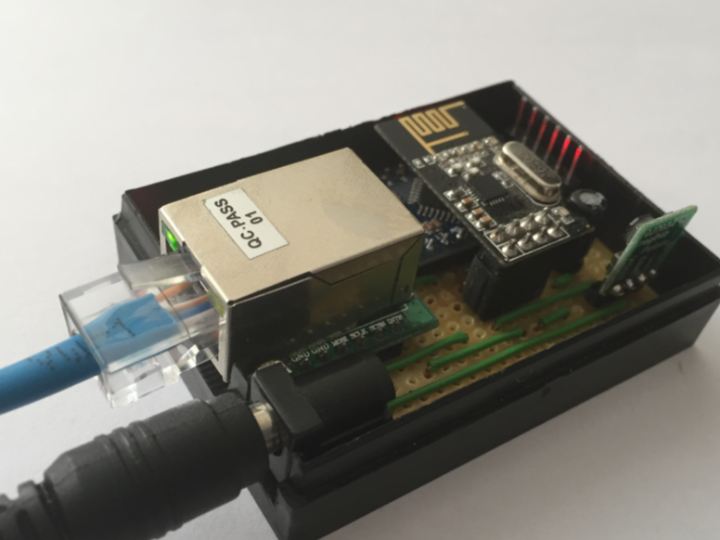

Hello everyone! Just wanted to share my Ethernet Gateway build. It became pretty neat, I think. Connected to my WIFI extender. I'm using a Vero PCB Prototyping Board with copper strips. It makes it easier to solder and less cables. To cut the copper strips on the Vero board I'm using a 5mm drill bit and my finger tips: Example from a Vero Board Project: You can buy them for example from here: Ebay I'm using a W5500 Ethernet Module instead of W5100. A W5500 Ethernet module is more compact, but a little bit more expensive. If you'll use a W5500 Module as I do, you need to replace the Arduino…
