Smart Ethernet-enabled Person detector(RP2040, W5100S, TFLM)

This project shows integration of Ethernet connectivity with the Raspberry Pi Pico and TensorFlow Lite Micro for efficient person detection

viktor

Published February 21, 2024

Smart Ethernet-enabled Person detector(RP2040, W5100S, TFLM)

Components

Hardware components

x 1

Project description

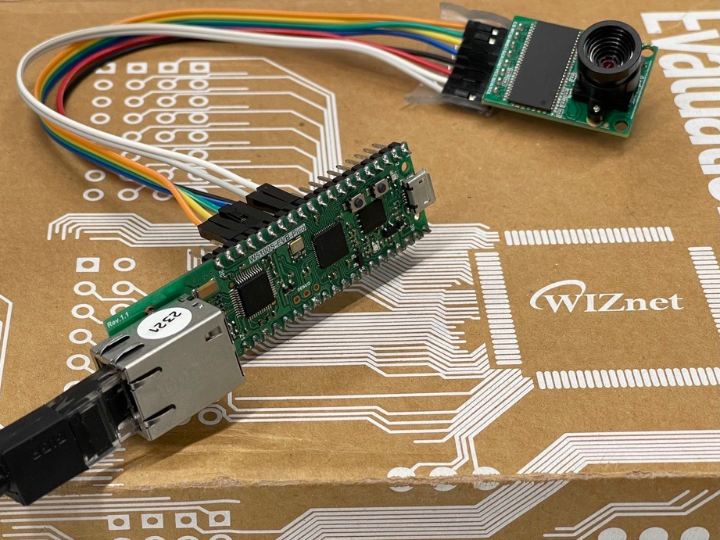

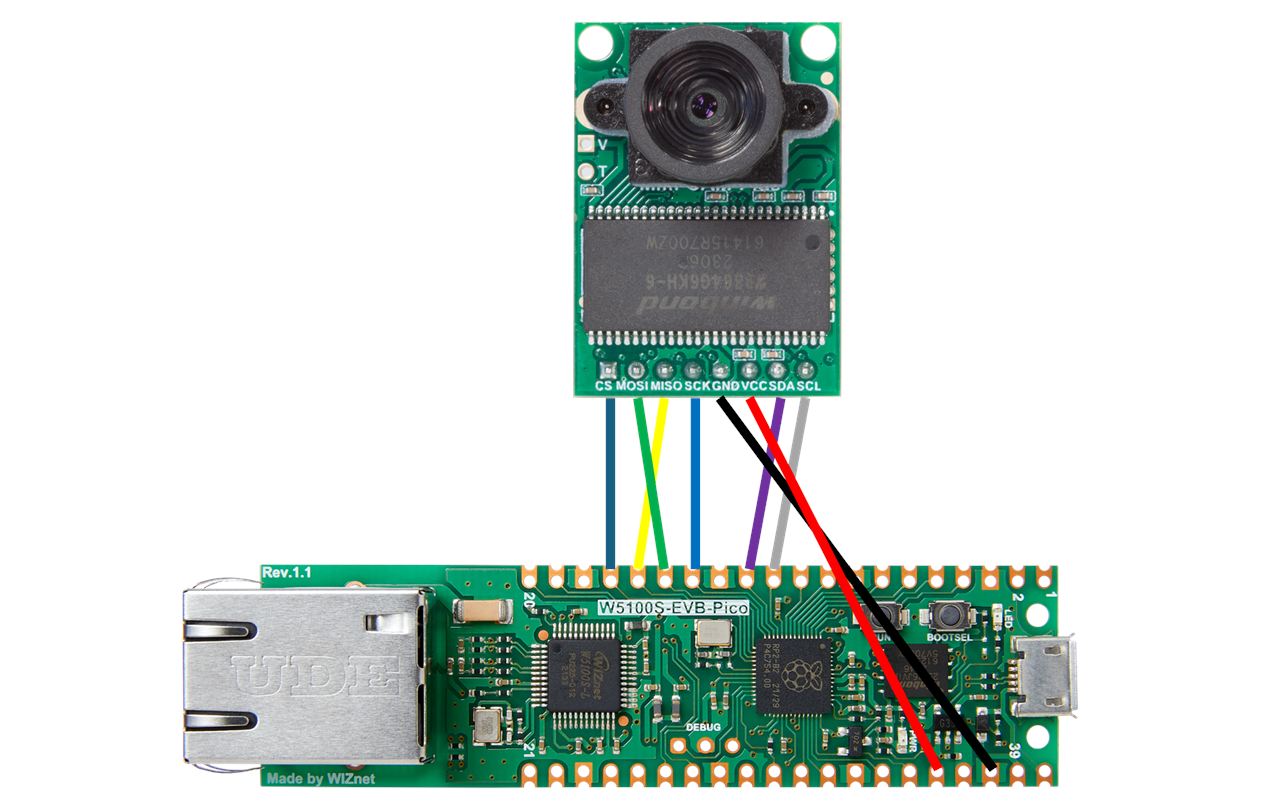

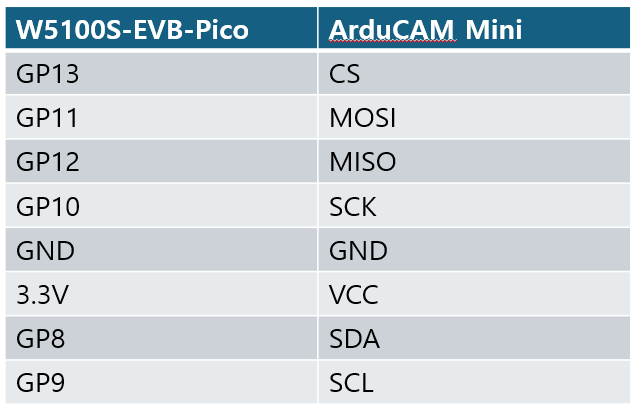

1. Introduction This project aims to demonstrate how to deploy an embedded person detection AI model to RP2040-based board and transmit the results via Ethernet connection. The system consists of an Arducam 2MP SPI camera that is connected to the W5100S-EVB-Pico. The captured image will be serving an input to ML model that will detect a person in it. Then, the results will be transmitted to a local TCP server via Ethernet. 2. Hardware setup As SPI0 is used for communication between RP2040 and W5100S, the Arducam 2MP SPI camera is connected to SPI1. Optionally, USB-to-TTL can be connected to…
