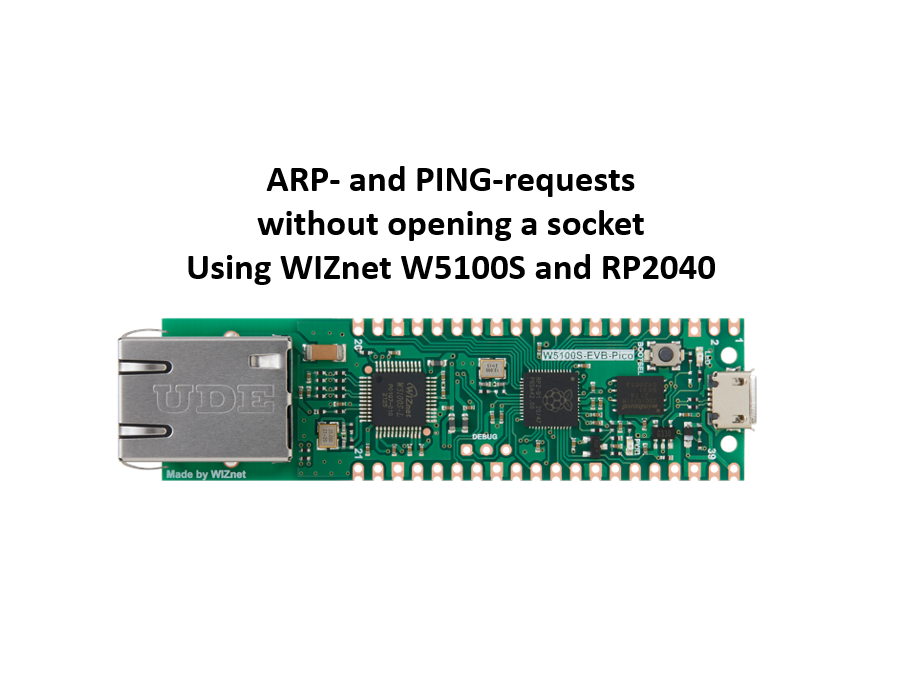

Using Socket-less commands with RP2040 and W5100S

This project will demonstrate how to use W5100S socket-less commands.

WIZnet

Published February 03, 2023

Original author: Viktor · South KoreaOriginal source (new tab)

Using Socket-less commands with RP2040 and W5100S

Components

Hardware components

Project description

Did you know that using W5100S it is possible to execute ARP and PING requests without opening a socket? Socket-less commands (SLC) for ARP and PING requests can be extremely useful when testing network environment or checking device connection status. These functions are supported only in W5100S & W6100 and can be operated by controlling following registers: SLCR – SOCKET-less Command, SLIR – SOCKET-less Interrupt, SLIMR – SOCKET-less Interrupt Mask, SLIRCLR – SOCKET-less Interrupt Clear, SLDIPR – SOCKET-less Destination IP Address, SLDHAR – SOCKET-less Destination Hardware Address, PINGIDR…
