WEB switch 63 relay for Arduino mega

Components

Hardware components
W5100

WIZnet - W5100

x 1

Project description

Original : https://remoteqth.com/arduino-web-switch.php

: https://remoteqth.com/wiki/index.php?page=Arduino+MEGA+63+relay+Web+switch

Before : https://oldmaker.wiznet.io/2019/04/02/web-switch-63-relay-for-arduino-mega-code-by-dm5xx/

Author : RemoteQTH
Published On : 2015-10-14

End of support : 2020-03-21

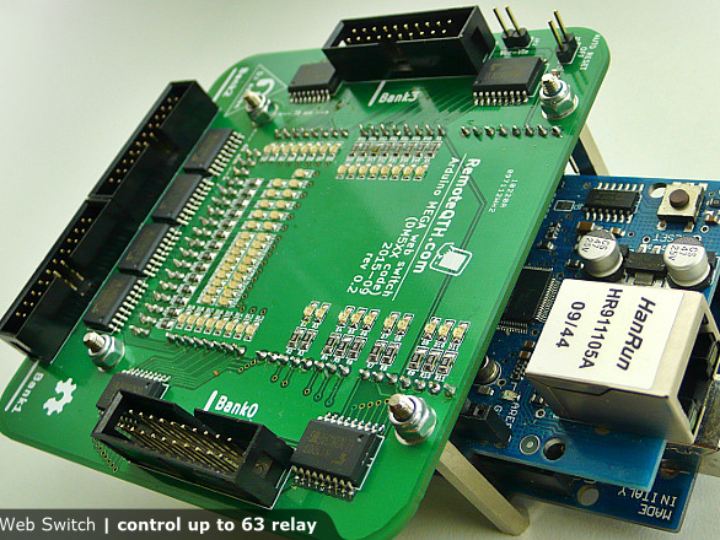

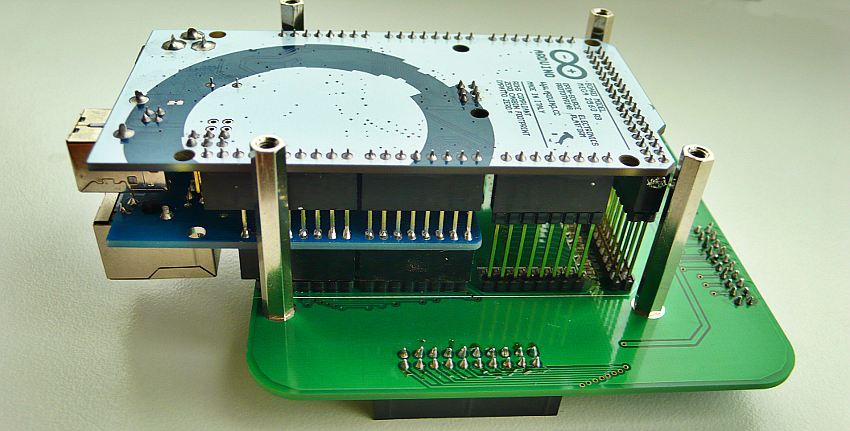

The author made a 63-relay switch that can control by the web with Arduino MEGA.

WEB switch 63 relay for Arduino mega

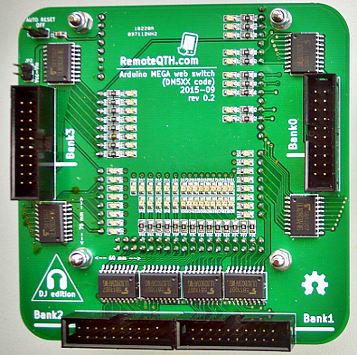

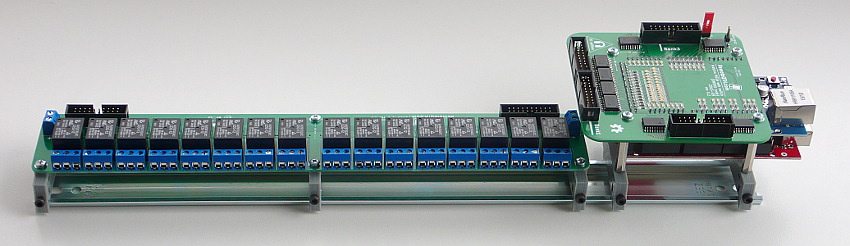

It has four output banks, and each bank can connect to sub-relay boards.

WEB switch 63 relay for Arduino mega

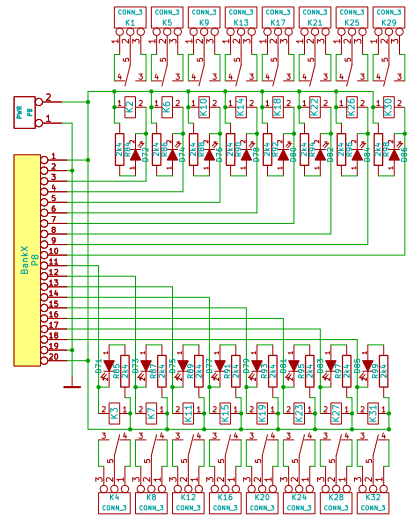

There is a sub-relay board schematic.

WEB switch 63 relay for Arduino mega


Also, here is the github repository to reference.

WEB switch 63 relay for Arduino mega

But, unfortunately, they no longer sell it on their website.



Documents

  • https://github.com/dm5xx/mega_webswitch

  • Main board

  • 16 Relay board
