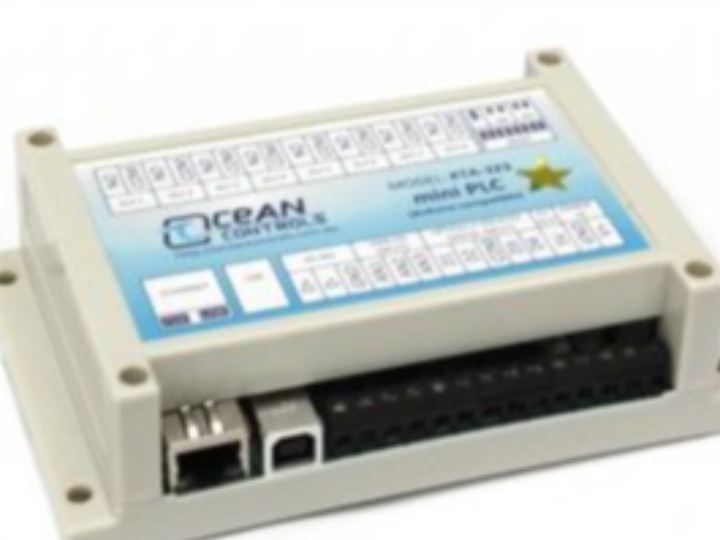

Mini PLC

Arduino-compatible controller with eight relay outputs, four opto-isolated inputs and three 4 to 20 mA or 0 to 5 VDC analog inputs.

ssekim

Published August 31, 2022

Original author: Ocean Controls ยท AustraliaOriginal source (new tab)

Mini PLC

Components

Hardware components

Project description

The KTA-323 is a USB, RS-485, or Ethernet controlled IO module for interfacing PC's to real world applications, such as controlling lights and sprinkler systems, reading sensors and monitoring switches and other digital signals. It's also an Arduino compatible controller and can be programmed with Arduino IDE for stand-alone operation. The relays are capable of switching up to 5A at 250 VAC. Bi-directional, optically-isolated digital inputs can be wired to NPN, PNP or dry contact (switch) type sensors. Three analog inputs can be used for 0 to 5 VDC or 0 to 20 mA (including industry standardโ€ฆ

Keep reading with a free account

Guests can read 15 projects per visit. Log in or create a free account to read the full description, open the documents and join the comments.
