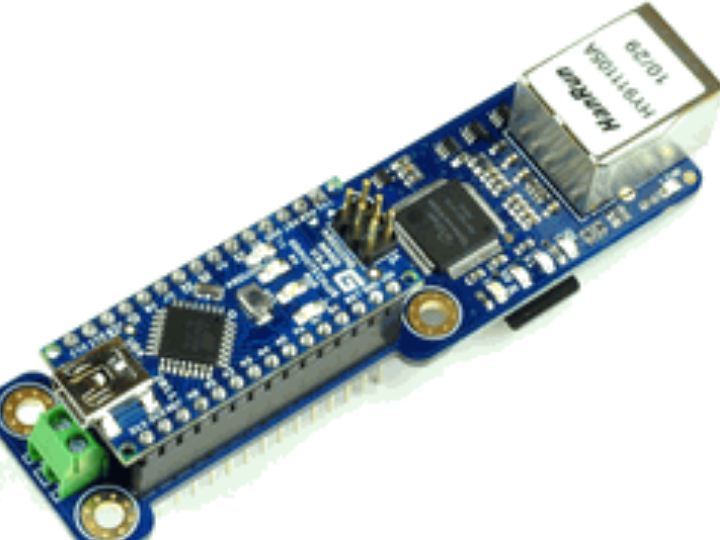

Ethernet w/ MicroSD add-on for Arduino Nano

This add-on module allows you to connect the Arduino Nano to the internet. You get all of the benefits of using the Arduino Nano.

WIZnet

Published August 30, 2022

Original author: gravitechus ยท United States of AmericaOriginal source (new tab)

Ethernet w/ MicroSD add-on for Arduino Nano

Components

Hardware components
W5100

WIZnet - W5100

x 1

Arduino Nano R3

Arduino - Arduino Nano R3

x 1

Project description

Original Link - https://www.gravitech.us/etwmiadforar.html It is based on the Wiznet W5100 Ethernet chip which provids a network (IP) stack capable of both TCP and UDP. The ETHERNET-4NANO supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the add-on module. The ETHERNET-4NANO connects to an Arduino Nano using female long wire-wrap headers which extend through the board for the breadboard connections. This keeps the pin layout intact and allows another add-on module to be stacked on top or bottom. The Micro-SDโ€ฆ
