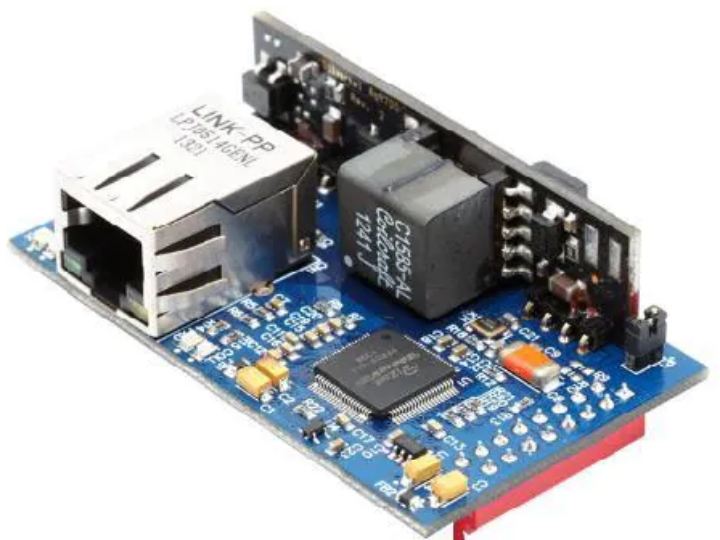

The VI800A-PoE is a plug in accessory for the VM800P Plus module, which is used to develop and demonstrate the functionality of the FT800.

mayuri

Published September 01, 2022

Original author: Mouser Electronics · IndiaOriginal source (new tab)

Bridgetek VI800A-PoE

Components

Hardware components

Project description

FEATURES
Features  Connects to the VM800P Plus module using an SPI slave interface  SPI slave interface is converted to an ethernet interface compliant with IEEE 802.3 10BASE-T and 802.3u 100BASE-TX  Power over Etherent (PoE) supplies 5V DC at 1.8A. May be used to power VM800P module. Conforms to IEEE 802.3af  VI800A-PoE module is powered from the VM800P module (3V3 supply)  6 LEDs to indicate Ethernet status. (2 integrated in the RJ45 connector)  RJ45 connector.


VI800A Power over Ethernet module –

The VI800A-PoE module is designed to connect directly with the VM800P Plus module.
The main functions of the VI800A-PoE module are as follows:
 Plug in accessory board for the VM800P Plus module.
 Interface to the VM800P Plus board as a SPI slave device.
 Connects with an external Ethernet interface.
 Contains 6 LEDs (2 integrated in RJ45 connector).
 Powered by the VM800P Plus board
 5V @1.8A power available from Power over Ethernet (PoE)
