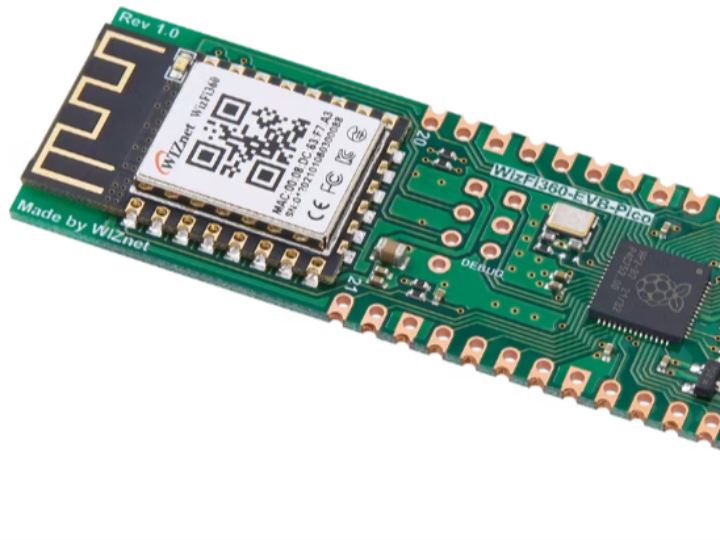

WizFi360-EVB-Pico is WizFi360 Wi-Fi Module + RP2040 board. This project will demonstrate how to operate by TCP Server and transmit data.

mason

Published August 30, 2022 · © Apache License 2.0 (Apache-2.0)

Original author: MasonLee · South KoreaOriginal source (new tab)

WizFi360-EVB-Pico TCP Server running

Components

Hardware components
WizFi360-EVB-Pico

x 1

Software Apps and online services

Project description

I’m going to introduce how to operate WizFi360-EVB-Pico by TCP Server and transmit data to TCP Client.

For your reference, WIZnet has a separate docs website,

https://docs.wiznet.io/Product/Open-Source-Hardware/wizfi360-evb-pico

First and foremost, you need the TCP Client tool. We use Open Source Hercules.https://www.hw-group.com/software/hercules-setup-utility

A sample firmware can be downloaded or cloned from the following Github link: https://github.com/Wiznet/WizFi360-EVB-Pico-C

Please clone, update submodule and patch.

Input the your Wi-Fi AP SSID & Password into the path WizFi360-EVB-Pico-C\examples\TCP_Client_Demo\socket_startup.c

I’m going to introduce how to operate WizFi360-EVB-Pico by TCP Server and transmit data to TCP Client.


After the build, download tcp_server_demo.uf2 file to WizFi360-EVB-Pico.

You can see the logs from usb port via serial terminal. and check IP address

I’m going to introduce how to operate WizFi360-EVB-Pico by TCP Server and transmit data to TCP Client.


This example is set default port number 5000. You can change this number in WizFi360-EVB-Pico-C\examples\TCP_Server_Demo\iot_demo.c #define TARGET_PORT 5000

Open the Hercules tool and go to TCP Client Tab, input the IP and Port.Click Connect and Send Data.

I’m going to introduce how to operate WizFi360-EVB-Pico by TCP Server and transmit data to TCP Client.

I’m going to introduce how to operate WizFi360-EVB-Pico by TCP Server and transmit data to TCP Client.


Congratulations!Now, your device is successfully operated by TCP Server :)
