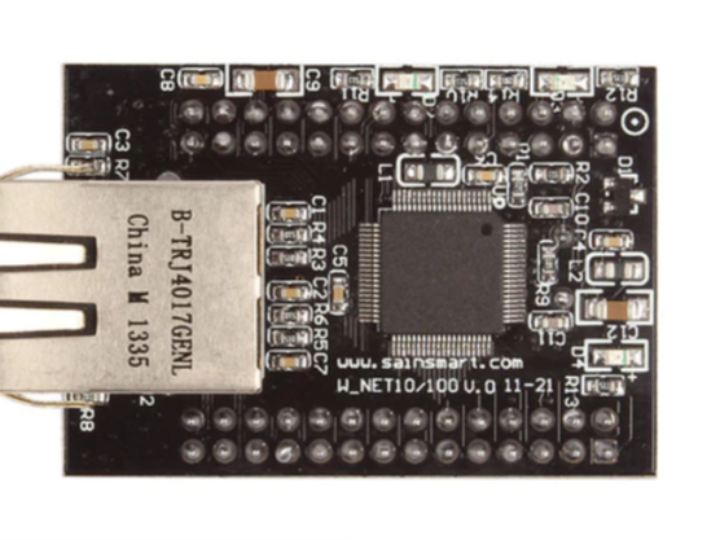

SainSmart W5100 Network Module TCP / IP Ethernet module for Arduino

SainSmart W5100 Network Module TCP / IP Ethernet module for Arduino

WIZnet

Published June 02, 2023

Original author: saintsmartOriginal source (new tab)

SainSmart W5100 Network Module TCP / IP Ethernet module for Arduino

Components

Hardware components
W5100

WIZnet - W5100

x 1

Project description

Description: Support full hardware TCP / IP protocol: TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet. Embedded 10BaseT/100BaseTX Ethernet physical layer. Support auto answer (half / full duplex mode). Support automatic MDI / MDIX. Support ADSL connection (PPPoE protocol support with PAP / CHAP authentication). Supports up to four independent ports. The internal memory of 16K bytes for TX / RX cache. 3.3V operating voltage, I / O port can withstand 5V voltage. 51 TCP client, TCP server, UDP data transceiver procedures. All modules are tested in these programs. STM32 TCP server and client…
