PLC(Power Line Communication) module

jaden

Published July 01, 2024

133 UCC

18 WCC

55 VAR

Original author: linksprite · United States of AmericaOriginal source (new tab)

PLC-UART-HS

Components

Hardware components
W5100

WIZnet - W5100

x 1

Project description

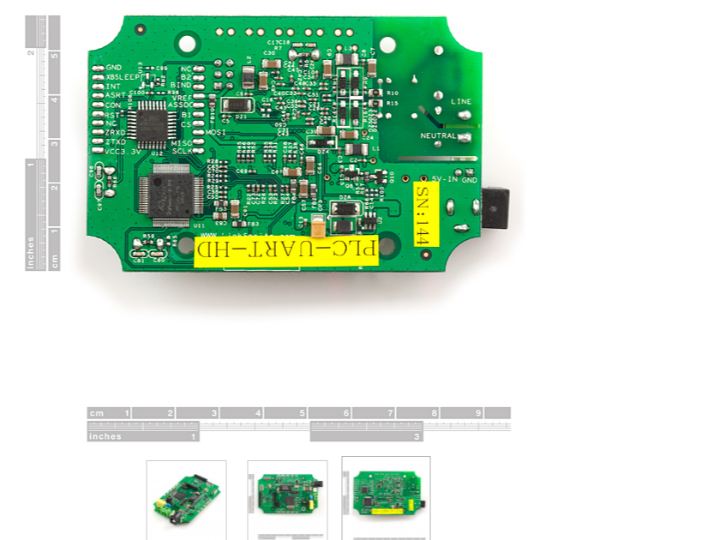

This is a transceiver module designed to send and receive serial data over AC or DC power lines. This version of the PLC-UART allows for throughput of up to 5Mbps! On the PLC-UART motherboard there are two 10-pin headers into which an RS-232, RS-485 or USB daughterboard (see related products below) can be inserted. These headers are also pin-compatible with all of our XBee modules, so the PLC-UART can become a powerline communication to Zigbee bridge. The PLC-UART-HS requires an external 5VDC supply for operation. Communication line voltage can be 230VAC@50Hz, 110VAC@60Hz or 0-400VDC. These…
