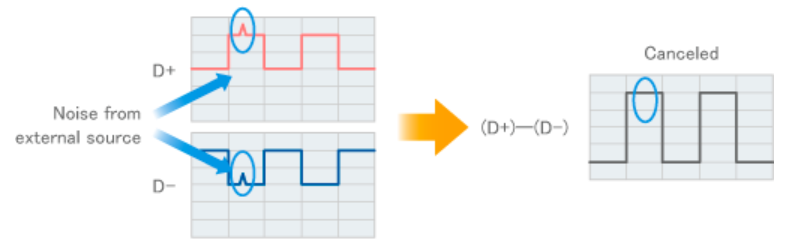

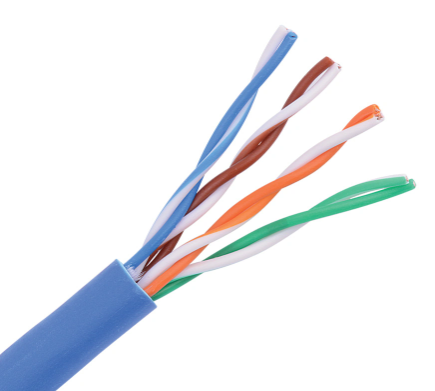

hello! Today we're going to learn why Ethernet communication uses differential signaling. Ethernet UTP cables have a total of four pairs of twisted pair wires. UTP cable Wiznet chip only supports 10 Base-T and 100 Base-T, so it only uses two pairs. But why do Ethernet cables use hard-to-machine twisted pair wires? The first reason is noise reduction and interference immunity. Differential signaling uses the difference between two signals (+,-) in a single pair to carry the desired data. If the differential signal is noisy External noise on the line is not a problem at the receiving end…
