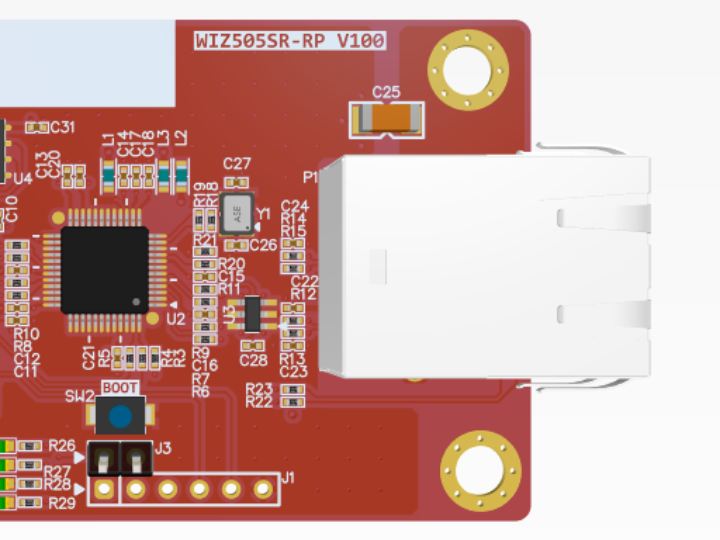

3D step file for WIZnet modules

Project description

Hello! Today's post is about 3D step files for WIZnet modules. Some users of WIZnet modules use them not only in development but also in mass production. Using W5500-EVB-PICO on user's product Often, products have Ethernet communication as an optional feature. In such cases, users frequently request 3D drawings of the module. The exact reason is unclear, but it's probably to check for interference with mechanical parts. Currently, modules designed in Orcad cannot export 3D step files, but those designed in Altium can. So, I have exported 3D step files for some of the most used modules…
