10Base-T Ethernet decording
10Base-T Ethernet decording(1)
3
Components
Hardware componentsProject description

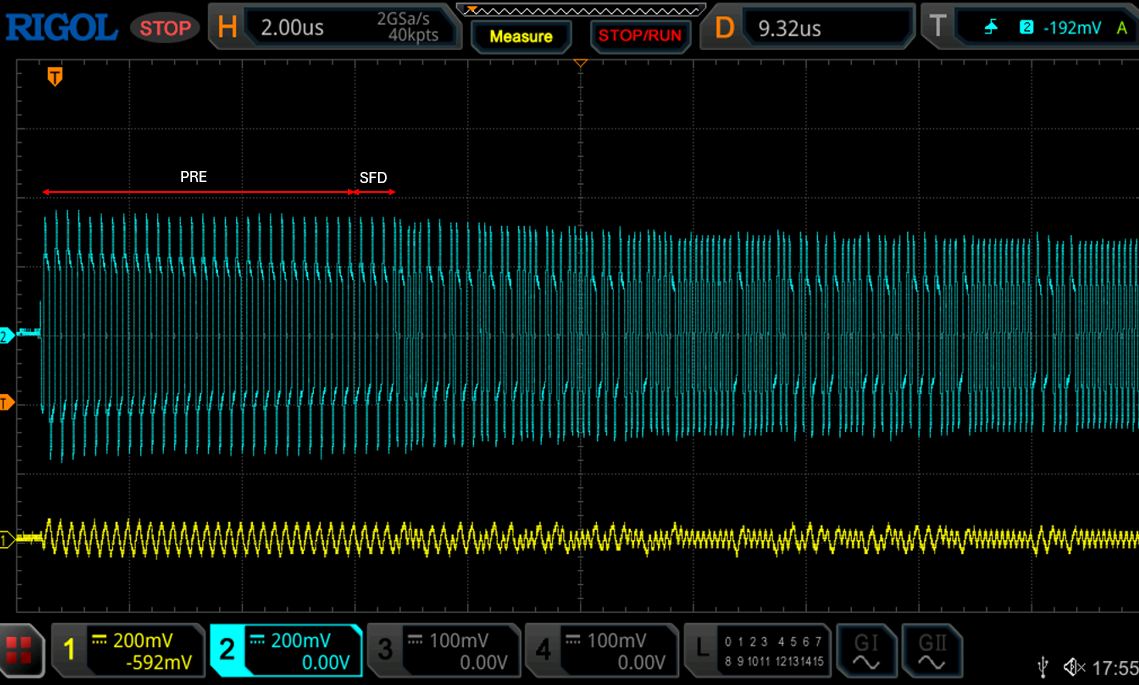

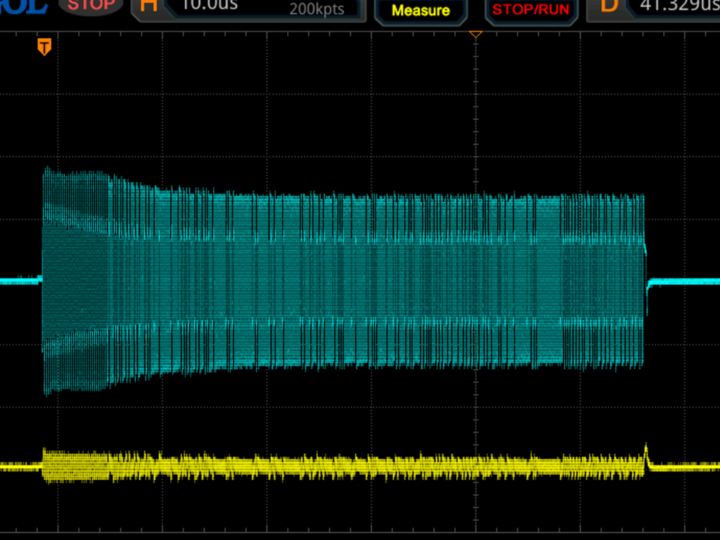

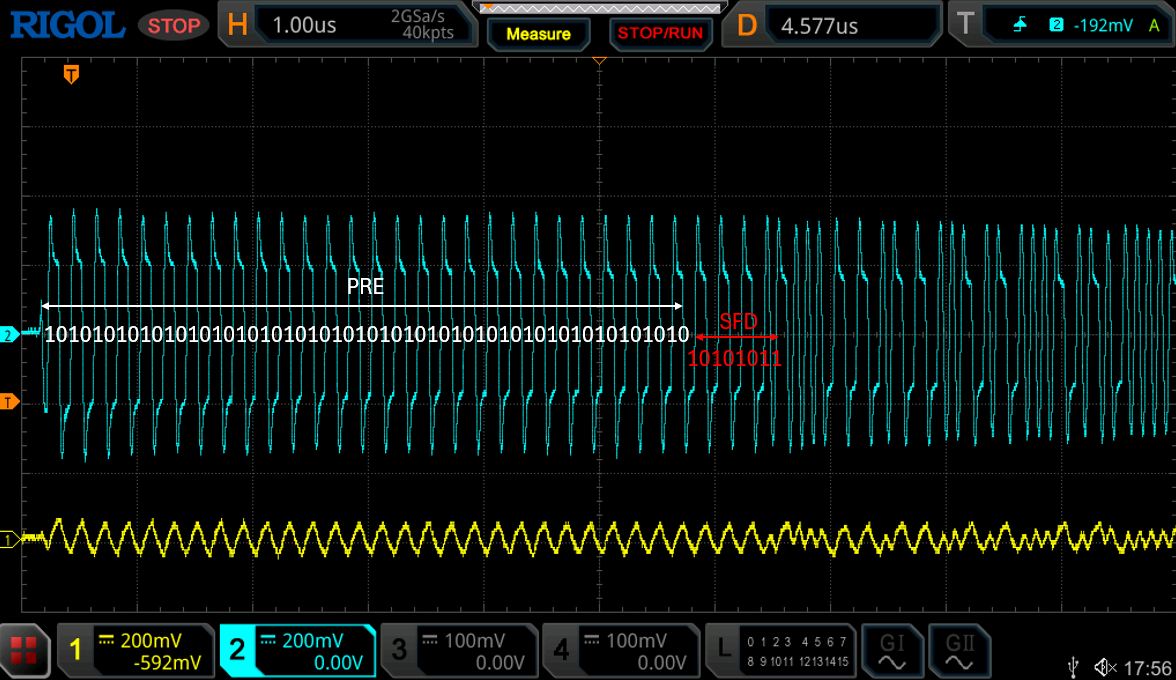

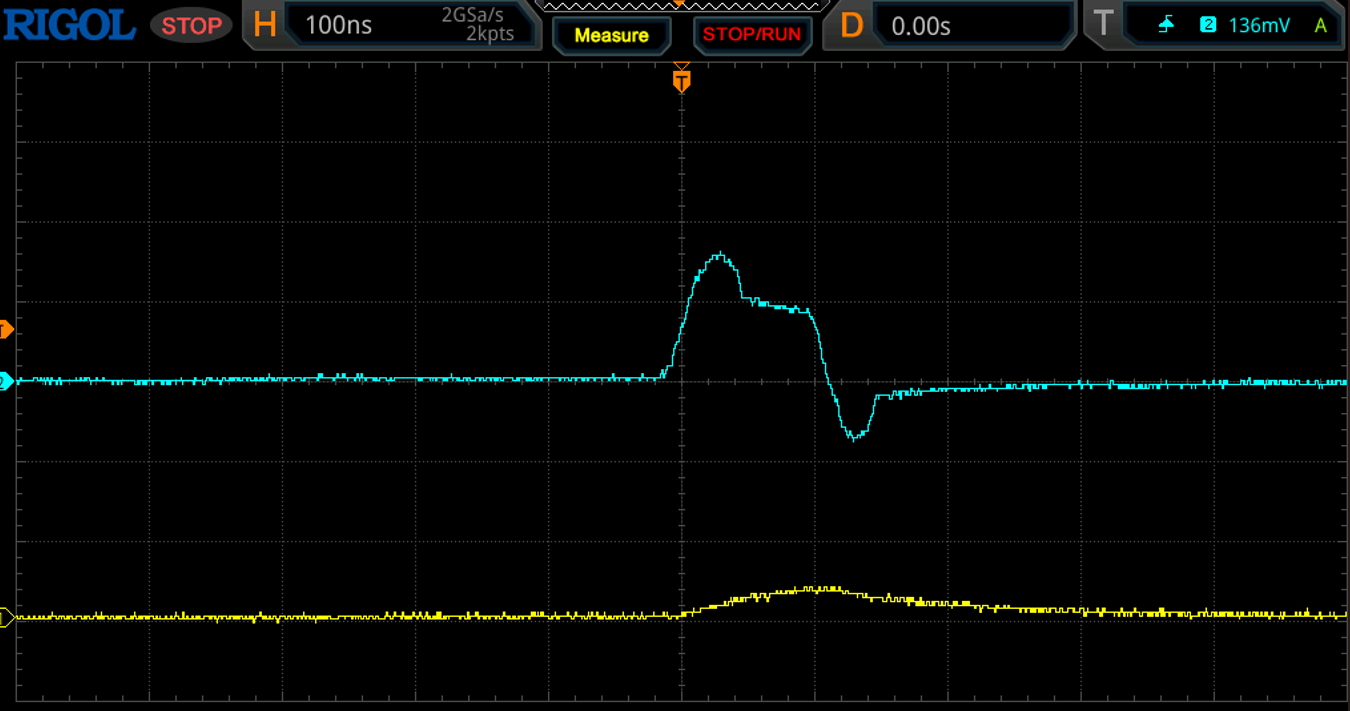

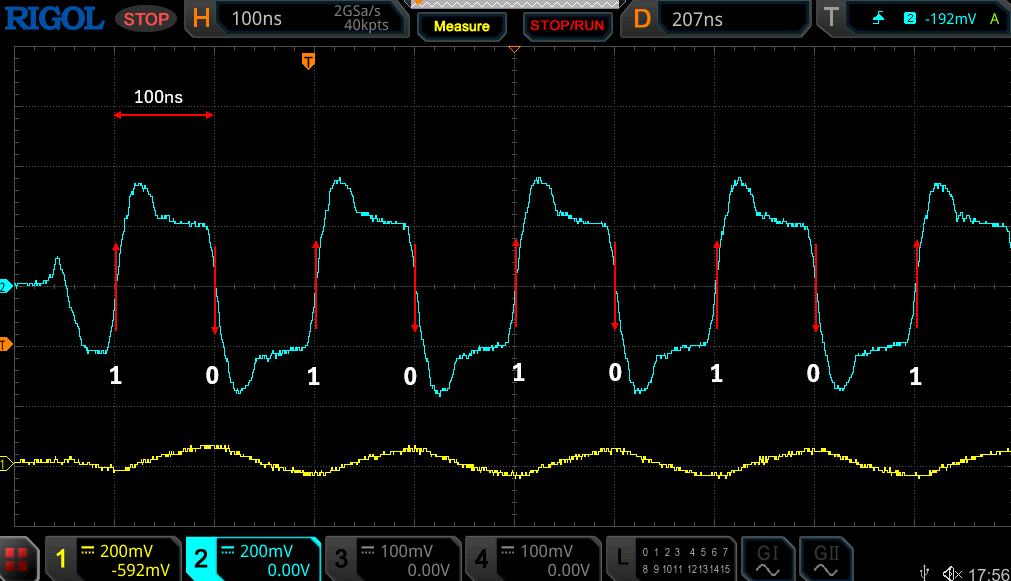

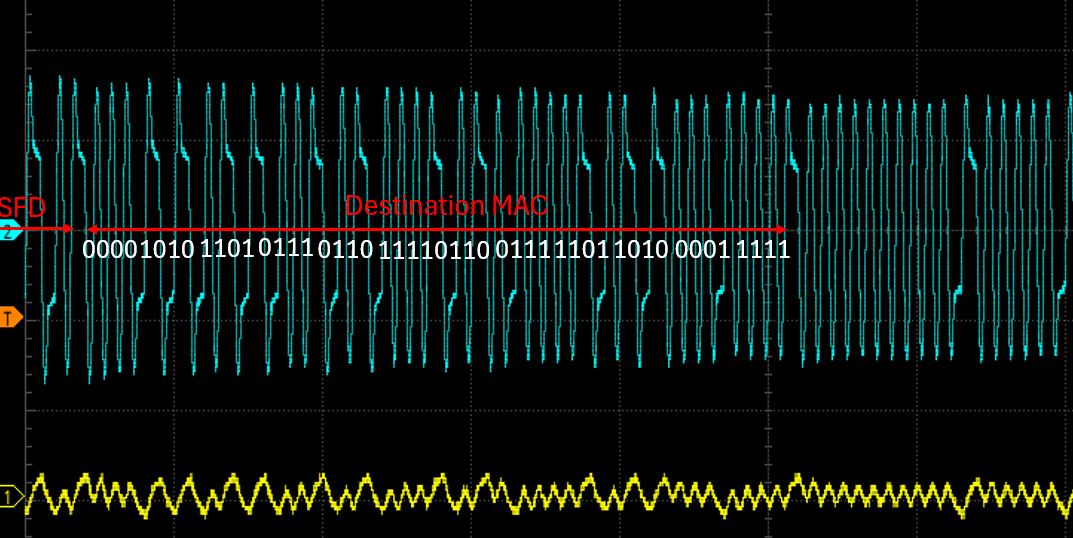

Hi! Today I will analyze the linkup process of 10Base-T and how data is sent by measuring the waveform directly. The module used for the measurement is W5100S-EVB-PICO, set to 10M half instead of Auto negotiagion, and used the TCP loopback server example. Note that 10Base-t uses Normal Link Pulse (NLP), unlike 100Base-t which uses Fast Link Pulse (FLP). The blue waveform is the TX of the W5100S-EVB-PICO and the yellow is the RX. The NLP's waveform has a 100 ns period and NLPs are sent every 16 ms±8 ms. When packets are sent after becoming a link, they must be sent after the Preamble (PRE)…
