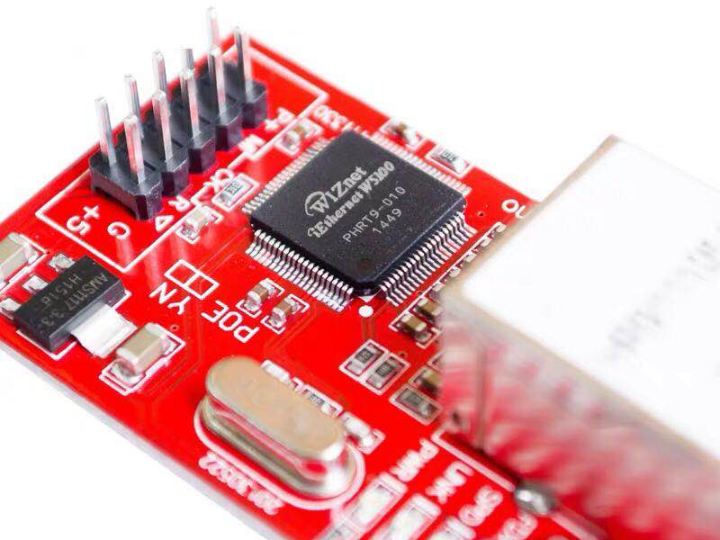

W5100 Ethernet module Ethernet network module network card electronic building block module

Components

Hardware components
W5100

WIZnet - W5100

x 1

Project description

INTRODUCTION W5100 is a multifunctional single chip network interface chip with 10/100 Ethernet controller integrated internally. It is mainly used in embedded systems with high integration, high stability, high performance and low cost. Internet connectivity without an operating system is possible using W5100. The W5100 is compatible with IEEE802.3 10base-t and 802.3u 100base-tx. The W5100 incorporates an all-hardware, multi-year market-proven TCP/IP stack, Ethernet medium transport layer (MAC), and physical layer (PHY). Using W5100 doesn't require Ethernet control, just simple port…
