OFFICIAL ARDUINO ETHERNET SHIELD

-

WIZnet

Published April 04, 2023

Original author: Eliot · United States of AmericaOriginal source (new tab)

OFFICIAL ARDUINO ETHERNET SHIELD

Components

Hardware components
W5100

WIZnet - W5100

x 1

Project description

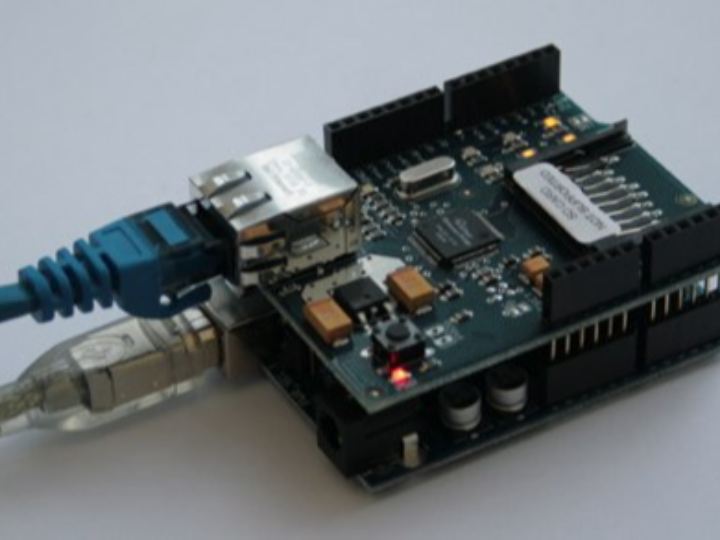

HOW TO USE Arduino has just released an official ethernet shield. It’s based on the same WizNet W5100 chip that was used in the tiny ethernet board we covered earlier. The W5100 handles the full IP stack and can do TCP or UDP with four simultaneous sockets. The board has a power indicator plus six LEDs to debug the connection. It works with the standard ethernet library. The reset button resets the shield and the Arduino. The SD adapter is not currently supported by the Arduino software.
