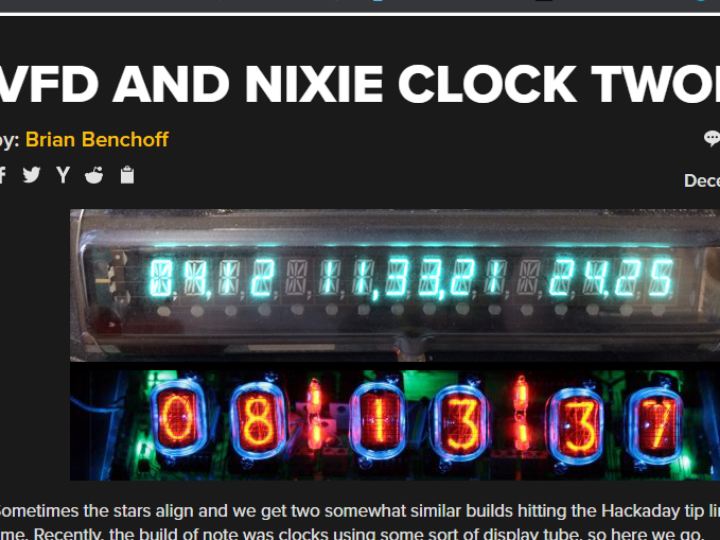

VFD and NIXIE Clock Twofer
Vacuum fluorescent display (VFD) and NIXIE clock having its control board using an Arduino with a WizNet 5100 Ethernet board that sets
7
Components
Hardware componentsProject description
DETAILS In general for a Vacuum fluorescent display based clock such as Pyrofer’s VFD network time clock , where the build started as a vacuum flourescent display tube he salvaged from an old machine. The VFD was a 16 character, 14 segment display, all controlled via serial input. The main control board is an Arduino with a WizNet 5100 Ethernet board. The clock connects to the Internet via DHCP so there’s no need to set an IP address. Once connected, the clock sets itself via network time and displays the current date, time, and temperature provided by a Dallas 1-wire temperature probe. All…
