Load Cell Occupancy Sensor

This project is a occupancy sensor that uses a load cell for couches and beds, transmitting data to my Home Assistant server via MQTT

WIZnet

Published February 21, 2023

Original author: alexOriginal source (new tab)

Load Cell Occupancy Sensor

Components

Hardware components

Project description

DETAILS



Overview

Load cells → HX711 (ADC) → ATMega328P (MCU) → W5100 (Ethernet) → MQTT Broker → Home Assistant

This sensor takes input from 4 load cells, each supporting one leg of a bed or couch. The load cells are sampled with a ATMega328P (Arduino) using an HX711 load cell ADC. These samples are then transmitted to an MQTT broker via the Wiznet W5100 (same as Arduino Ethernet shield).

Project Contents

  • LoadCell_ArduinoCode – firmware for the ATMega328P
  • LoadCell_Case – 3D printable case designed in OpenSCAD
  • LoadCell_Holder – 3D printable holder for the load cells designed in OpenSCAD

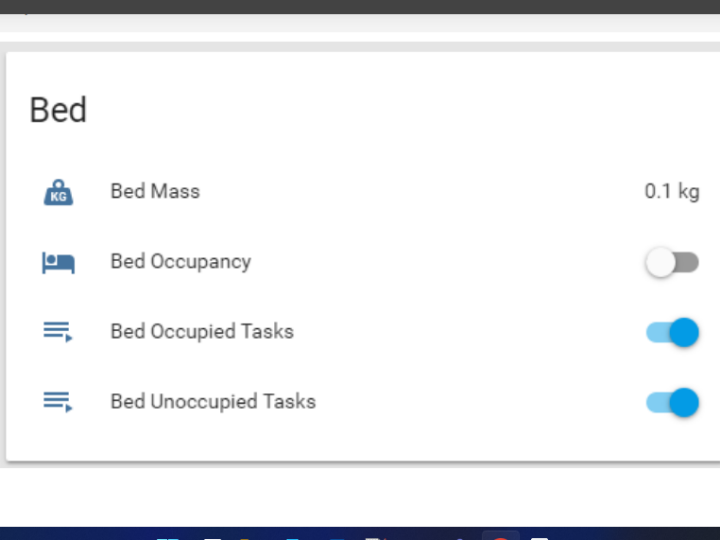

  • LoadCell_HomeAssistant – example Home Assistant configuration
  • LoadCell_KiCAD – schematic and PCB



ORIGINAL LINK: HTTPS://GITHUB.COM/NEWAM/LOADCELLOCCUPANY
