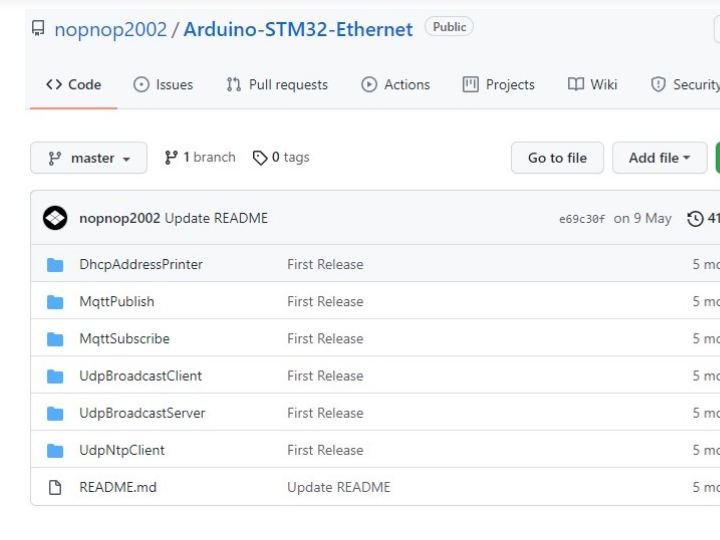

Arduino-STM32-Ethernet

WIZnet W5500, W5200, W5100 Ethernet Example for STM32 microcontrollers using Arduino Environment.

WIZnet

Published February 21, 2023

694 UCC

229 VAR

Original author: nopnop2002Original source (new tab)

Project description

DETAILS

WIZnet W5500, W5200, W5100 Ethernet Example for STM32 microcontrollers using Arduino Environment.

Hardware requirements

STM32F103 Development Board
W5100/W5200/W5500 Ethernet Module
About $5 for aliexpress/eBay.
W5100 is for 5V only.
W5500 can be used at both 3.3V / 5V.
ST-LINK/V2 or ST-LINK/V2.1 Module
About $5 for aliexpress/eBay.
You can use NECLEO board as ST-LINK/V2.1
USB-TTL Converter
For Serial monitoring.
External Voltage Regurator
BluePill or BlackPill board cannot supply too much current.
It is more stable when supplied from an external power source.
AMS1117 is often used.
