[RP2350_W6100] 웹서버 테스트 - 거리감지 센서 (VL53L0x) 실시간 그래프 출력 테스트 (Arduino)
https://nexp.tistory.com/4127
0
![[RP2350_W6100] 웹서버 테스트 - 거리감지 센서 (VL53L0x) 실시간 그래프 출력 테스트 (Arduino)](/upload/_thumb/1280/project/15049/cover15.jpg.jpg)
Components
Hardware components
WIZnet - W6100
x 1
Project description

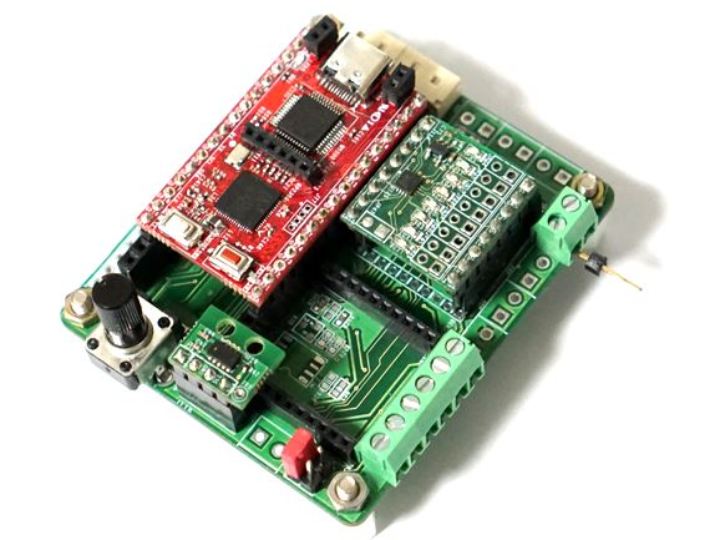

Test Setup Hardware: RP2350 board as the main controller W6100 Ethernet chip for network communication VL53L0x distance sensor (ToF sensor for precise distance measurement) Software: Arduino framework Demo Video: YouTube Shorts Reference Blog: Engineer’s LAB – Distance Sensor Web Server How It Works Data acquisition The VL53L0x sensor continuously measures distance values in millimeters. Ethernet communication The measured data is sent through the W6100 chip using TCP/IP. A lightweight web server runs on the RP2350. Visualization When a user opens the board’s IP address in a browser, the…
