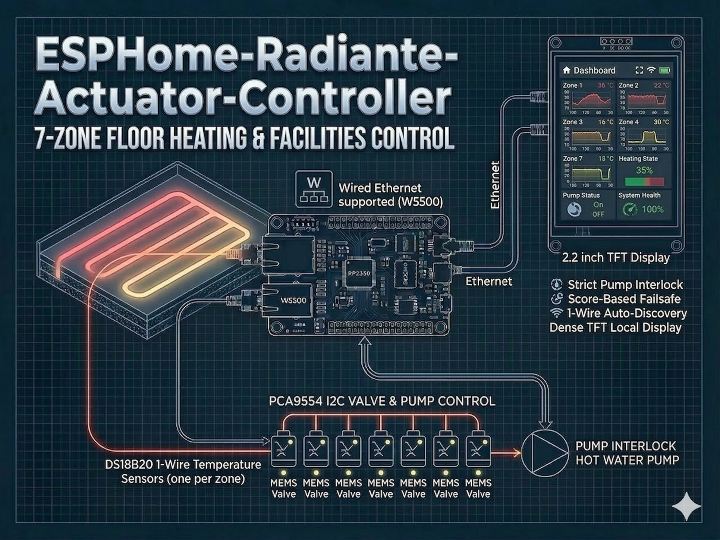

ESPHome-Radiante-Actuator-Controller
An open-source ESP32-S3/ESPHome 7-zone radiant heating controller with valve-feedback pump interlock, score-based failsafe logic, and real-time TFT monitoring.
0
Components
Hardware components
WIZnet - W5500
x 1
Nabu Casa - ESPHome
x 1
Project description
Implementing Radiant Floor Heating Control with Open Source: ESPHome 7-Zone Controller and W5500 Expandability Introduction: Beyond "On/Off" — Safe and Reliable Heating Control Radiant floor heating control doesn't end with simple relay switching. For stable real-world operation, the system must verify that valves actually open, protect the pump, detect sensor anomalies, and respond automatically. This open-source project implements an ESP32-S3-based 7-zone heating controller using ESPHome, bringing the following together in a single architecture: Per-zone independent temperature control…
