ESP32 JSY Energy Meter Gateway with W5500 Support

ESP32 firmware for JSY meters with dashboard, UDP, REST, Shelly emulation, and W5500 Ethernet builds.

Benjamin

Published May 11, 2026 · © GNU General Public License, version 3 or later (GPL3+)

Original author: Mathieu Carbou · FranceOriginal source (new tab)

ESP32 JSY Energy Meter Gateway with W5500 Support

Components

Hardware components
Software Apps and online services

WIZnet parts

Project description

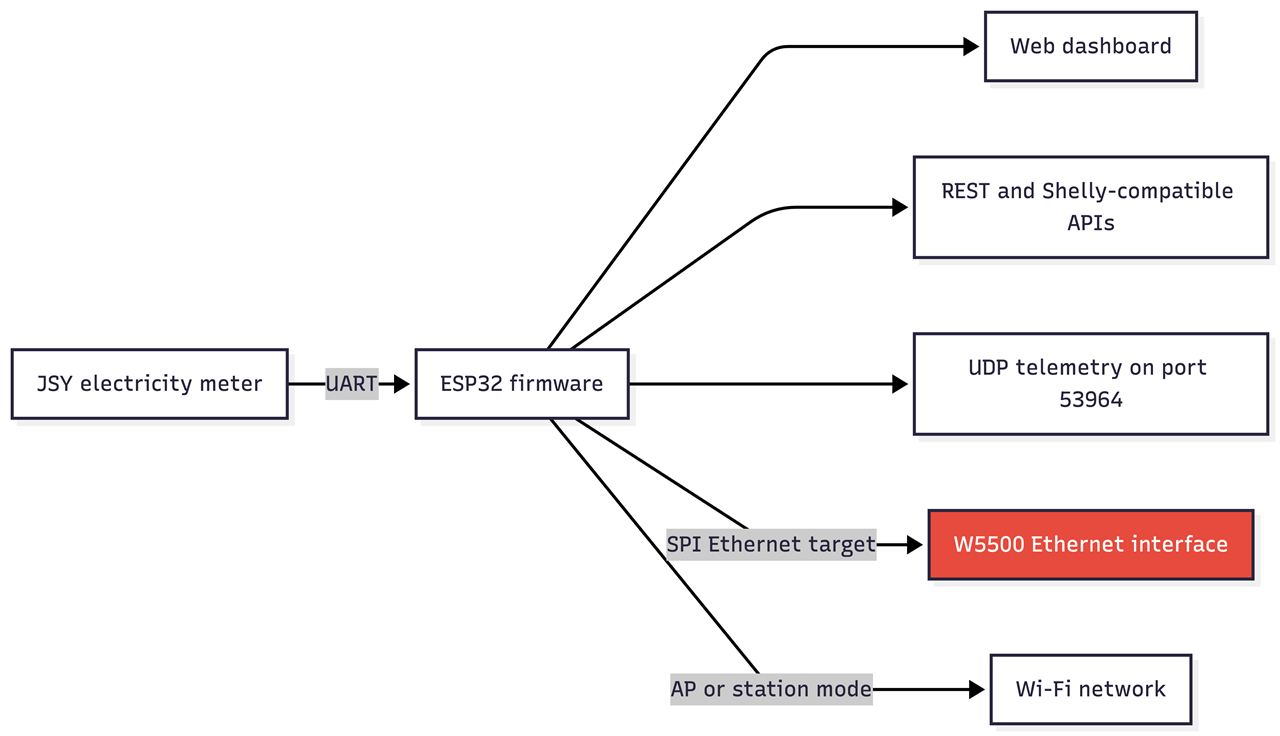

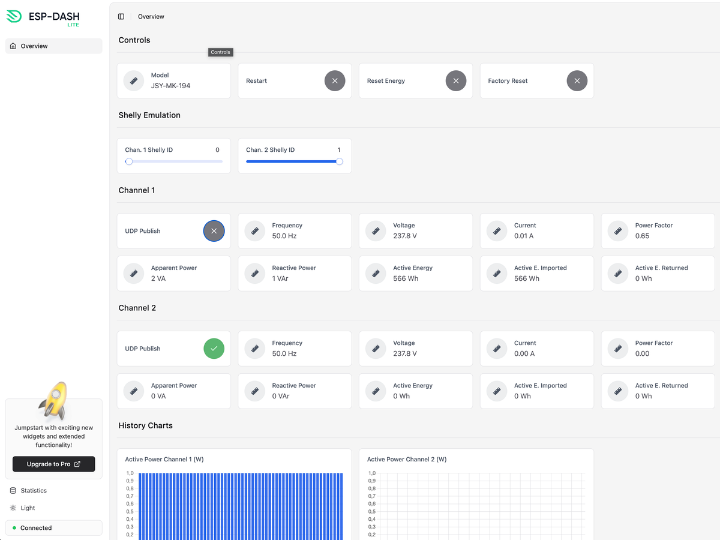

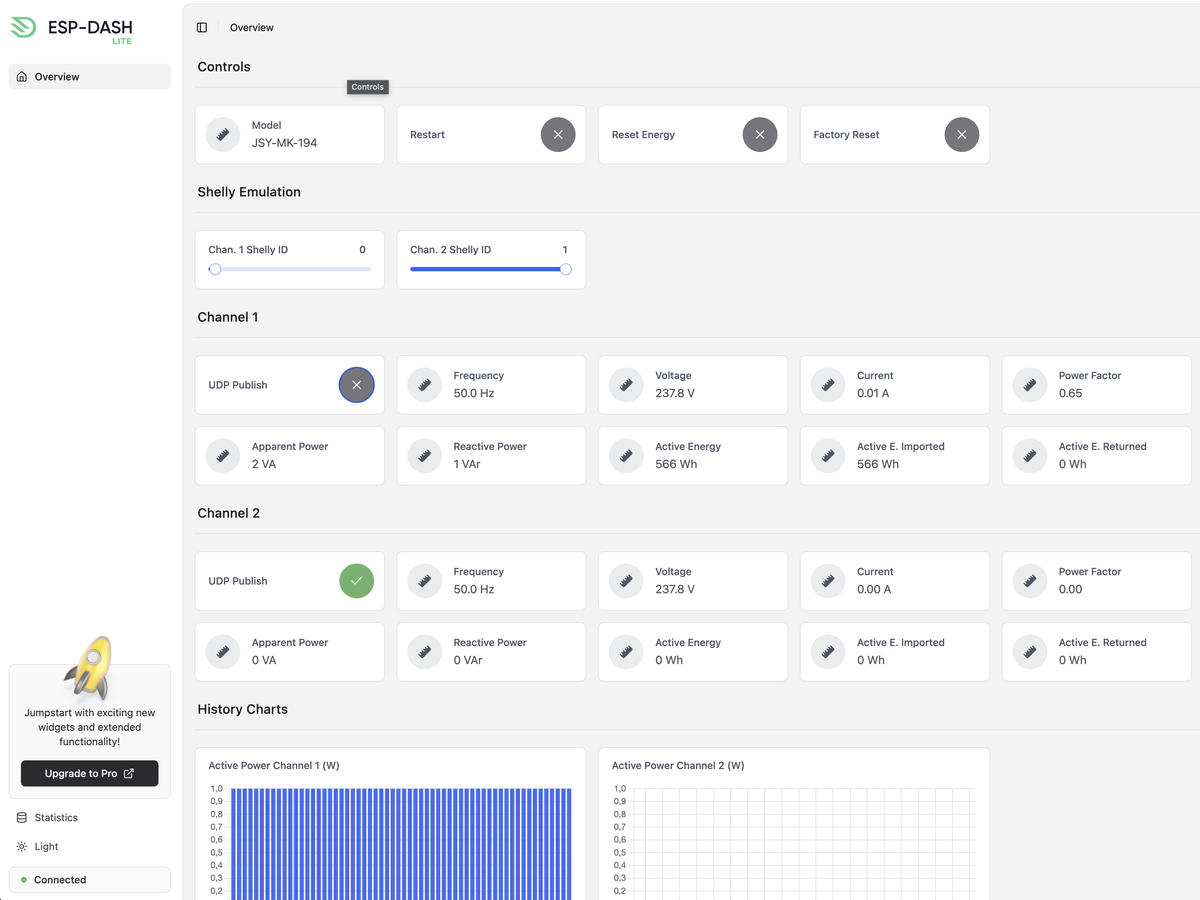

JSY Energy Data on ESP32 Mycila JSY App is an Arduino/ESP32 firmware project for Shenzhen Jiansiyan JSY electricity meters. It reads single-phase, two-channel, and three-phase JSY meter data over UART, then exposes the measurements through a local web dashboard, REST endpoints, Shelly-compatible API routes, and a UDP telemetry stream. For WIZnet readers, the relevant point is that the project includes W5500 Ethernet board support for ESP32-S3 targets, so JSY power data can be published over wired Ethernet on boards such as LilyGO T-ETH-Lite ESP32-S3 and Waveshare ESP32-S3 ETH. Edited…
