How Does W5500 Stream 8-Channel RF Data for Drone Detection?
A Zhejiang University patent uses STM32, AD7606, and W5500 Ethernet to stream 8-channel RF data into CNN-based drone detection.
0
Components
Hardware components
WIZnet - W5500
x 1
WIZnet W5500 network protocol chip used as the STM32 SPI-to-Ethernet path in the patent's microprocessor preprocessing module.
Project description

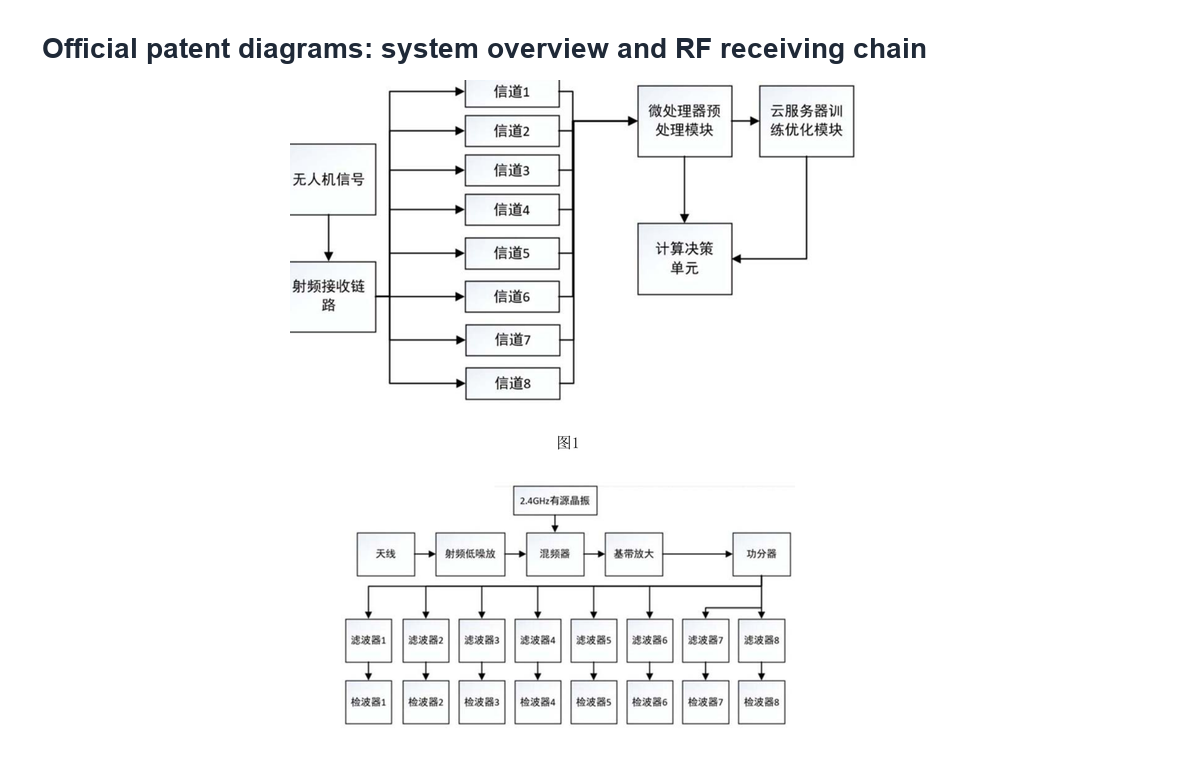

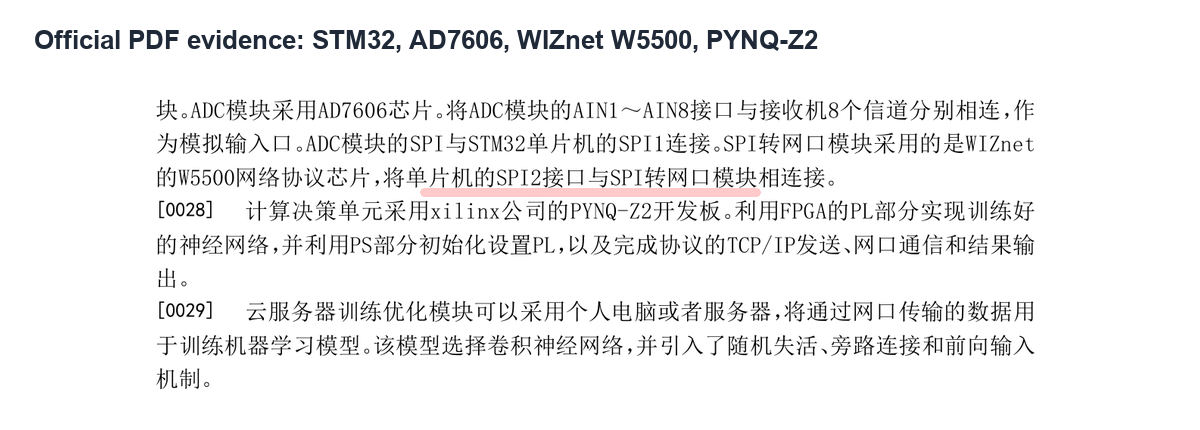

Overview Zhejiang University ZJU is the assignee listed for CN110213010B, a Chinese granted patent for an unmanned aerial vehicle detection system based on multi-channel radio-frequency signals. The useful WIZnet Maker angle is concrete: the disclosed preprocessing module combines an STM32 MCU, an AD7606 8-channel ADC, and a WIZnet W5500 network protocol chip to move collected RF data toward a cloud training module or a decision host. The patent shows how an embedded RF acquisition front end can turn eight channels of drone-controller signal power into structured data, then use wired…
