How Does W5500 Fit into an STM32 Predictive Maintenance Datalogger?

This STM32F407 datalogger scaffold assigns W5500 over SPI for Modbus TCP and web access, while sensors, FreeRTOS, and FATFS frame predictive maintenance.

Benjamin

Published June 26, 2026

166 UCC

11 WCC

31 VAR

2 Following

Original author: Honorat GBEDAGBEOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

Intended SPI Ethernet controller for Modbus TCP and web access; CubeMX reserves W5500 CS/RST pins.

WIZnet parts

W5500 Datasheet

Project description

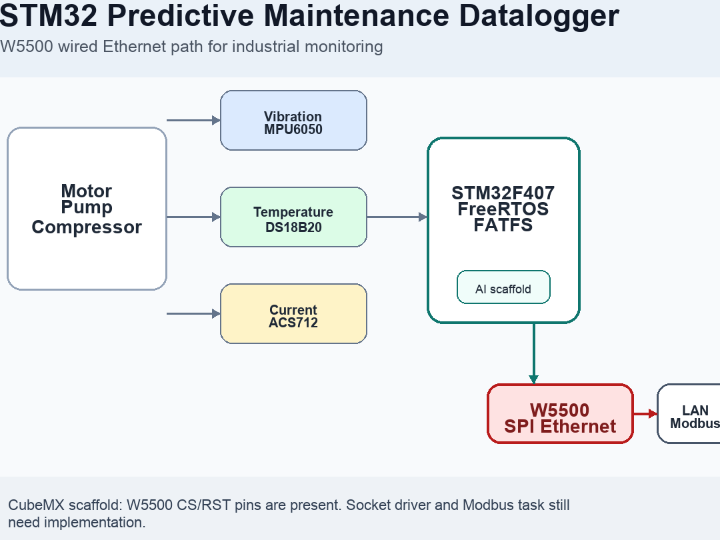

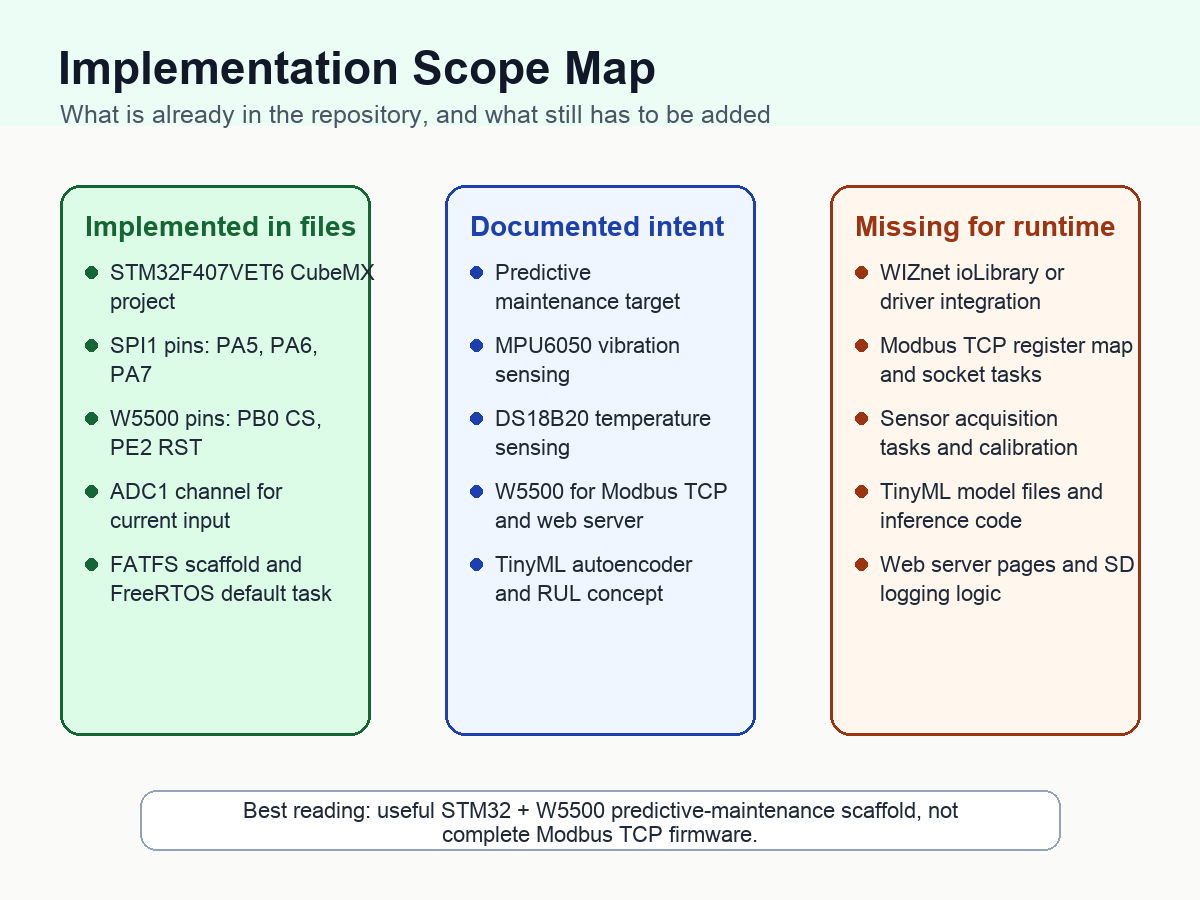

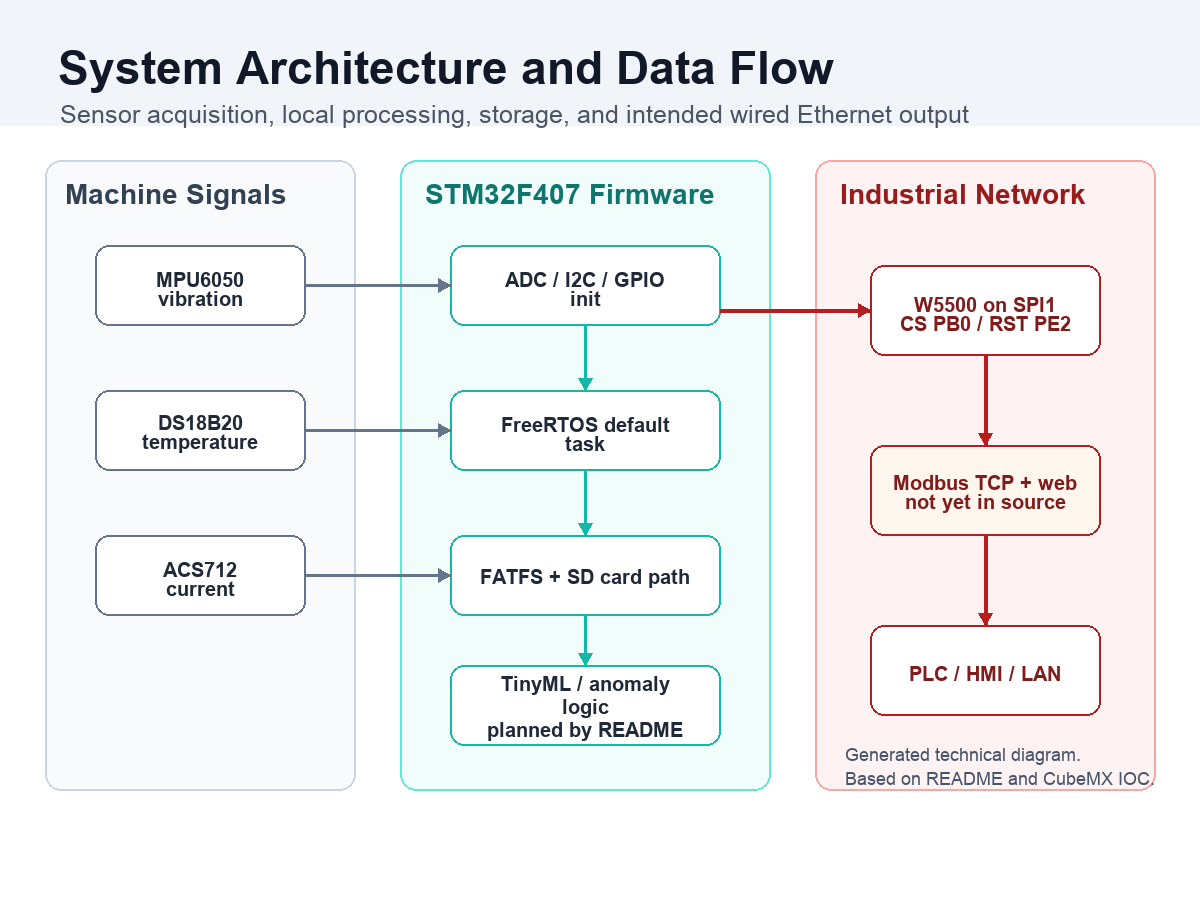

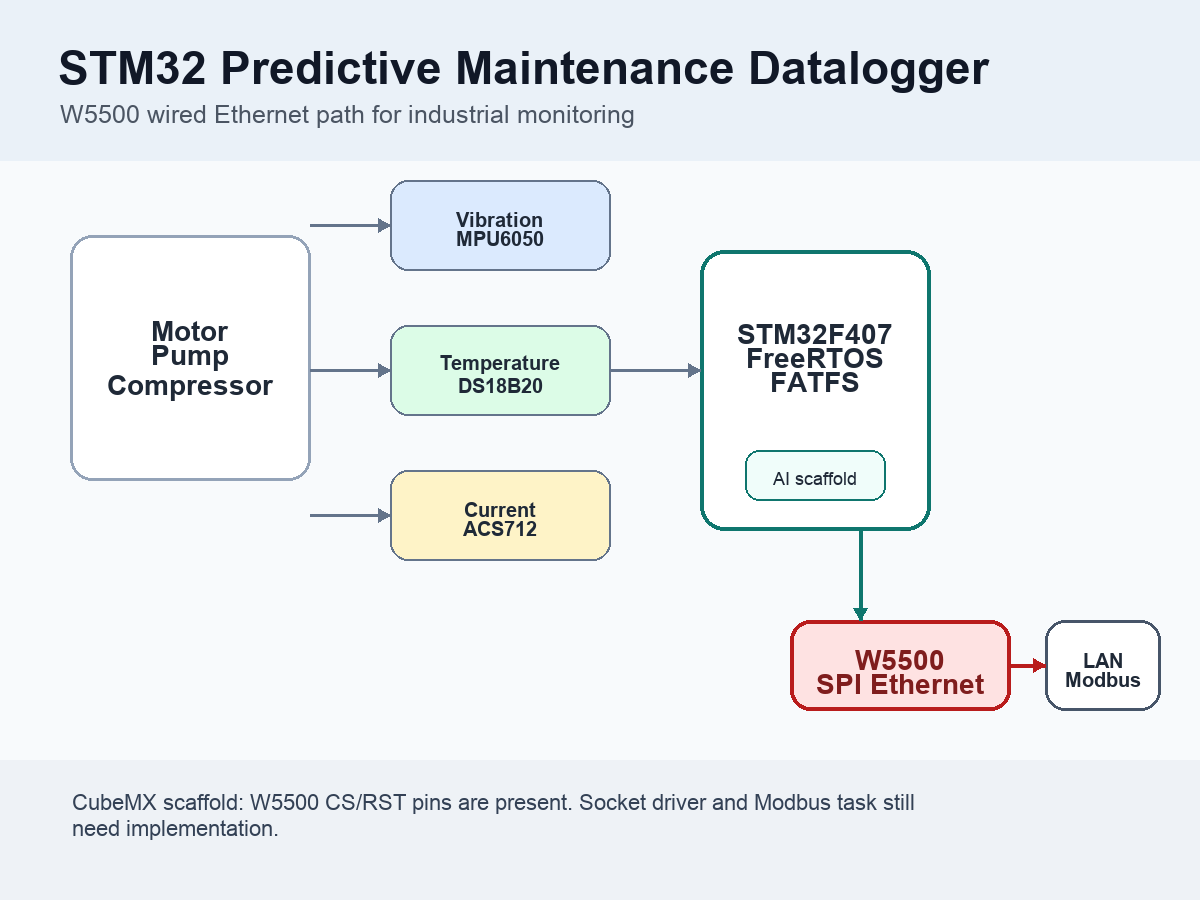

Overview Honorat GBEDAGBE is a GitHub maker with public C firmware repositories, including this STM32 datalogger and a gesture-control robotic arm project. This repository defines an intelligent industrial datalogger concept for predictive maintenance, using an STM32F407VET6 as the controller and a WIZnet W5500 as the intended wired Ethernet interface for Modbus TCP and a small web interface. The important reading is that this is an early STM32CubeIDE scaffold, not a finished industrial firmware release. The README describes a multi-physics maintenance node for pumps, motors, compressors…
