How Does a W5500 Pico Node Drive Four DMX512 Ports from Art-Net and sACN at 40 Hz?

Components

Hardware components

WIZnet parts

Project description

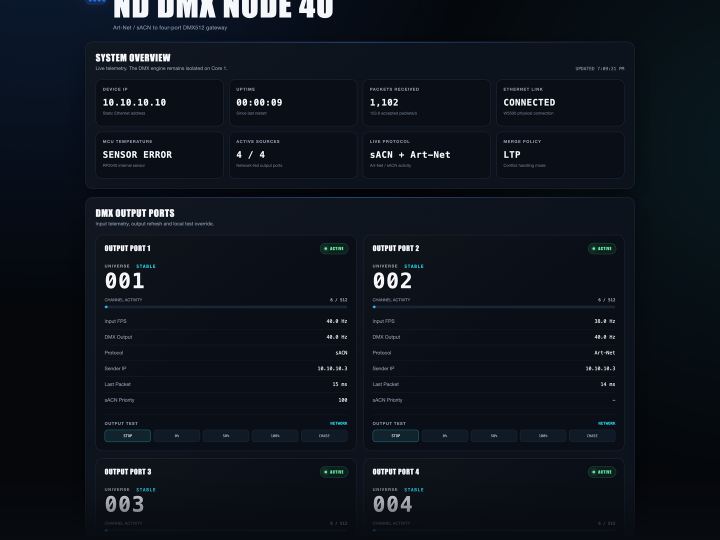

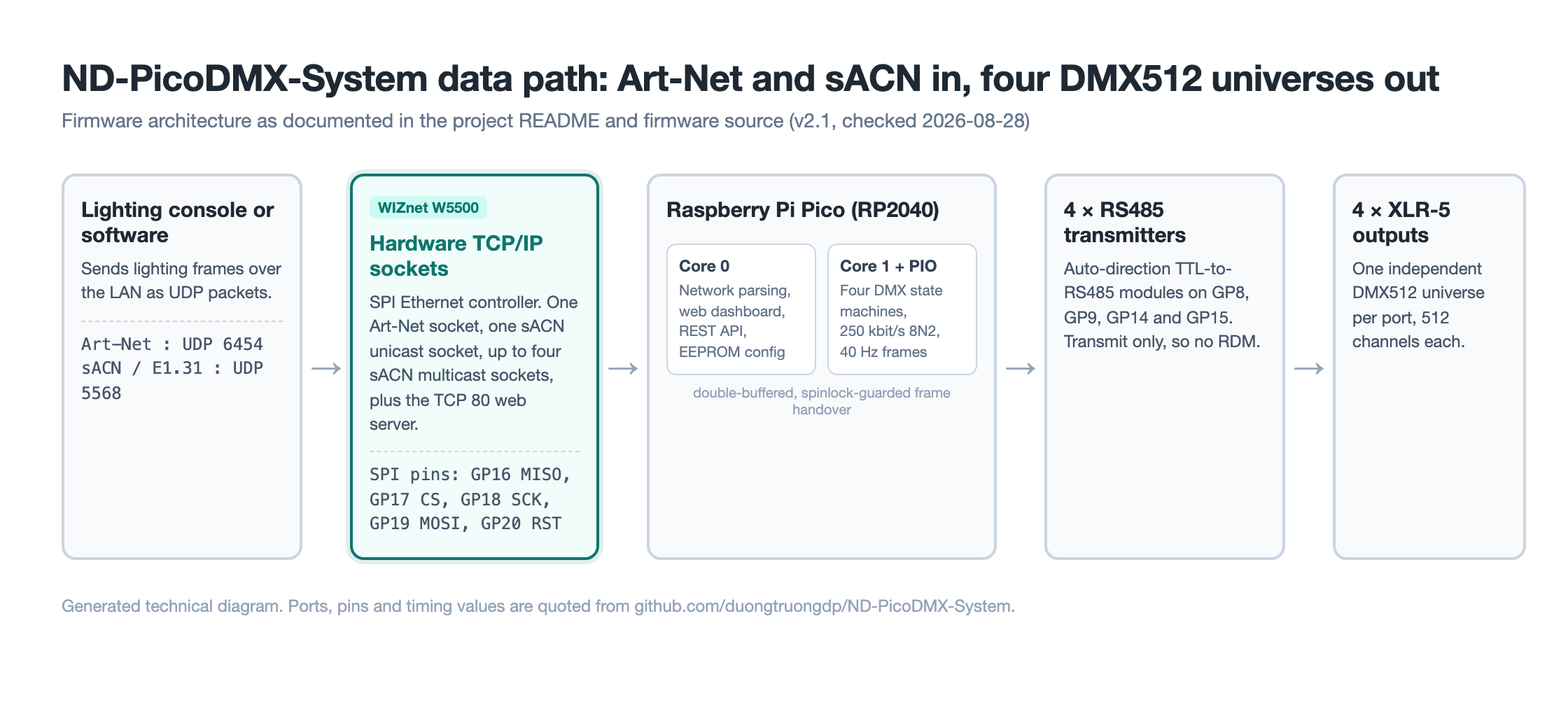

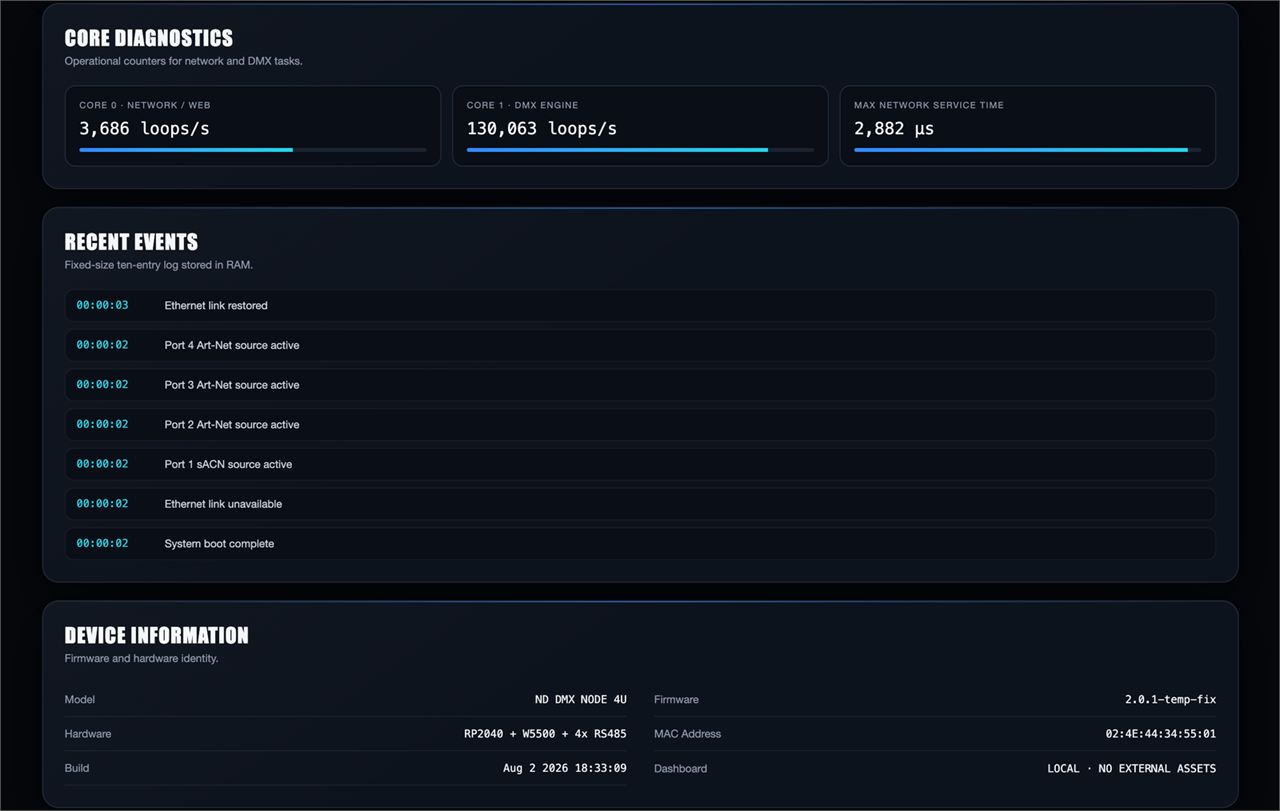

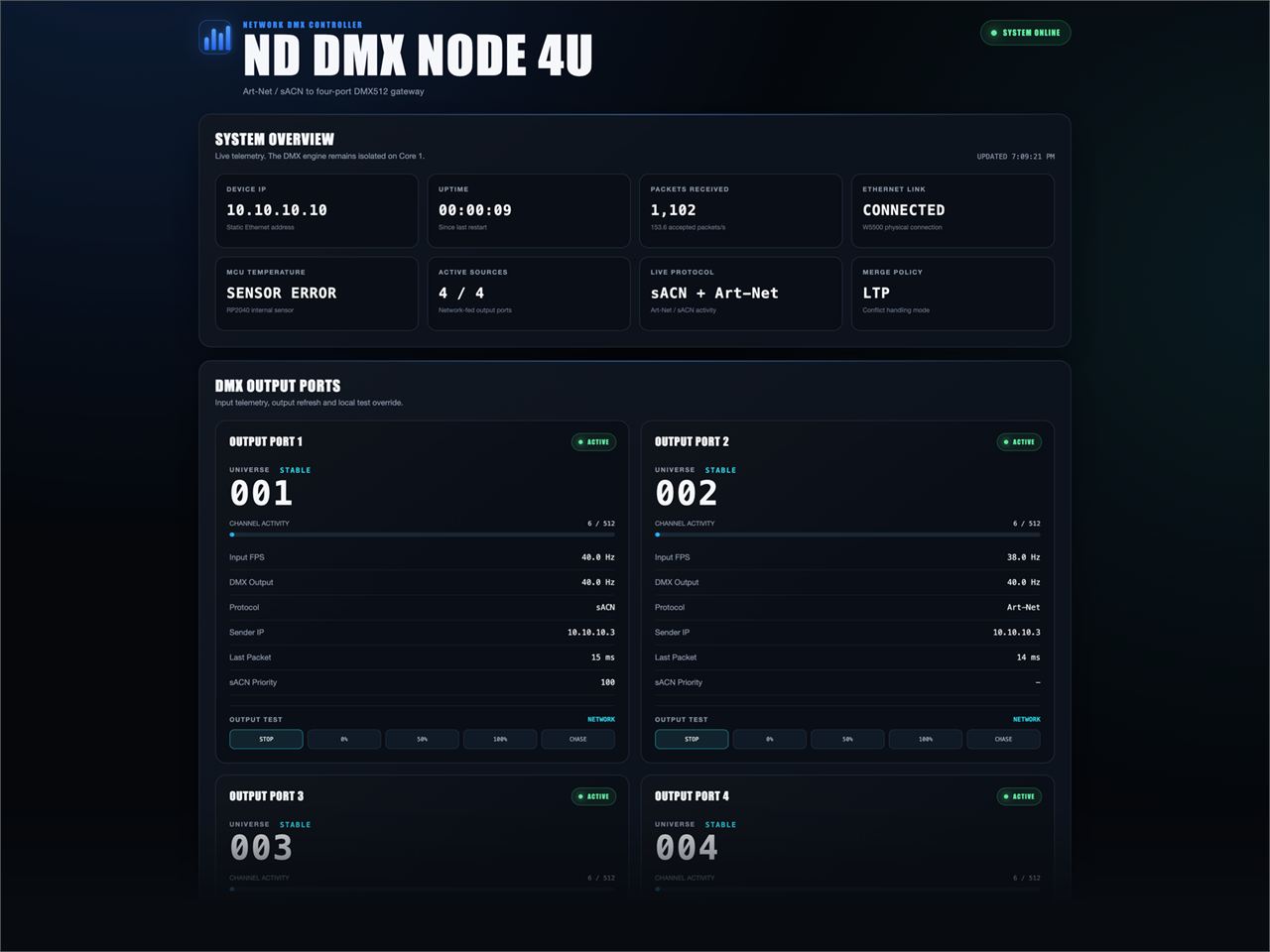

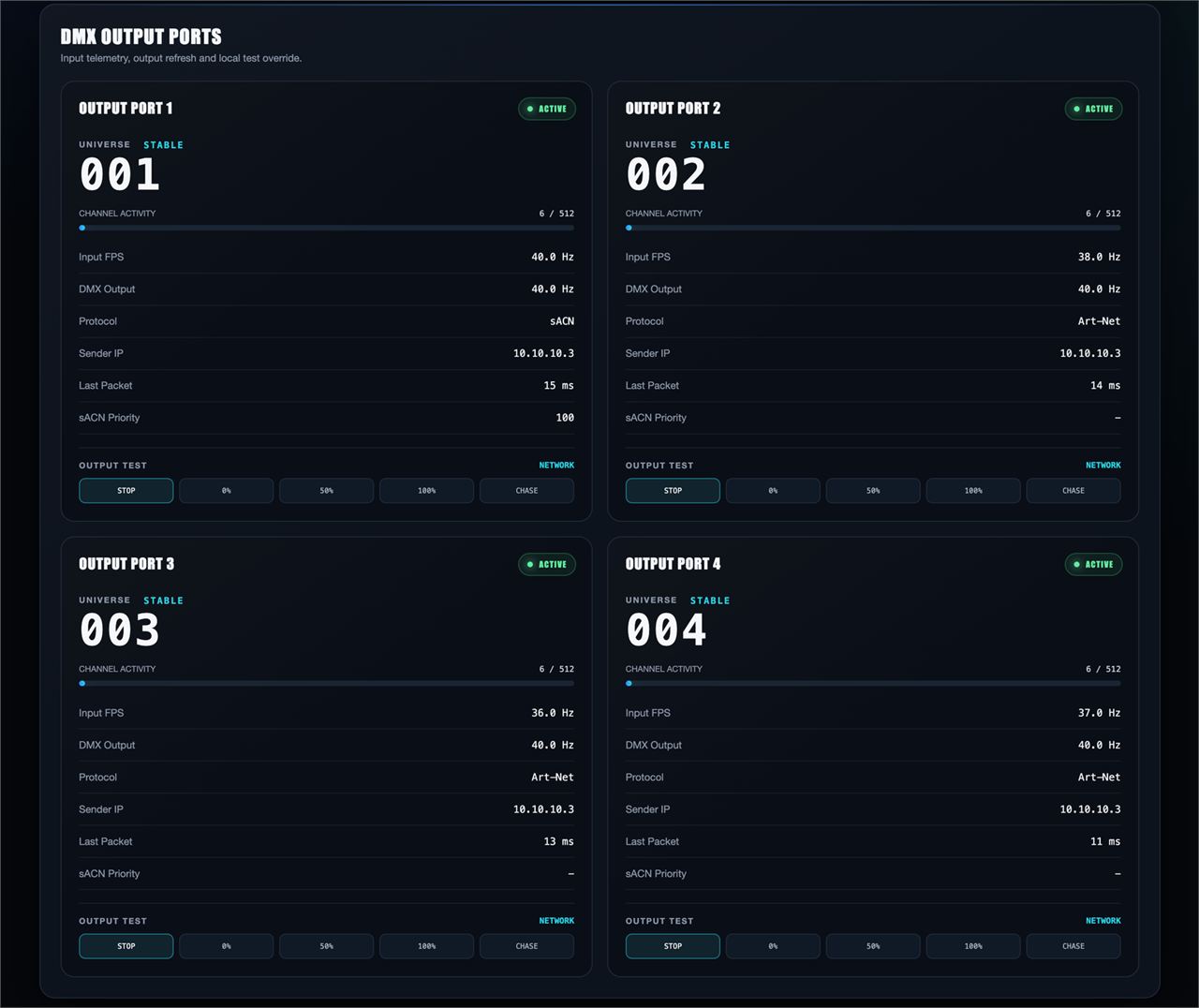

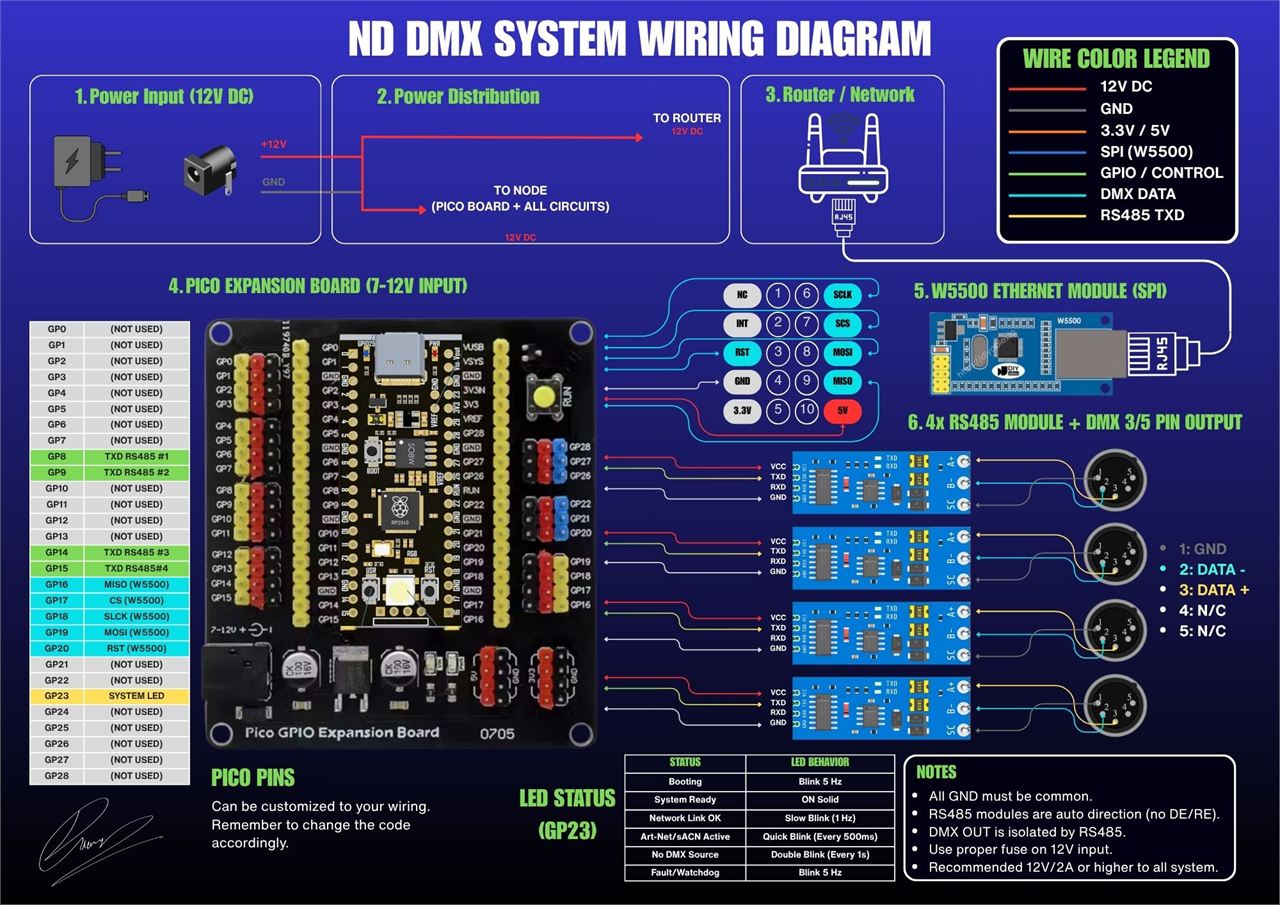

What Is ND-PicoDMX-System and Who Builds It? ND-PicoDMX-System is an open-source, four-port Art-Net and sACN to DMX512 node assembled from a Raspberry Pi Pico, a WIZnet W5500 SPI Ethernet module, and four auto-direction RS485 transmitters. The firmware receives lighting data over wired Ethernet through the W5500's hardware sockets and generates four independent DMX512 universes with the RP2040's PIO blocks, while a web dashboard stored inside the firmware flash handles configuration and diagnostics. The maker publishes as Andy Truong (duongtruongdp), lists Vietnam as his location, and…
