Bifrost Dual W5500 VLAN Bridge for Raspberry Pi Pico

A Pico prototype bridges two W5500 modules in MACRAW mode and applies simple VLAN tag logic.

Benjamin

Published June 01, 2026 · © Apache License 2.0 (Apache-2.0)

Original author: TetrushOriginal source (new tab)

Bifrost Dual W5500 VLAN Bridge for Raspberry Pi Pico

Components

Hardware components
Software Apps and online services

WIZnet parts

Project description

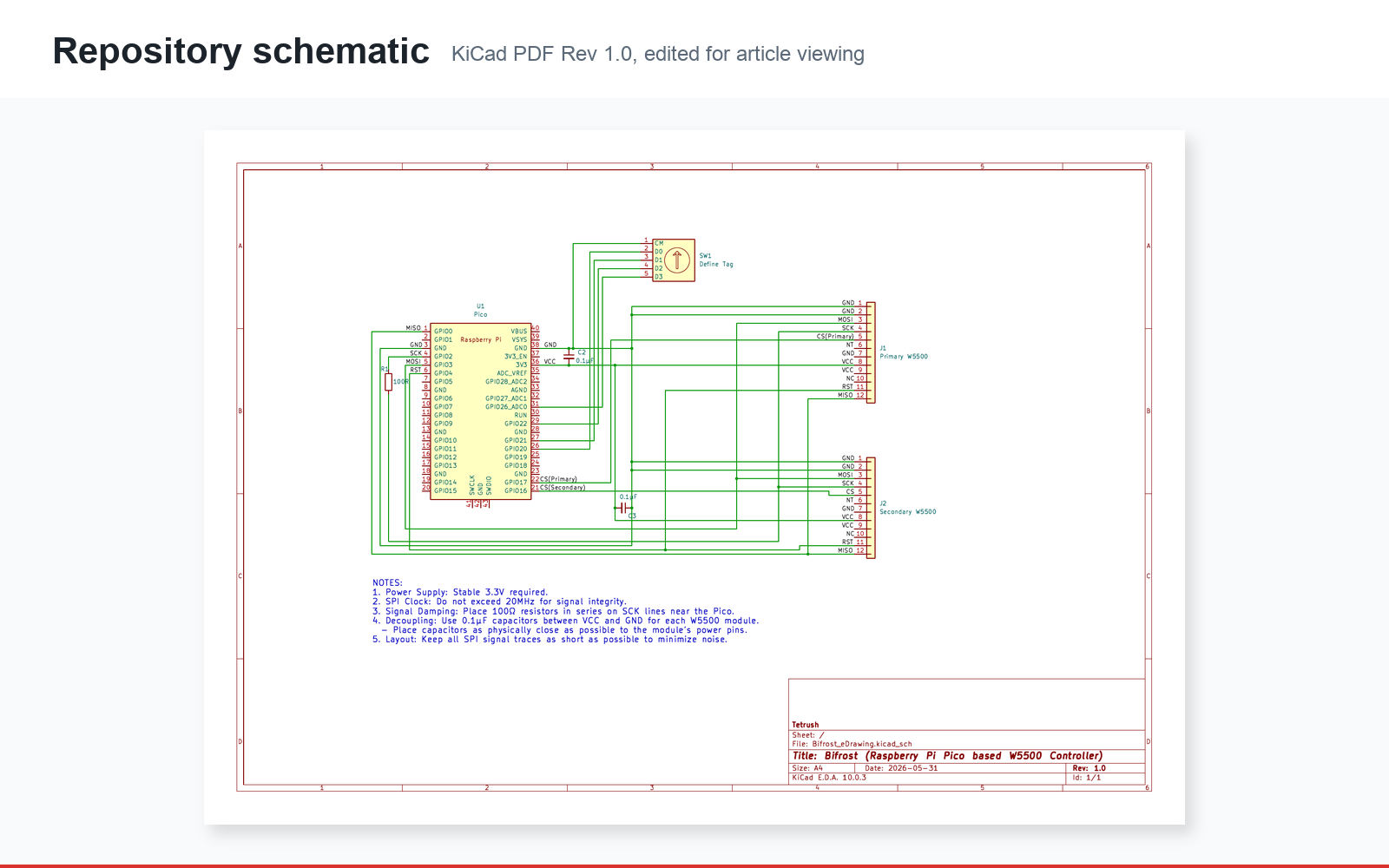

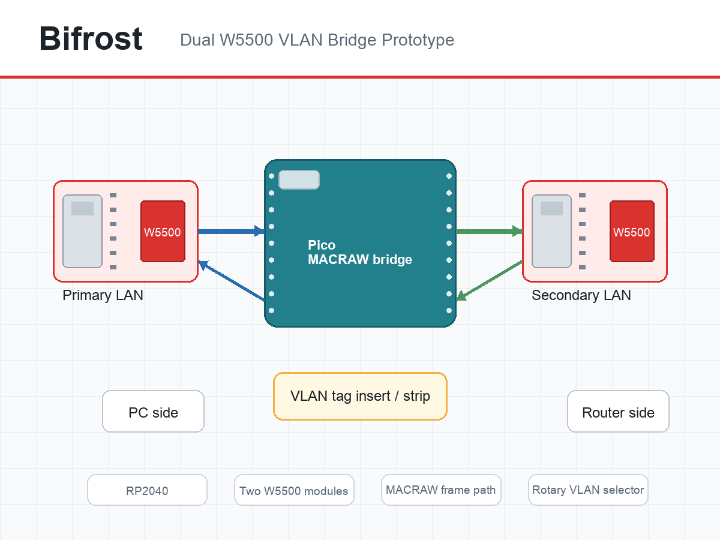

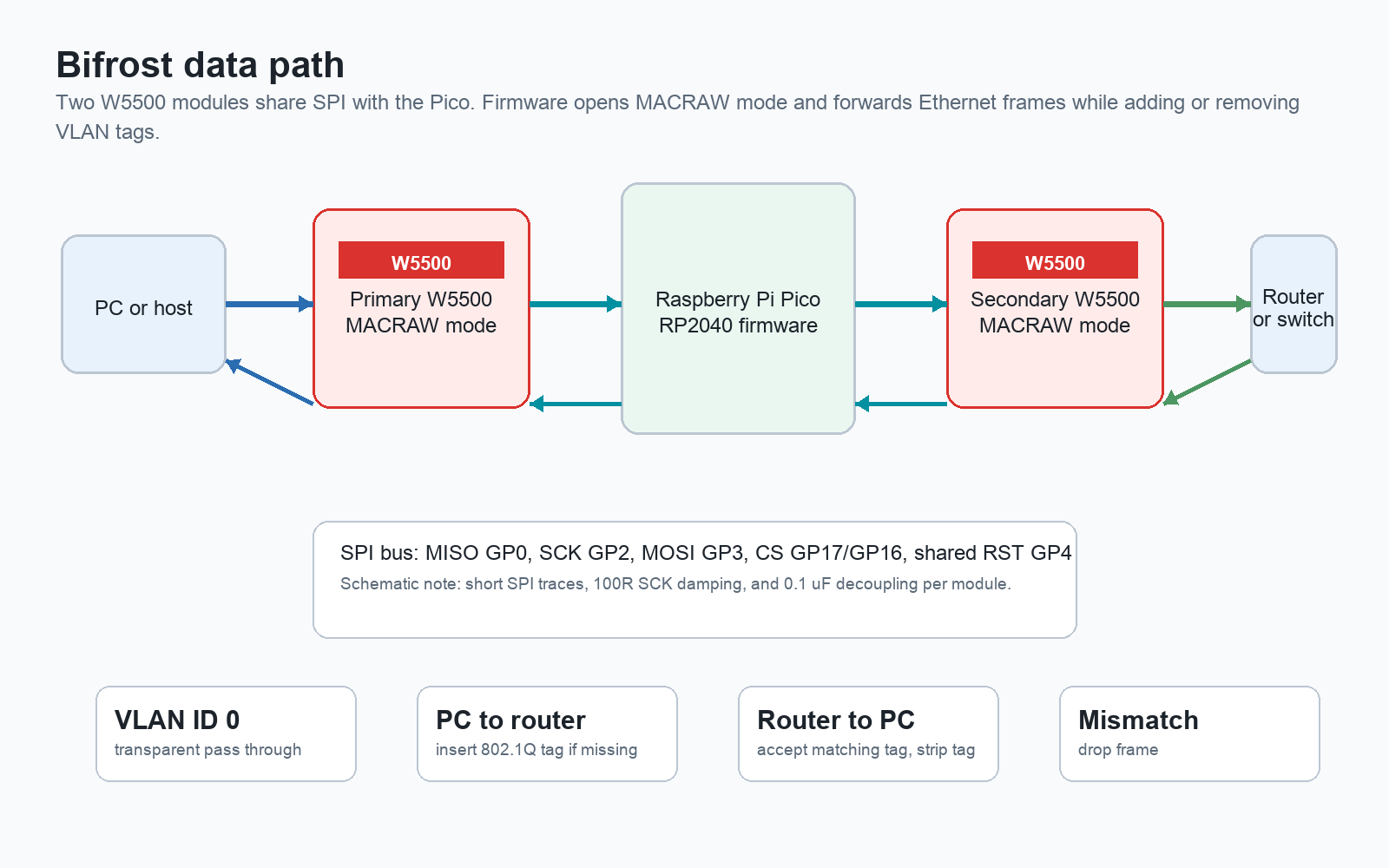

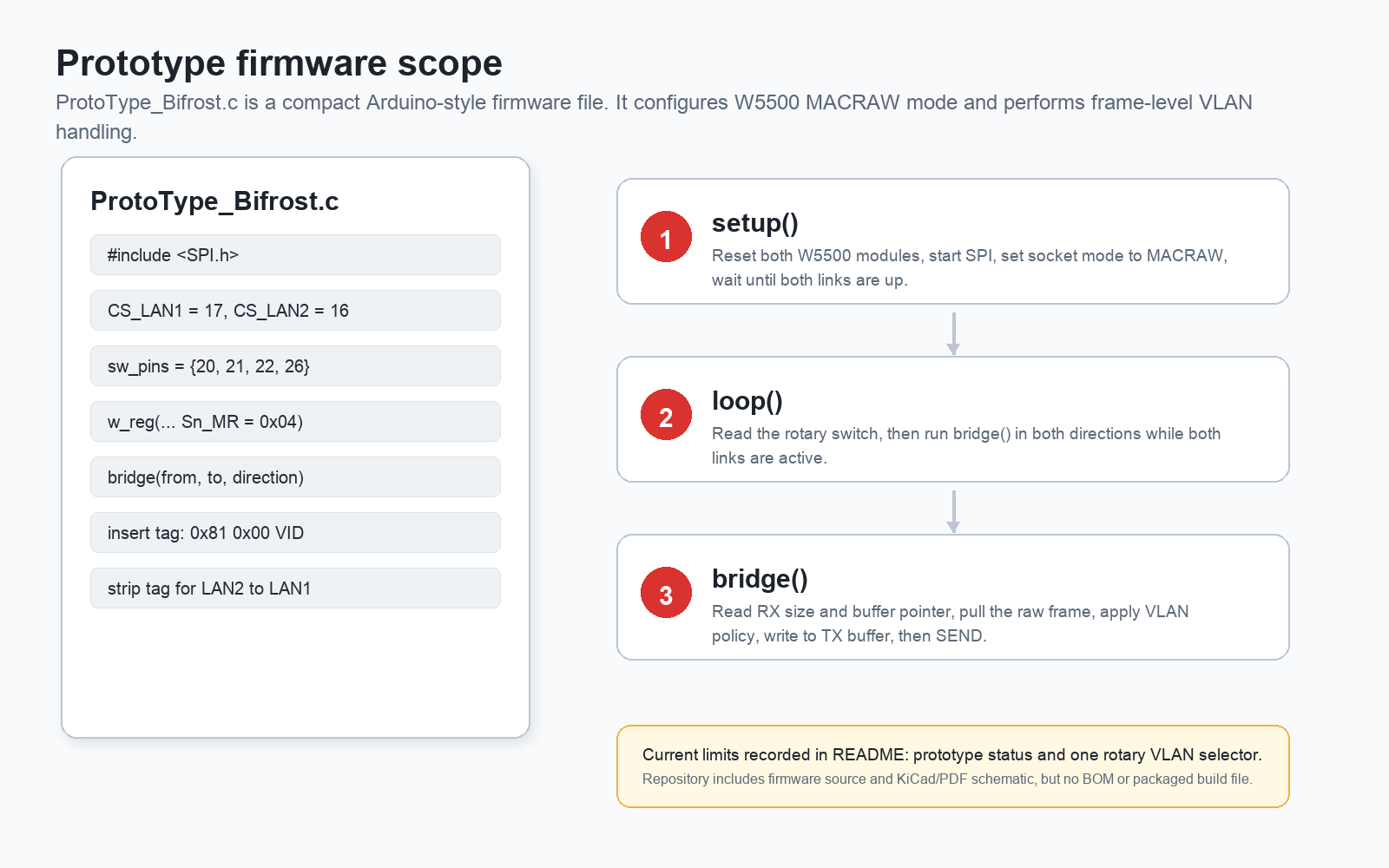

Bifrost as a Dual-Port W5500 Bridge Bifrost is a Raspberry Pi Pico prototype that connects two W5500 Ethernet modules and forwards Ethernet frames between them while applying simple VLAN tag rules. Instead of using the W5500 as a normal TCP or UDP endpoint, the firmware opens the chip in MACRAW mode and handles raw Ethernet frames at the RP2040 level. That makes the project interesting for makers who want to explore what the W5500 can do below application sockets: packet forwarding, 802.1Q tag insertion, tag stripping, and link-level filtering. The repository is compact. It contains one…
