ESPHome-W5500-Ethernet-on-ESP32-boards
Playing around with the ESPHOME and W5500 ethernet module on different ESP32 boards. Goal is to be able to use SPI for ethernet and I²C for other sensors or ext
0
Components
Hardware components
WIZnet - W5500
x 1
Espressif - ESP32
x 1
Project description

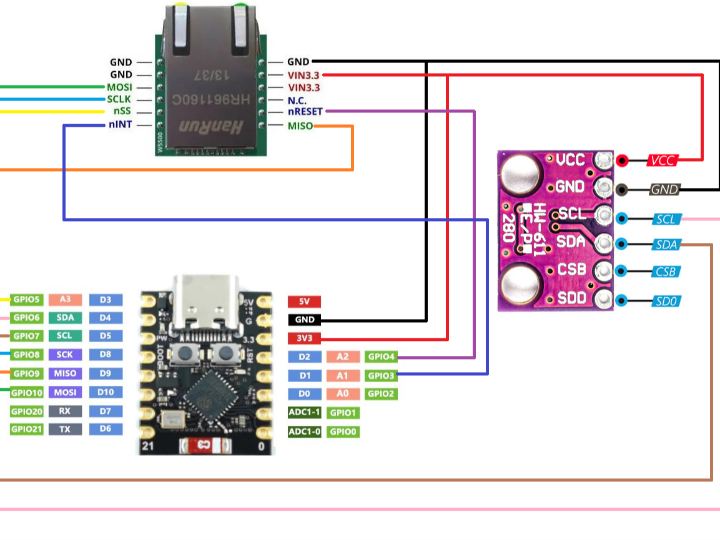

Hardware wiring schema And even with this small sized board, there is some room for extra connections! Possible improvements to investigate: CLK wire for the W5500 SPI bus is set to GPIO08 GPIO08 is also the linked to the status led of the ESP32 C3 super mini development board possible or better to use GPIO02 instead? update 18.01.2024: switching CLK to GPIO02 did not seem to work... ESPHome config At first, I only got it to work with the arduino framework: esphome: name: esp32c3-super-mini friendly_name: esp32c3-super-mini esp32: board: esp32-c3-devkitm-1 framework: type: arduino # Enable…
