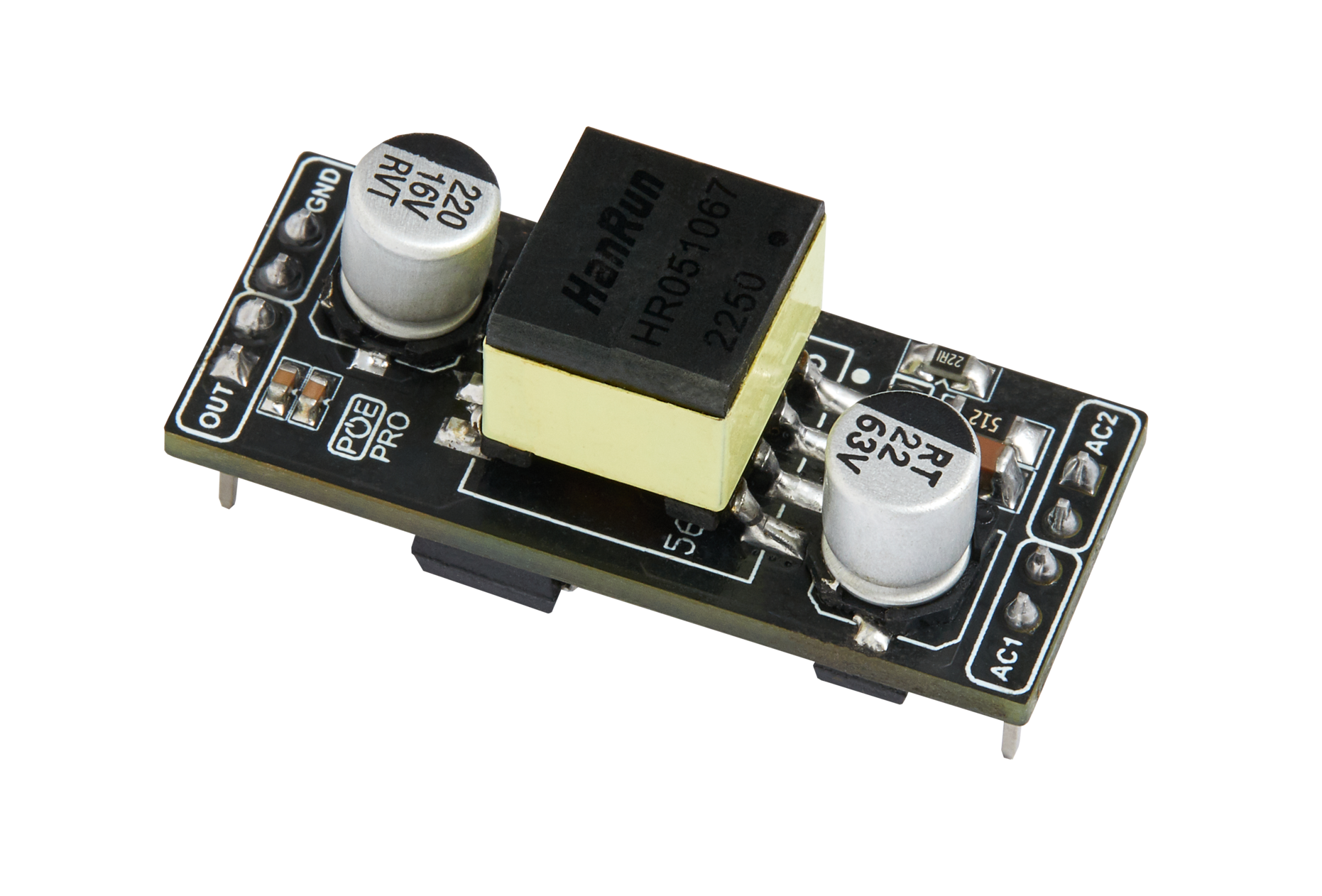

Usage and Specification WIZPoE-P1

Overview​

By using WIZPoE-P1, which supports both Mode A and Mode B, you can efficiently power external applications within the 7W range without the need for a power cable, not only for Ethernet but also for various external applications

Features​

• IEEE802.3af compliant
• Mode A(Endspan), Mode B(Midspan)
• Wide input voltage range 40Vdc ~ 60Vdc
• High DC/DC convertion efficiency
• Isolation
• Internal build in 2 channel bridge rectifiers

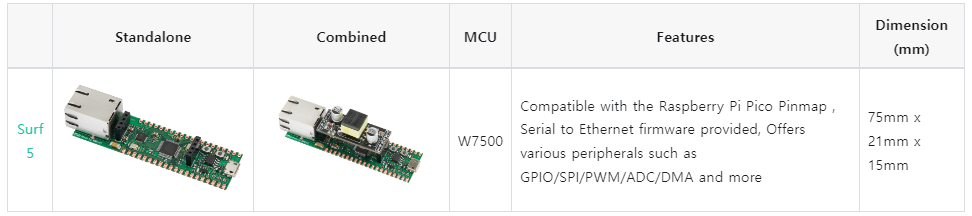

Compatible WIZnet Modules​

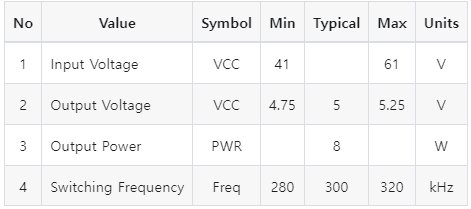

Electrical Parameter technical standards​

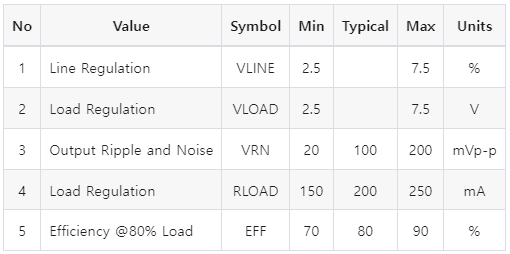

Electrical Characteristics​

Hardware Specification​

Pin definition​

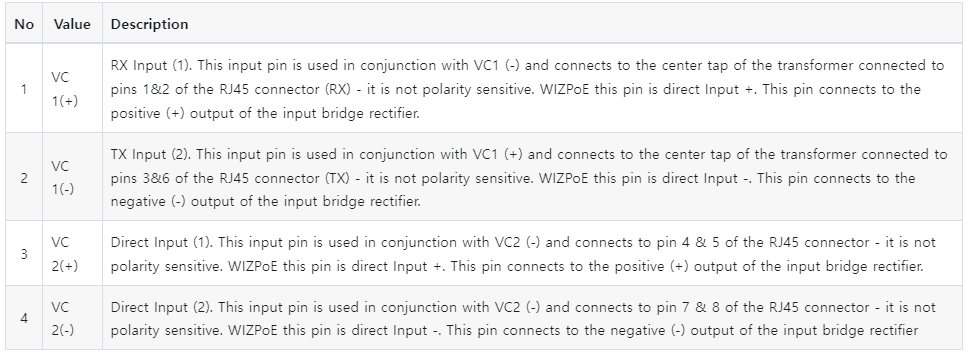

PoE Input - P1​

PoE Output - P2​

Technical Reference​

Dimension (Unit : mm)​
