Raspberry Pi 4 PLC Industrial controller

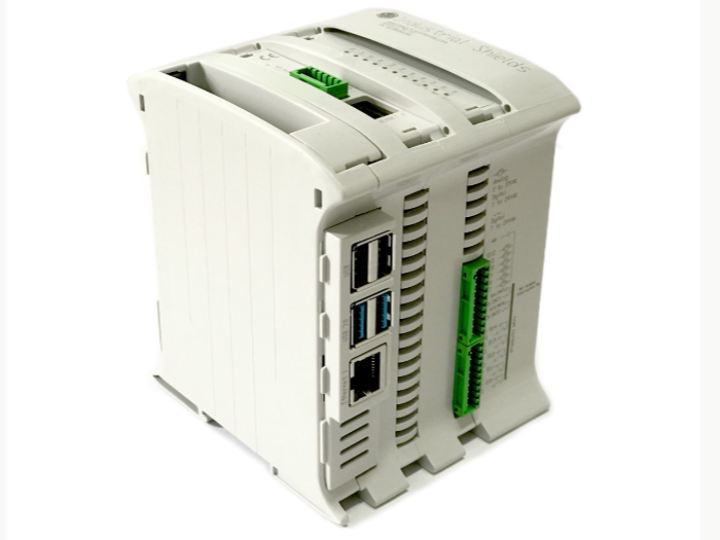

It is PLC industrial computer powered by Raspberry Pi 4 SBC offering by Boot&Work Corp.

Raspberry Pi 4 PLC Industrial controller

Components

Hardware components

WIZnet parts

Project description

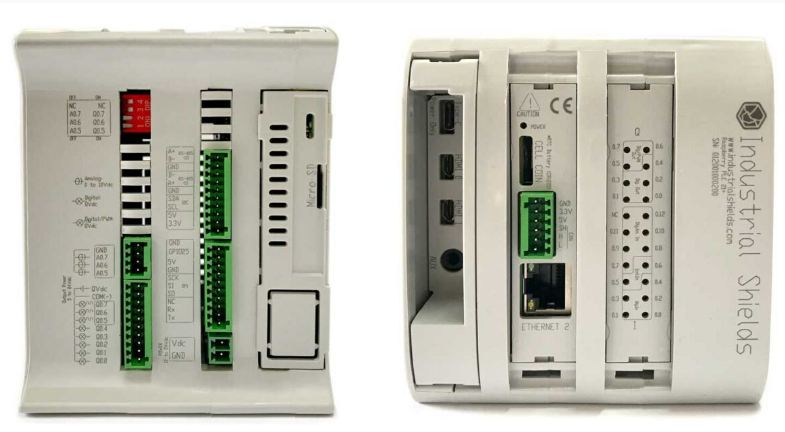

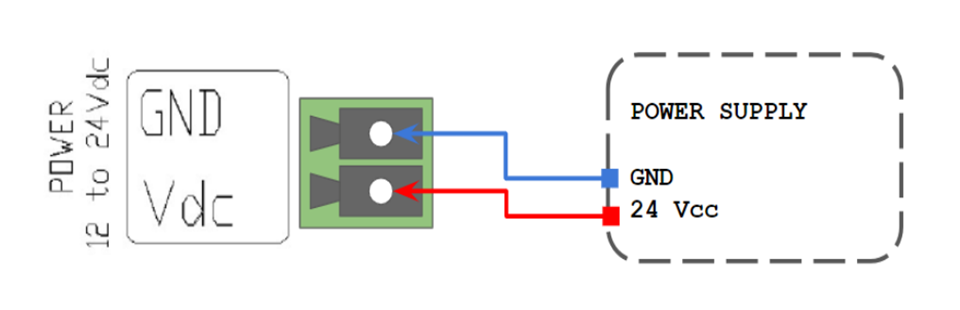

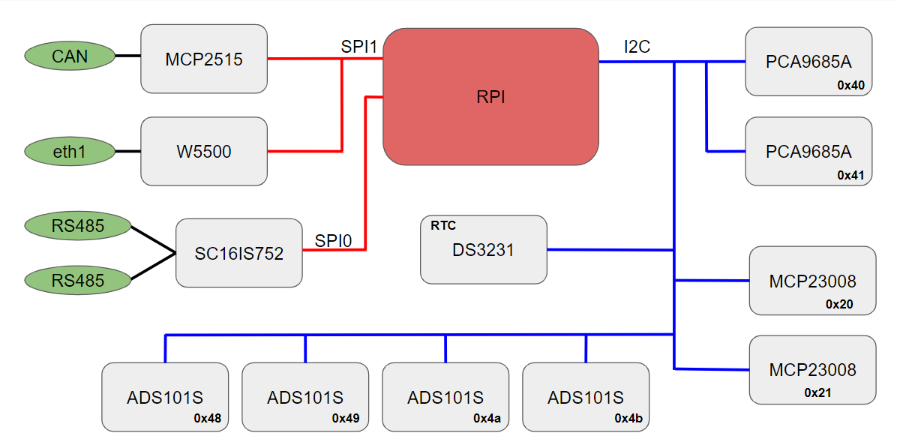

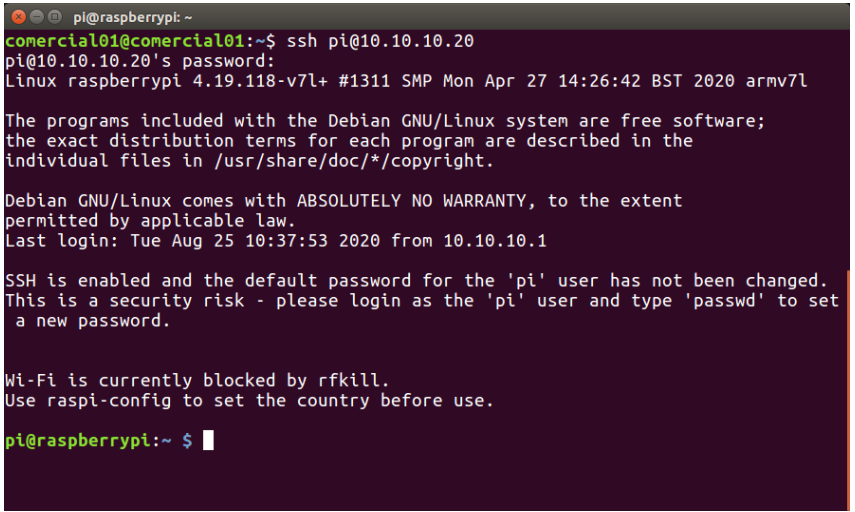

Introduction It is equipped with up to 36 digital inputs, 16 analog inputs, 8 analog outputs, and 6 interrupts, as well as communication interfaces such as CAN bus, up to 2x Ethernet ports, dual RS-485, WiFi, and Bluetooth. Features Raspberry Pi 4 SBC with 2GB to 8GB RAM, WiFi 5, and Bluetooth 5.0 connectivity 8GB MicroSD card 2 Micro HDMI ports 2 Ethernet ports USB – 4 USB ports (2 USB 3.0, 2 USB 2.0) I2C, 2 RS485, SPI Serial TTL CAN via terminal blocks How to Use Connect connect PLC to power supply Access to Raspberry Pi $ping 10.10.10.20 After connecting the Ethernet connector, ping to…
