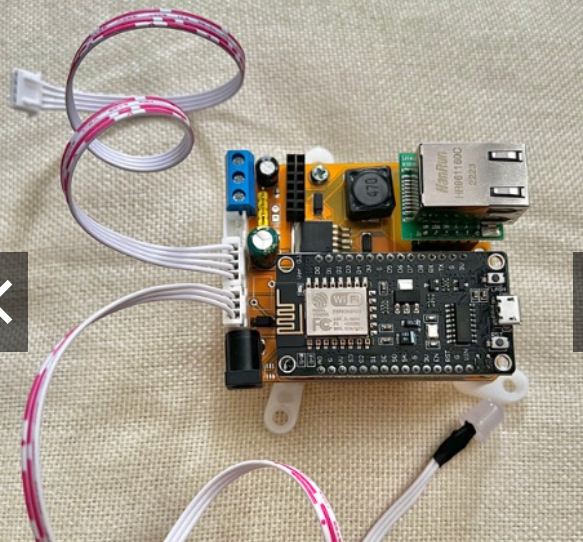

JuanFi Pisowifi LAN based coinslot

Components

Hardware components

Project description

Juanfi system & LPB Pisowifi/Pisofi Supported Inclusion: -BaseBoard -Esp8266 nodemcu with BIN(Firmware) -w5500 Lan module -Dual led indicator (RED-steady/GREEN-Insert Coins) -Coinslot Cable Features: -Coinslot Power Cut-off -Blinking/Running Led Blinker Support -Pin header for LCD & Clear pin -No auto credits -Can convert to Wireless coinslot -Pin switch D1/D2 = Switch1 (LPB/PISOFI) D4/D8 = Switch2 (JUANFI)
