Connect your device to an Ethernet network

Sometimes there is a need to connect a device to an Ethernet network. To solve this problem, there are a huge number of different network co

WIZnet

Published August 30, 2022

Original author: Donets Anton · KazakstanOriginal source (new tab)

Connect your device to an Ethernet network

Components

Hardware components

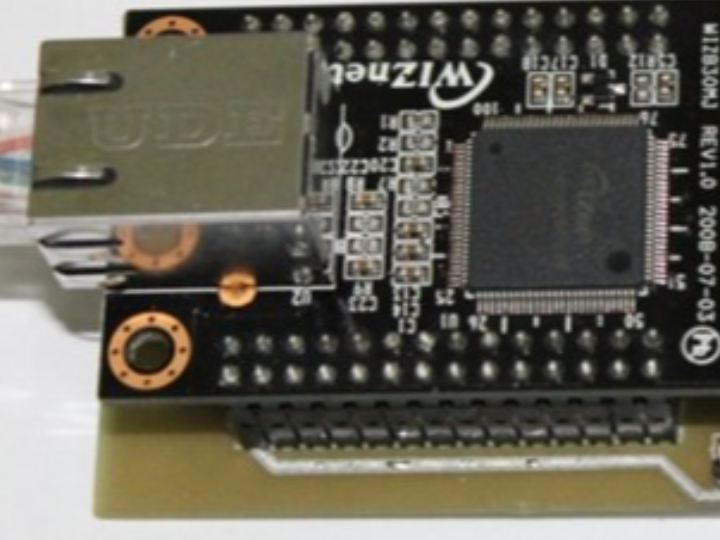

W5300

WIZnet - W5300

x 1

Project description

Why the WIZNET W5300 chip? It has: a) a hardware-implemented TCP/IP protocol stack, b) a parallel 8/16-bit data bus for exchanging information with the control processor (UP), c) the maximum data exchange rate is almost 50 Mbps. g) a built-in PHY transceiver (physical layer transceiver), e) the internal memory of the transceiver 128 KB.
