[Recuration]Network Camera Using W5300

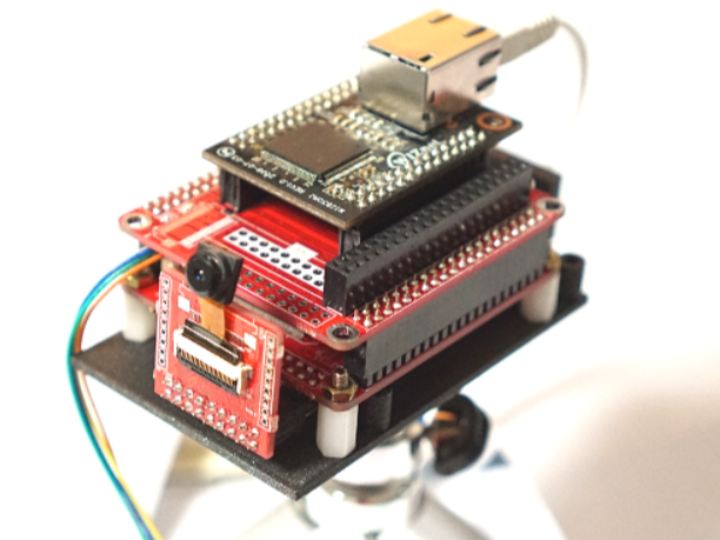

This project is to obtain camera images and transmit camera images over the network using the W5300, which enables high-speed network communication.

Aimee0

Published December 04, 2023

120 UCC

25 WCC

29 VAR

Original source (new tab)

[Recuration]Network Camera Using W5300

Components

Hardware components
W5300

WIZnet - W5300

x 1

Project description

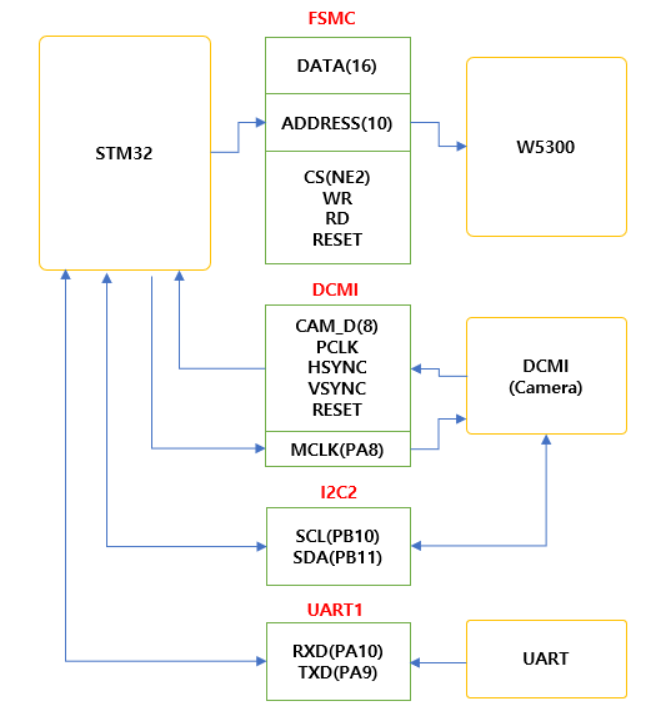

Hardware W5300 and STM32 are interfaced through the FSMC. The STM32 and the camera interface through DCMI and set up the camera through I2C communication. Software Camera control code : https://github.com/STMicroelectronics/stm32-ov2640 Project code : https://github.com/elabsystem/STM32_RP/tree/master/ex12_w5300_netcam/Src
