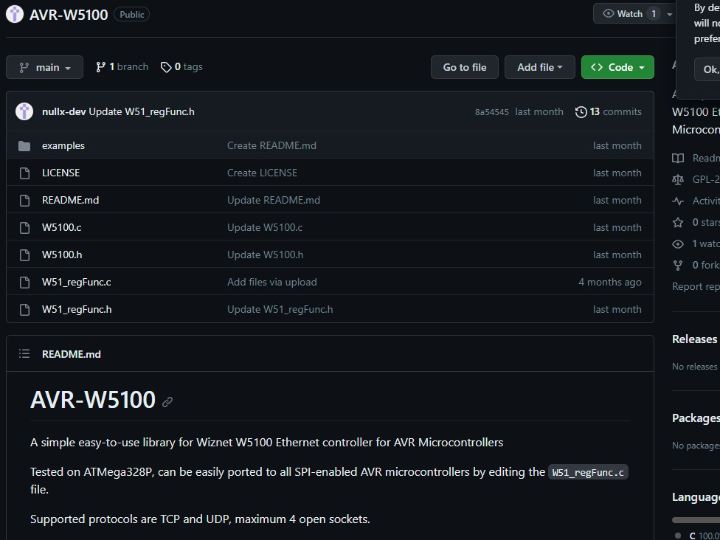

AVR-W5100

AVR-W5100

A simple easy-to-use library for Wiznet W5100 Ethernet controller for AVR Microcontrollers

Tested on ATMega328P, can be easily ported to all SPI-enabled AVR microcontrollers by editing the W51_regFunc.c file.

Supported protocols are TCP and UDP, maximum 4 open sockets.

This library is only for W5100, not W5500

All examples are located in the example directory.

Function Descriptions

W5100 Initialization Functions

void W51_init(void);

This initializes the W5100. Please adjust the pin settings in W51_regFunc.h file by your microcontroller model.

If your microcontroller has SPI speed lower than 14MHz, you can remove this line in W51_regFunc.c: SPSR |= (1 << SPI2X);



void W51_setINET(uint8_t* ipaddr, uint8_t* macaddr, uint8_t* gateaddr, uint8_t* subaddr);

Function to assign static IPv4 address to W5100

uint8_t* ipaddr: Array that contains IPv4 address of W5100

uint8_t* macaddr: Array that contains W5100 MAC address

uint8_t* gateaddr: Array that contains gateway (router) address

uint8_t* subaddr: Array that contains subnet mask





Basic socket operations

SOCKET createSocket(uint8_t sockNum, uint8_t* IP, uint16_t port, uint8_t protocol);

This function creates and returns socket structure.

uint8_t sockNum: Physical socket number (0 - 3)

uint8_t* IP: Array that contains the IPv4 address of socket. In case of listening socket, it should be set to 0.0.0.0

uint16_t port: Socket port number (0 - 65535)

uint8_t protocol: Socket protocol, use W51_PROTOCOL_TCP or W51_PROTOCOL_UDP defines

NOTE: It doesnt assign the socket to W5100, it only initializes the structure



uint8_t W51_initSocket(SOCKET sock);

This function writes the data from socket structure to W5100.

SOCKET sock: Socket structure with all necessary parameters



uint8_t W51_openSocket(SOCKET sock);

A function to open socket.

SOCKET sock: Initialized socket structure with all necessary parameters



uint8_t W51_closeSocket(SOCKET sock);

A function to close a socket.

SOCKET sock: Opened, initialized socket structure with all necessary parameters

NOTE: This function does not delete the socket structure, it only closes the physical socket on W5100



uint8_t W51_connectSocket(SOCKET sock);

A function to connect to the server (Only used in TCP Mode)

SOCKET sock: Opened, initialized socket structure with all necessary parameters



uint8_t W51_listenSocket(SOCKET sock);

Function to listen for incoming connections

SOCKET sock: Opened, initialized socket structure with all necessary parameters



uint8_t W51_disconnectSocket(SOCKET sock);

A function to disconnect from the server (Only used in TCP Mode)

SOCKET sock: Opened, initialized socket structure with all necessary parameters



uint8_t W51_sendData(SOCKET sock, uint8_t* data, unsigned int datalen);

Function to send data through socket

SOCKET sock: Opened, initialized socket structure with all necessary parameters

uint8_t* data: Data buffer to be sent

unsigned int datalen: Length of the data to be sent

NOTE: The maximum one transaction transmitting length is 2048 bytes



uint16_t W51_getReceivedDataLen(SOCKET sock);

Function to get received data length in bytes

SOCKET sock: Opened, initialized socket structure with all necessary parameters



uint8_t W51_receiveData(SOCKET sock, unsigned int length, uint8_t* data);

Function to receive data from a socket

SOCKET sock: Opened, initialized socket structure with all necessary parameters

unsigned int length: Length of data to be received

uint8_t* data: Buffer for data to be received
