micro_ros_arduino

Project Overview

ROS 2 (Robot Operating System 2) is the de facto standard middleware for industrial robotics development — autonomous vehicles, drones, collaborative robots, and more. However, running the full ROS 2 stack requires a Linux OS and hundreds of megabytes of RAM, making it completely impractical for small microcontrollers like the STM32, ESP32, or RP2040.

micro-ROS was created to solve exactly this problem. It is a lightweight middleware that lets you use ROS 2's core concepts — Publisher, Subscriber, Service, and Action — even in bare-metal environments with only tens of kilobytes of RAM. micro_ros_arduino is the official repository that packages micro-ROS as a precompiled library, ready to use directly from the Arduino IDE or CLI.

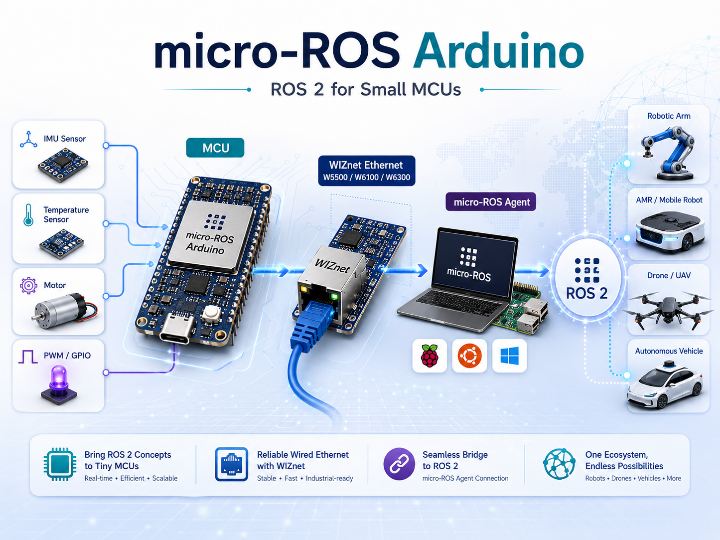

Core Architecture

Understanding micro-ROS requires knowing three layers:

[ ROS 2 Host PC / Raspberry Pi ]
        │
   micro-ROS Agent (Docker)       ← "Proxy" in the ROS 2 world
        │  (Serial / UDP / Ethernet)
[ MCU — Arduino Sketch ]
   micro-ROS Client               ← Micro XRCE-DDS protocol
        │
   Sensors (I2C/SPI/ADC)  ←→  Actuators (PWM/GPIO)

What is the micro-ROS Agent?

An MCU cannot run the full DDS (Data Distribution Service) stack. Instead, it connects to the Agent using eProsima's Micro XRCE-DDS client-server protocol. The Agent then creates the actual DDS entities on its side, acting as a proxy that registers the MCU as a real participant in the ROS 2 network.

• If the Agent is not running, the MCU node simply does not exist in the ROS 2 world
• The Agent is typically run as a Docker container on a PC or Raspberry Pi

Sensor / Actuator Communication

micro-ROS does not define any protocol for sensor or actuator communication — that remains plain embedded firmware. Inside the Arduino sketch:

• Reading sensors: In a timer callback, read values via I2C/SPI/ADC → pack into a ROS 2 message like sensor_msgs::Imu → call rcl_publish()
• Controlling actuators: A subscriber callback receives geometry_msgs::Twist → directly drive a motor via PWM/GPIO inside that callback

"MCU ↔ Agent communication" and "MCU ↔ hardware I/O" are completely independent paths. DDS and XRCE are not involved in hardware I/O at all.

Supported Boards & Transports

Officially Supported Boards

These boards are directly tested and maintained by the micro-ROS team.

Community-Contributed Boards

These boards were validated by external contributors and added via pull requests. They are outside the micro-ROS team's official support scope but are functional in practice.

What the .meta Files Mean

micro-ROS applies different memory pool configurations depending on how much RAM the MCU has.

Known Limitations: As stated in the README's "Known Issues" section, the precompiled distribution library is Serial-centric. WiFi/Ethernet support is added via per-board conditional compilation. Teensy boards require a Teensyduino patch; Arduino Due/Zero require a SAM patch.

How Is It Different from ROS 1?

When first encountering micro-ROS, a natural question is: "How is this different from the original ROS?" Comparing it to rosserial — the standard way to connect MCUs to ROS 1 — makes micro-ROS's position even clearer.

ROS 1 vs. ROS 2 — Core Structural Differences

ROS 1 (2010–) relies on a single ROS Master that centrally manages the names and addresses of all nodes. If the Master crashes, the entire system stops. There was no real-time guarantee and no built-in security layer. It was convenient for research prototyping, but had serious limitations for production deployment.

ROS 2 (2017–) was designed to address all of these issues head-on.

The last LTS release of ROS 1, Noetic, reached end-of-life in May 2025. Starting new projects on ROS 2 is now effectively mandatory.

Comparison with rosserial

In the ROS 1 era, rosserial was the standard way to connect MCUs to ROS (GitHub: ros-drivers/rosserial, Stars 547 · Forks 523). maker.wiznet.io also has a published project demonstrating rosserial with WIZnet hardware.

Architecture Comparison

[ rosserial architecture ]
MCU (rosserial client)
  │  USB Serial or TCP
  ▼
rosserial_python / rosserial_server   ← Simple protocol bridge
  │
  ▼
ROS 1 Master → ROS 1 Nodes
 ──────────────────────────────────────
 [ micro-ROS architecture ]
MCU (micro-ROS client, Micro XRCE-DDS)
  │  Serial / UDP / Ethernet
  ▼
micro-ROS Agent                       ← Creates DDS entities as proxy
  │
  ▼
ROS 2 DDS network (no Master)

The rosserial bridge is simply a protocol translator — it converts MCU messages into ROS 1 format. The micro-ROS Agent, by contrast, creates actual DDS nodes on behalf of the MCU and registers the MCU as a real first-class participant in the ROS 2 world.

Feature Comparison

Which One Should You Choose?

rosserial is still a reasonable choice when:

• Integrating with an existing ROS 1 legacy system
• Rapid prototyping or educational use — you want to connect an MCU to ROS without complex setup
• A simple sensor node where Arduino + USB Serial is sufficient

micro-ROS is the right choice when:

• Starting a new ROS 2-based project (ROS 1 is EOL)
• Building industrial robots or AMRs that require real-time control
• You need DDS QoS, security, or node lifecycle management in a production system
• Multiple MCU nodes need to operate in a distributed environment

WIZnet perspective: rosserial already supports TCP connections via W5100/W5200/W5500 through ArduinoTcpHardware. micro-ROS has no official WIZnet example yet — which is precisely the open opportunity to claim first-mover position. If rosserial is "proven ROS 1 legacy connectivity," then micro-ROS + WIZnet is the chance to establish a new standard for the ROS 2 era.

WIZnet Product Integration Opportunities

Current Status → Not yet used

Neither the official nor community-supported board lists include any SPI Ethernet chip-based modules like the W5500, W6100, or W6300. The "Native Ethernet" transport uses only on-board PHY solutions (Portenta H7's lwIP, Teensy 4.1's NativeEthernet) — unrelated to WIZnet chips.

Why This Is an Opportunity

The Custom Transport API (rmw_uros_set_custom_transport()) requires implementing just four functions — open, close, write, and read — to connect any communication medium to micro-ROS.

WIZnet chips are uniformly abstracted through the Arduino Ethernet.h-compatible API (EthernetUDP), from W5500 all the way to W6300. Wrapping those four functions around an EthernetUDP socket is not technically difficult.

// Custom Transport skeleton (pseudocode)
bool wiznet_transport_open(uxrCustomTransport* transport) {
    Ethernet.begin(mac, ip);
    udp.begin(port);
    return true;
}
size_t wiznet_transport_write(uxrCustomTransport* transport,
                              const uint8_t* buf, size_t len, uint8_t* err) {
    udp.beginPacket(agent_ip, agent_port);
    udp.write(buf, len);
    udp.endPacket();
    return len;
}
size_t wiznet_transport_read(uxrCustomTransport* transport,
                             uint8_t* buf, size_t len,
                             int timeout, uint8_t* err) {
    // udp.parsePacket() + udp.read() ...
}

Product Positioning

Prior Art: mROS2 + W5500

A guide connecting an mros2-esp32 node to wired Ethernet via a WIZ850io (W5500) module on an ESP32-S3 over SPI is already published on maker.wiznet.io.

🔗 SPI-Ethernet Module W5500 Usage Manual for mros2-esp32
A guide switching an mros2-esp32 node from WiFi to wired Ethernet using ESP32-S3 + WIZ850io (W5500).
Results: avg. ping < 1 ms / iperf TCP ~40 Mbps / 0% packet loss over 30-minute topic echo test

mROS2 is a lightweight ROS2 stack from Japan's NAIST group, while micro_ros_arduino is the official implementation from the OSRF/micro-ROS organization — the standard in the ROS 2 ecosystem. In short:

• mROS2 + W5500 → already validated, lightweight but not the ROS 2 ecosystem standard
• Official micro-ROS + WIZnet → an unclaimed gap, with higher impact because it uses the standard ROS 2 middleware (Micro XRCE-DDS)

maker.wiznet.io — ROS 2 / micro-ROS Project Roundup

A categorized list of ROS 2 and micro-ROS related projects published on maker.wiznet.io.

🤖 micro-ROS + WIZnet Direct Integration

📦 ROS 1 / rosserial + WIZnet

📊 Summary Comparison

Conclusion: No project on maker.wiznet.io has yet fully implemented official micro-ROS with WIZnet Ethernet transport. The mROS2 (unofficial stack) + W5500 combination is the only prior art with validated performance data. Implementing and publishing a WIZnet wired Ethernet transport for the official micro-ROS ecosystem remains a first-mover opportunity.

Summary

micro_ros_arduino is currently the most standard and widely adopted Arduino implementation of micro-ROS, connecting small MCUs with only tens of kilobytes of RAM to the full ROS 2 ecosystem. A clear technical path exists to connect WIZnet SPI Ethernet chips via the Custom Transport API, and doing so would be the first such implementation in the ecosystem.
