Ethernet for RP2350A in Minutes: WeAct RP2350A_V20 + WIZnet W5500 (SPI Hardwired TCP/IP)
Turn the WeAct RP2350A_V20 into a wired IoT node using WIZnet W5500 over SPI—fast bring-up, stable Ethernet, and simple socket-based networking.
0
Components
Hardware components
WIZnet - W5500
x 1
WeAct Studio - WeAct Studio RP2350A_V20
x 1
WIZnet - WIZnet io Library
x 1
Raspberry Pi - Raspberry Pi OS
x 1
Project description

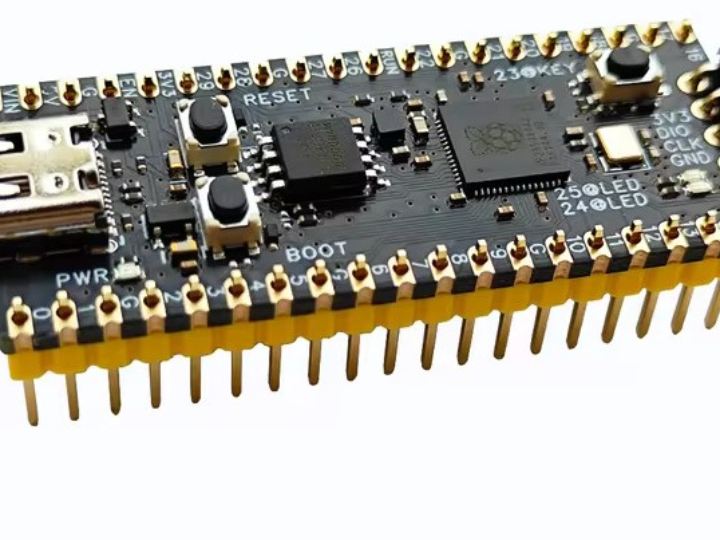

Introduction Let’s start with what we’re building. The WeAct RP2350A_V20 is a small, affordable board based on Raspberry Pi’s RP2350A, with a Pico 2-style layout and a USB-C port. But out of the box, it’s still a microcontroller board—so if you want reliable wired networking, you’ll usually add an Ethernet controller. That’s where WIZnet W5500 comes in. WIZnet Product Integration The networking block is simple and proven: RP2350A_V20 ↔ SPI ↔ WIZnet W5500 ↔ Ethernet. W5500 is a “hardwired TCP/IP” Ethernet controller, so you don’t need to implement the full network stack in your MCU firmware…
